   Throttle
Stabilizer/Anti-Surge Springs. Lightweight spring connects between throttle
and governor levers to remove free play (looseness) in linkage connections
and reduce erratic engine behavior due to throttle flutter for a smoother
running engine and reduce wear to throttle shaft. Can be used on virtually
any Briggs & Stratton, Kohler K-series, Magnum or Command single- or
twin-cylinder cast iron or aluminum block engine. A must for a generator,
welder or 4,000 RPM± governed competition pulling engine. With a governed
pulling engine, throttle flutter causes the engine RPM to momentarily spike,
which will cause the rear
tires to lose traction (temporary jerk), resulting in a possible failed
pull. If a small hole isn't already present in each lever close to linkage
connection, may need to drill a small hole to install spring.
-
2-7/16" overall length. High Quality Aftermarket Throttle Stabilizer/Anti-Surge
Spring. $5.00 each, plus shipping & handling.
-
2-1/8" overall length. OEM Kohler part # 230117-S. $8.23 each, plus
shipping & handling.
-
4-1/8" overall length. OEM Briggs & Stratton part #'s 260478, 690545.
$9.00 each, plus shipping & handling.
|
 V-Shaped/Coiled Governor
Springs to regulate and maintain engine speed. Each has hook on each end.
-
Designed for various Kohler engine models K141, K160/K161, K181 and M8 used
for general lawn and garden use. OEM Kohler part # 232617-S. $7.20
each, plus shipping & handling.
-
Designed specifically for Kohler engine model K181 used with a generator.
OEM Kohler part # 232619-S. $15.80 each, plus shipping & handling.
|
 V-Shaped/Coiled Governor
Spring to regulate and maintain engine speed. Designed for various Kohler
engine models K181 and M8. Has hook on one end and "Z" bend on other end.
-
OEM Kohler part # 41 091 02-S. $21.91 each, plus shipping & handling.
|
 Governor Spring to regulate
and maintain engine speed. Designed for newer Kohler engine model K181's
with specification numbers 301000-301045, and various Kohler Magnum engine
model M8's with specification numbers 301500-301651.
-
OEM Kohler part # 41 089 12-S. $7.60 each, plus shipping & handling.
|
 26 Coil Governor Spring
to regulate and maintain engine speed. Designed for most Kohler engine models
K241/M10, K301/M12, K321/M14, K341/M16 and K361. Used in Cub Cadet models:
70, 71, 72, 73, 86, 100, 102, 104, 105, 106, 107, 108, 109, 122, 123, 124,
125, 126, 127, 128, 129, 149, 169, 1050, 1204, 1210 and 1211. Also can be
used on various Kohler engine models KT17, KT17 Series II, KT19, KT19 Series
II, M18 and M20. All these engines listed use the same governor gear assembly.
2-5/8" overall length (outside hook to outside hook). Replaces discontinued
23 coil short length governor spring, Kohler part # 45 091 01-S.
-
OEM Kohler part # 235496-S. $11.50 each, plus shipping & handling.
 26 Coil Extended Length Governor
Spring to regulate and maintain engine speed. Designed for various Kohler
K-series and Magnum engine models with the following specification numbers:
K301-47766, K341-71207, 71209, 71232; M10-461504, 461505, 461512, 461513,
461526, 461530, 461531, 461532, 461539, 461542, 461543, 461546, 461551;
M12-471504, 471505, 471506, 471507, 471553, 471554, 471555, 471569, 471571
471572, 471576, 471583, 471585, 471589; M14-601504, 601505, 601553; M16-711504,
711505, 711506, 711507, 711534, 711535, 711551, 711552, 711558, 711577, 711585.
Used with an air compressor, concrete saw or sprayer. 5-5/8" overall length
(outside hook to outside hook). Replaces discontinued 23 coil extended length
governor spring, Kohler part # 47 089 07-S.
-
OEM Kohler part # 47 089 09-S. $6.25 each, plus shipping & handling.
 34 Coil Extended Length Governor
Spring to regulate and maintain engine speed. Designed for Kohler K-series
AQS (Quiet Line) and Magnum engine models with the following specification
numbers: K241-46717, 46720, 46734, 46740, 46753, 46754, 46763, 46785; K301-47541,
47542, 47581, 47585, 47606, 47620, 47634, 47640, 47643, 47673, 47732, 47764,
47795, 47805; K321-60244, 60269, 60270, 60291, 60293, 60311, 60312, 60318,
60320, 60321, 60343, 60374, 60397, 60402, 60411, 60413, 60415; K341-71147,
71148, 71164, 71167, 71169, 71172 71176, 71198, 71203, 71221, 71222, 71227,
71242, 71243, 71270, 71275, 71338, 71355, 71356, 71366, 71369; M10-461509,
461521, 461533, M12-471514; 471516, 471527, 471528, 471536, 471538, 471545,
471546, 471549, 471580, 471581, 471584; M14-601513, 601524, 601525, 601528,
601534, 601538, 601540, 601542, 601558, 601559, 601561; M16-711513, 711514,
711521, 711523, 711527, 711528, 711529, 711532, 711536, 711537, 711539, 711544,
711546, 711555, 711560, 711562, 711563, 711568, 711570, 711575, 711576, 711580,
711593. Used in Cub Cadet models: 680, 1000, 1200, 1210, 1250, 1282, 1450,
1650, and John Deere AQS (Quiet Line) engines. Most common for general lawn
and garden use. 8" overall length (outside hook to outside hook).
-
OEM Kohler part # 47 091 01-S. $13.25 each, plus shipping & handling.
|
| Throttle Linkages
Ê | Top of
Page |
 Nylon Bushing for throttle
link used on Kohler engine models K181, M8, MV16, MV18, MV120 and certain
aluminum block Kohler engines with 3/16" hole in governor and throttle levers.
OEM Kohler part # 25 158 08-S. $1.49 each, plus shipping & handling.
  Nylon Bushings for throttle link used on Kohler engine models
K241/M10, K301/M12, K321/M14, K341/M16 and K361 with Carter or Kohler #26,
#28, #30 or Walbro WHG #52, #60, #64 carburetors with 3/16" hole in governor
lever and hole on throttle lever and without ball integrated with throttle
lever. Each also fits certain aluminum block Kohler engines with 3/16" hole
in governor and throttle levers. The two bushings below are identical except
for the color.
-
Black Bushing. OEM Kohler part # 25 158 11-S. $1.42 each, plus shipping
& handling.
-
Translucent Bushing. OEM Kohler part # 47 158 07-S. $1.82 each, plus
shipping & handling.
|
 Throttle Link. Fits Kohler
flathead cast iron block K-series engine model K90/K91 with .080" hole in
governor and throttle levers. 1-5/8" overall length. OEM Kohler part # 220380-S.
$11.61 each, plus shipping & handling. |
 Throttle Link. Fits Kohler
engine models K141, K160/K161, K181 and certain Magnum M8 with .080" hole
in governor and throttle levers. 2-1/2" overall length. OEM Kohler part #
230078-S. $11.68 each, plus shipping & handling. |
 Throttle Link. Fits Kohler
flathead cast iron block Magnum engine model M8 with 3/16" hole in governor
and throttle levers. 2-1/2" overall length. OEM Kohler part # 25 079 01-S.
$4.53 each, plus shipping & handling. |
 New Style Throttle Link.
Fits Carter or Kohler and Walbro carburetors used on Kohler engine models
K241/M10, K301/M12, K321/M14, K341/M16 flatheads, K361 with 3/16" hole in
governor lever and ball on throttle lever. Fits Carter or Kohler #26, #28,
#30 or Walbro WHG #52, #60, #64 carburetors without ball integrated with
throttle lever. 2-3/4" overall length. Link. 2-7/8" overall length. OEM Kohler
part # 47 079 11-S. $2.79 each, plus shipping & handling. |
 New Style Throttle Linkage

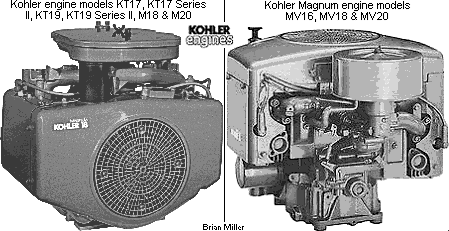

Kit. Fits Kohler Magnum opposed (flathead) twin cylinder engine models KT17,
KT17 Series II, KT19, KT19 Series II, M18 and M20 with 3/16" hole in governor
and throttle levers. Includes two nylon bushings. Most commonly used linkage
on these model engines.
-
OEM Kohler part # 52 079 11-S. $14.00 each, plus shipping & handling.
|
 Throttle Linkage Push-On
Retaining Nuts/Clips. Fits Kohler engine models MV16, MV18, MV120 and certain
aluminum block Kohler engines with .080" diameter throttle linkages. Discontinued
from Kohler. Replaces Kohler part # 25 141 03-S. NOTE: These parts are
very tiny. Use caution when handling.
-
$1.00 each, plus shipping & handling.
|
 3/16" E-Clip (Retainer) for
Early Style Throttle Rod (Linkage) used on Kohler engine models K241, K301,
K330/K331, K321, K341 and K361 with early style throttle link/rod.
-
High quality aftermarket. .25¢ each, plus shipping & handling.
-
OEM Kohler part # 235278-S. $3.66 each, plus shipping & handling.
|
 Early Style Throttle Rod
(Linkage). Fits Kohler engine models K241, K301, K330/K331, K321, K341 and
K361. OEM Kohler part # 235277-S.
-
Used and in excellent condition. $10.00 each, plus shipping &
handling. (When available.)
-
New. $21.84 each, plus shipping & handling.
|
 New 3/16" Throttle Ball Joint
w/Integrated Ball/Threaded Stud. Fits Kohler engine models K241, K301, K330/K331,
K321, K341 and K361 with early style throttle link/rod. 10-32 UNF (fine thread)
male and female threads. Fits Carter or Kohler #26, #28, #30 and Walbro WHG
#52, #60, #64 carburetors without ball integrated with throttle lever. Can
also be used on mini rods, hot rods, race cars, etc. 10-32 UNF (fine thread)
male and female threads. NOTE: Apply motor oil inside ball joint to reduce
wear and for smoother throttle operation.
-
High quality aftermarket. $5.00 each, plus shipping & handling.
-
OEM Kohler part # 237130-S. $15.55 each, plus shipping & handling.
|
 Early Style Throttle Quick
Disconnect/Snap-On Ball Joint Body. Fits Carter or Kohler #26, #28, #30 and
Walbro WHG #52, #60, #64 carburetors with ball on throttle lever. Can also
be used on mini rods, hot rods, race cars, etc. 10-32 UNF (fine thread) female
threads and accepts 1/4" diameter ball. NOTE: Apply motor oil inside ball
joint body to reduce wear and for smoother throttle operation. Discontinued
from Kohler. L Replaces Kohler part # 45 208
03-S.
-
High quality aftermarket. $8.50 each, plus shipping & handling.
|
 Throttle Ball w/Threaded
Stud for Quick Disconnect/Snap-On Ball Joint Body above
È used on Kohler engine models K241,
K301, K321, K341 and K361. . Fits Carter or Kohler #26, #28, #30 and Walbro
WHG #52, #60, #64 carburetors with 3/16" hole in throttle lever. 1/4" diameter
ball x 10-32 UNF (fine thread) threads. Includes nut and lock washer. Can
also be used on mini rods, hot rods, race cars, etc. NOTE: Apply motor
oil inside ball joint to reduce wear and for smoother throttle operation.
Discontinued from Kohler. L Kohler part # 48
194 01-S. Replaced with Kohler part # 237130-S (ball joint w/integrated ball).
-
High quality aftermarket. $4.50 each, plus shipping & handling.
|
 Quick Disconnect/Snap-On
Throttle Ball Joint Assembly for Carter or Kohler and Walbro carburetors
used on Kohler engine models K241, K301, K321, K341 and K361 with 3/16" hole
in throttle lever. 10-32 UNF (fine thread) male and female threads. Fits
Carter or Kohler #26, #28, #30 and Walbro WHG #52, #60, #64 carburetors without
ball integrated with throttle lever. Can also be used on mini rods, hot rods,
race cars, etc. NOTE: Apply motor oil inside ball joint body to reduce
wear and for smoother throttle operation.
-
High quality aftermarket. $13.00 per assembly, plus shipping &
handling.
|
 Early Style Throttle Rod
(Linkage) with Quick Disconnect/Snap-On Ball Joint and E-Clip Assembly. Fits
Kohler engine models K241, K301, K321, K341 and K361. Commonly used on K-series
AQS (Quiet Line) engines. Assembled with Kohler part #'s 235277-S (rod),
X-70-3 (nut), 45 208 03-S (ball joint body) and 235278-S (e-clip). Most parts
discontinued from Kohler.
-
High quality aftermarket. $20.00 per assembly, plus shipping &
handling.
|
 Snap-On Throttle/Choke Cable
Clip (Clamp). Use to secure throttle or choke cable conduit to extended OEM
Kohler angled bracket on various Kohler engine models K141, K161, K181, K241,
K301, K321, K341, M10, M12, M14, M16, K482, K532 and K582. OEM Kohler part
# 235603-S. $4.80 each, plus shipping & handling. |
  Dual Conduit Throttle/Choke Cable Clamps. Can be used instead
of clamp above for better security. Use to secure one or two 3/16" or 7/32"
diameter cable conduit(s) to throttle or choke bracket. Each made of heavy
gauge zinc-plated steel.
-
High quality aftermarket clamp only. Requires 3/16" mounting screw. Replaces
Briggs and Stratton part #'s 22372 and 692179. $1.50 each, plus shipping
& handling.
-
High quality aftermarket clamp with 3/16" screw, nut and split lock washer.
Clamp replaces Briggs and Stratton part #'s 22372 and 692179. $2.00
each, plus shipping & handling.
-
Clamp only. Requires 3/16" mounting screw. OEM Briggs and Stratton part #'s
22372 and 692179. $3.00 each, plus shipping & handling.
|
  Loop-Type Cable/Wire/Hose Clamps. Use to secure throttle or
choke cables, or for safe routing of electrical wire(s), battery cable, small
remote fuel primer hose or bundle of wires along frame. Each requires 3/16"
mounting screw.
-
3/16" Loop Size. Our part # 03-249. $1.00 each, plus shipping &
handling.
-
7/32" Loop Size. Our part # 03-2701. $1.00 each, plus shipping &
handling.
-
Dual 7/32" Loop Size. Originally used for securing Kohler alternator wires
to bearing plate. OEM Kohler part # X-728-1-S. $1.38 each, plus shipping
& handling.
|
 Solid Throttle Wire/Stranded
Throttle Cable Swivel Kits. Use to secure solid throttle wire to speed control
bracket for a stock/governed engine or to secure stranded throttle cable
to throttle lever on carburetor for a competition pulling engine. Each kit
includes wire swivel, screw and friction washer, and require a 15/64" / 6mm
hole.
-
High quality aftermarket. Replaces Kohler part # 48 755 10-S. $3.00
per kit, plus shipping & handling.
-
OEM Kohler part # 48 755 10-S. $13.53 per kit, plus shipping &
handling.
|
 Speed Control Brackets.
Each fits various 10-16hp Kohler engines, depending on application.
-
Bracket without adjustment yoke. OEM Kohler part # 235086-S. $4.25
each, plus shipping & handling.
-
Bracket with adjustment yoke. OEM Kohler part # 236413-S. $10.05 each,
plus shipping & handling.
|
 Universal-Fit Replacement
Choke or Throttle Control Knob/Handle. Made of durable plastic. Replace missing
knob/handle for more comfortable operation of the in-dash or panel-mounted
choke or throttle cable control. Push-on or use small hammer to install.
-
$1.50 each, plus shipping & handling.
|
  Lever-Action Solid Wire Remote Throttle Control Cable Assemblies.
Side mount. Fits Cub Cadet models 70, 71, 72, 73, 100, 102, 104, 122, 123,
124, 125, 126, 127 and 147.
-
High quality aftermarket. All heavy duty metal construction. Very close to
OEM. Inner wire length: 41-1/4"; Conduit length: 36-1/2"; Wire travel: 1-3/4".Our
part # 8626. $29.00 each, plus shipping & handling.
-
OEM Cub Cadet part # IH-384883-R93. $51.00 each, plus shipping &
handling.
  Lever-Action
Solid Wire Remote Throttle Control Cable Assemblies. Panel mount. Fits virtually
all wide and spread frame Cub Cadet garden tractors Cub Cadet garden tractors
Cub Cadet models 86, 108, 109, 128, 129, 149, 169, 800, 1000, 1100, 1200,
1250, 1450 and 1650.
-
High quality aftermarket. All heavy duty metal construction. Very close to
OEM. Inner wire length: 28-7/8"; Conduit length: 26-7/8"; Wire travel: 1-3/4".
Our part # 227. $29.00 each, plus shipping & handling.
-
OEM Cub Cadet part # IH-126465-C2. $41.55 each, plus shipping &
handling.
 Throttle Control Cable Assembly.
Panel mount. Fits Cub Cadet models 582, 1050, 1204, 1210, 1211, 1282, 1710,
1712, 1806, 1810, 1811, 1812, 1872 and 2072.
-
OEM Cub Cadet part # 746-3002. $44.20 each, plus shipping & handling.
|
 Push/Pull Solid Wire Remote
Choke Control Cable Assemblies. Fits all narrow frame Cub Cadet garden tractors.
-
High quality aftermarket. Durable plastic-coated metal conduit to resist
rust. Very close to OEM. Inner wire length: 42-1/4"; Conduit length: 40-1/2";
Wire travel: 2". Our part # 72-1196. $20.00 each, plus shipping &
handling.
-
OEM Cub Cadet part # IH-384884-R92. $44.00 each, plus shipping &
handling.
 Push/Pull Solid Wire Remote
Choke Control Cable Assemblies. Fits all wide and spread frame Cub Cadet
garden tractors.
-
High quality aftermarket. Durable plastic-coated metal conduit to resist
rust. Very close to OEM. Inner wire length: 35"; Conduit length: 43"; Wire
travel: 1-1/2". Our part # 10748. $20.00 each, plus shipping &
handling.
-
OEM Cub Cadet part # 946-3011. $35.75 each, plus shipping & handling.
 Choke Control Cable Assembly.
Fits Cub Cadet models 482, 682, 782, 784, 1710, 1711, 1712, 1806, 1810, 1811,
1812 and 2072.
-
OEM Cub Cadet part # 746-3001. $47.55 each, plus shipping & handling.
Choke Cable Control Assembly. Fits: 580, 582, 1604 and 1606. OEM Cub Cadet
part # 746-3004. Discontinued from Cub Cadet. |
  Universal High Quality Foot/Gas Pedal Kit. Can be used
on Competition Pulling Tractors, Go-Karts, Recreational Vehicles, etc. Kit
includes 48" (commonly used) sliding stranded inner cable x 43" metal conduit
housing and housing clamp. $46.00 each, plus shipping & handling.
Heavy Duty High Quality Replacement Throttle Control Cable Assemblies
for Universal Foot/Gas Throttle Pedal Assembly.
-
48" inner stranded wire cable x 43" metal conduit housing. $5.00 each,
plus shipping & handling.
-
53" inner stranded wire cable x 48" metal conduit housing. $5.00 each,
plus shipping & handling.
-
60" inner stranded wire cable x 55" metal conduit housing. $5.00 each,
plus shipping & handling.
-
100" inner stranded wire cable x 90" metal conduit housing. $7.50
each, plus shipping & handling.
|
 Professional Remote
Spring-Return Cable-Operated Foot Pedal Throttle Control Kit for Governed
Stock Competition Pulling Tractors, Go-Karts, Recreational Vehicles, Snowmobiles,
King Midget micro cars (Kohler engines in King Midget cars
originally come from the factory with no governor components; governor components
must be installed in engine for this kit to work), etc. with a 10-16hp Kohler
engine. If governored RPMs is set correctly (4,000 maximum), this setup will
prevent over-revving of the engine, which could cause connecting rod breakage,
and possibly damage or destroy the engine block. NOTE: Hole in OEM throttle
swivel w/locking screw may need to be enlarged to 5/64" to accommodate inner
stranded cable. An ingenious concept by Brian Miller.
-
Kit Without Sliding Control Cable Assembly. Includes: extension spring, extended
bolt w/jam nut (to replace OEM cam gear cover bolt as shown in picture) and
throttle cable clamp w/sheet metal screw (fastens on flywheel shroud).
$7.00 each, plus shipping & handling.
-
Kit With Sliding Control Cable Assembly. Includes everything listed above,
plus durable/high quality 43" length outer metal housing/48" length inner
stranded wire control cable with loop on one end for fastening to foot pedal.
$12.00 each, plus shipping & handling.
|
Thrust
Washers for Governor Gear Assemblies. A thrust washer is required to
prevent the governor gear from wearing against the engine block when the
governor gear is under full pressure from the engine running at higher RPMs.
Many people are not aware of this small, thin washer because it may appear
to be part of the engine block, and it usually falls out and gets lost while
cleaning inside the block. IMPORTANT: Due to high RPM and pressure of
the governor gear upon engine start-up, before installing, lubricate the
stub shaft and thrust washer with motor oil, automotive chassis lube or wheel
bearing grease to prevent the governor gear from wearing until the crankcase
oil reaches these areas.
-
Heat-Treated, Hardened, High Carbon Steel Thrust Washers. Much harder than
a grade 8 flat washer. Recommended and suitable with a nylon governor gear
assembly. Dimensions: .032" thickness x .380" I.D. x .686" O.D.
-
High quality aftermarket. Replaces Kohler part # 237022-S. $1.00 each,
plus shipping & handling.
-
Heat-Treated, Hardened, High Carbon Steel Thrust Washer. OEM Kohler part
# 237022-S. $5.00 each, plus shipping & handling.
-
Bronze Thrust Washers. Harder than cast iron. Recommended and suitable with
a cast iron governor gear assembly. Dimensions: .063" thickness x .380" I.D.
x .757" O.D.
-
High quality aftermarket. Replaces Kohler part # X-25-67-S. $1.00
each, plus shipping & handling.
-
Bronze Thrust Washer. OEM Kohler part # X-25-67-S. $3.00 each, plus
shipping & handling.
|
 Governor Gear
Stub Shafts. Fits Kohler engine models K141, K160/K161, K181 and M8. Dimensions
of each part below: 3/8" diameter x .625" length. Each is press-fit into
block. NOTE: Drive in the stub shaft until .345" (11/32") protrudes from
the block.
-
High quality aftermarket. Precision ground, hardened, heat-treated alloy
steel. $10.00 each, plus shipping & handling.
-
OEM Kohler part # 230125-S. $24.53 each, plus shipping & handling.
Governor Gear Stub Shafts. Fits Kohler engine models K241/M10, K301/M12,
K321/M14, K341/M16, K361 and all KT-series and Magnum opposed (flathead)
twin cylinder engines. Dimensions: 3/8" diameter x 7/8" length. Each is press-fit
into block. NOTE: Drive in each stub shaft until .345" (11/32") protrudes
from the block.
-
High quality aftermarket. Precision ground, stainless steel material.
$10.00 each, plus shipping & handling.
-
OEM Kohler part # 235125-S. $51.41 each, plus shipping & handling.
|
 1-1/8" Steel
Welch Plugs to block access to governor gear stub shaft. Concave/dish-shaped,
not cup-shaped. Expands and flattens out with medium size ball peen hammer
when installed in counterbore hole with
clear RTV silicone adhesive sealant.
-
High quality aftermarket. $1.00 each, plus shipping & handling.
-
OEM Kohler part # X-230-11-S. $1.57 each, plus shipping & handling.
|
 Governor Cross
Shafts. Fits Kohler engine models K141, K160/K161 and K181/M8. New shaft
includes thrust washer. Steel spacer for this shaft (part # 25 112 17-S)
no longer available from Kohler. The lever on these rarely break off. NOTE:
Before installing, apply clean motor oil, gear oil or lubricating grease
on shaft for smooth governor action and less wear to shaft and/or bushing.
OEM Kohler part # 230540-S.
-
Used and not welded. $20.00 each, plus shipping & handling.
-
Used and welded. $25.00 each, plus shipping & handling.
-
New and not welded. $57.65 each, plus shipping & handling.
-
New and welded. $62.00 each, plus shipping & handling.
 Steel Spacer Washer. Fits all
Kohler engine models K141, K160/K161 and K181/M8. Used on governor cross
shaft above. Butts against governor cross shaft bushing (below) to maintain
proper alignment of lever on cross shaft with button on governor gear.
-
High quality aftermarket. .50¢ each, plus shipping & handling.
-
OEM Kohler part # X-25-58-S. $2.45 each, plus shipping & handling.
|
 Governor Cross
Shafts. Fits Kohler engine models K241/M10, K301/M12, K321/M14, K341/M16
and K361. New shaft includes steel spacer. NOTE: The lever on these sometimes
break off. So it'll be a good idea to weld the lever to the shaft. And the
entire engine must be completely disassembled to replace this part. And before
installing, apply clean motor oil, gear oil or lubricating grease on shaft
for smooth governor action and less wear to shaft and/or bushing. Replaces
discontinued Kohler part # 237455 (cross shaft with groove and E-clip instead
of spacer to the right). OEM Kohler part # A-235256-S.
-
Used and not welded. $10.00 each, plus shipping & handling.
-
Used and welded. $15.00 each, plus shipping & handling.
-
New and not welded. $29.75 each, plus shipping & handling.
-
New and welded. $35.00 each, plus shipping & handling.
 Steel Spacer. Fits Kohler engine
models K241/M10, K301/M12, K321/M14, K341/M16 and K361. Used on governor
cross shaft above. Butts against governor cross shaft bushing (below) to
maintain proper alignment of lever on cross shaft with center button on governor
gear. Dimensions: .260" I.D. x .372" O.D. x 13/16" length.
-
High quality aftermarket. $1.00 each, plus shipping & handling.
-
OEM Kohler part # 25 112 17-S. $6.10 each, plus shipping & handling.
|
  Governor Cross Shaft Bushings with a rubber lip oil seal or
snug-fitting neoprene rubber O-ring installed in machined counterbore to
prevent dust and dirt/debris from wearing the bushing and/or shaft and prevent
messy film of oil on outside of engine. Seal fits snug in bushing and on
shaft, and has no effect with operation of governor whatsoever. WHY THIS
IS IMPORTANT: Vacuum within the engine crankcase created by the upward stroke
of the piston draws in air, along with dust, dirt/debris through the
bushing/shaft, and then pressure created by the downward stroke of the piston
blows out a fine mist of oil through the bushing/shaft. Overtime, the dust,
dirt/debris cause the bushing (and sometimes the shaft, too) to wear, which
also leaves an oily mess on the outside of the engine. IMPORTANT: When removing
the old bushing, use caution not to drop the governor cross shaft down inside
the crankcase! And before installing the new bushing, apply clean motor oil,
gear oil or lubricating grease on the shaft for less wear to the shaft, seal
and/or bushing, and for smoother throttle action. An ingenious and innovative
concept by Brian Miller, because nobody else advertise this improved product
or offer this type of service.
 Governor Cross Shaft Bushing
with 7/32" hole. Fits Kohler engine models K90/K91, K141, K160/K161 and K181
w/specification # 30100-30848 and various early M8 engines with V-shaped/coiled
governor spring behind bushing. NOTE: When ordering, please specify
engine model and specification numbers. Discontinued OEM Kohler part
# 230476-S.
-
Install snug-fitting neoprene rubber O-ring oil seal in YOUR governor cross
shaft bushing. $5.00 for O-ring and labor, plus return shipping &
handling.
-
Repair worn hole in YOUR governor cross shaft bushing with a new metal sleeve
bushing and install snug-fitting neoprene rubber O-ring seal. $10.00
each for parts and labor, plus shipping & handling.
-
OUR used governor cross shaft bushing machined with snug-fitting rubber O-ring
oil seal installed. $20.00 each, plus shipping & handling. (When
available.)
 Governor Cross Shaft Bushing
with 7/32" hole. Fits Kohler engine model K181 w/specification # 301000-301045,
and various later M8 engines with coiled extension governor spring.
NOTE: When ordering, please specify engine model and specification
numbers. OEM Kohler part # 41 158 02-S.
-
Install snug-fitting neoprene rubber O-ring oil seal in YOUR governor cross
shaft bushing. $5.00 for O-ring and labor, plus return shipping &
handling.
-
Repair worn hole in YOUR governor cross shaft bushing with a new metal sleeve
bushing and install snug-fitting neoprene rubber O-ring seal. $10.00
each for parts and labor, plus shipping & handling.
-
New governor cross shaft bushing only. OEM Kohler part # 41 158 02-S.
$8.05 each, plus shipping & handling.
-
New machined governor cross shaft bushing with snug-fitting rubber O-ring
oil seal installed. $12.25 each, plus shipping & handling.
 Governor Cross Shaft Bushing
with 1/4" hole. Fits Kohler engine models K241/M10, K301/M12, K321/M14, K341/M16
and K361. Discontinued OEM Kohler part # 235476-S.
-
Install rubber lip oil seal or snug-fitting neoprene rubber O-ring in YOUR
governor cross shaft bushing. $5.00 for seal and labor, plus return
shipping & handling.
-
Repair worn hole in YOUR governor cross shaft bushing with a new metal sleeve
bushing and install rubber lip oil seal or snug-fitting neoprene rubber O-ring.
$10.00 each for parts and labor, plus shipping & handling.
-
New rubber lip oil seal only (customer machines own bushing for installation
of oil seal). $3.00 each, plus shipping & handling.
-
OUR used governor cross shaft bushing with rubber lip oil seal or snug-fitting
neoprene rubber O-ring installed. $20.00 each, plus shipping &
handling. (When available.)
|
 Nylon Governor
Gear Assemblies with Symmetrical Flyweights. Designed for general lawn and
garden work. Also suitable for a 4,000± RPM competition pulling engine.
Fits Kohler engine models K141, K160/K161, K181/M8, K241/M10, K301/M12, K321/M14,
K341/M16, K361, KT17, KT17 Series II, KT19, KT19 Series II, MV16, M18, MV18,
M20 and MV20. IMPORTANT: Due to high RPM and pressure of the governor
gear upon engine start-up, before installing, lubricate the stub shaft and
thrust washer with motor oil, automotive chassis lube or wheel bearing grease
to prevent the governor gear from wearing until the crankcase oil reaches
these areas.
-
Used and in excellent condition. $35.00 each, plus shipping &
handling. (When available.)
-
New. OEM Kohler part # A-235743-S. $53.20 each, plus shipping &
handling.
 Nylon Governor Gear Assembly
with Offset Flyweights. Recovers engine RPM quickly when under a load and
maintains engine RPM at a more steady pace. Designed specifically for Kohler
engine models K241/M10, K301/M12, K321/M14 and K341/M16 used with an air
compressor, generator and/or welding unit. Ideal for use in a 4,000±
RPM competition pulling engine. IMPORTANT: Due to high RPM and pressure
of the governor gear upon engine start-up, before installing, lubricate the
stub shaft and thrust washer with motor oil, automotive chassis lube or wheel
bearing grease to prevent the governor gear from wearing until the crankcase
oil reaches these areas.
-
New. OEM Kohler part # A-236294-S. $154.70 each, plus shipping &
handling.
 Cast Iron Governor Gear Assembly
with Symmetrical Flyweights. Recommended for high RPM or
wide
open throttle competition pulling engines. Will not become distorted
or explode at high RPMs or at wide open throttle like the nylon governor
gears sometimes do. (Kohler never made a steel governor gear.) Fits Kohler
engine models K141, K160/K161, K181/M8, K241/M10, K301/M12, K321/M14, K341/M16,
KT17/KT17 Series II, KT19/KT19 Series II, MV16, M18, MV18, M20 and MV20.
IMPORTANT: Due to high RPM and pressure of the governor gear upon engine
start-up, before installing, lubricate the stub shaft and thrust washer with
motor oil, automotive chassis lube or wheel bearing grease to prevent the
governor gear from wearing until the crankcase oil reaches these areas.
-
Used and in excellent condition. Discontinued OEM Kohler part # A-237031-S.
$75.00 each, plus shipping & handling. (When available. These
are hard to find nowadays because not many were made.)
|
 Governor Stop Pin. Fits
all Kohler K-series and Magnum single- and twin-cylinder engines. Retains
governor gear assembly on stub shaft. Replace worn or damaged governor stop
pin.
-
Used and in excellent condition. $3.00 each, plus shipping & handling.
(When available.)
-
New. OEM Kohler part # 231355-S. $6.05 each, plus shipping & handling.
|
 Governor Cross Shaft End
Bearing (Tiny Steel Bushing). Fits all early Kohler K-series single cylinder
engines, except later K-series and all Magnum engines with machined blind
hole in block for end of governor cross shaft. OEM Kohler part # 234866-S.
-
Used and in excellent condition. $3.00 each, plus shipping & handling.
(When available.)
-
New. $5.35 each, plus shipping & handling.
|
 Kohler engine models
K90/K91 Ring Sets, and Piston with Rings (includes wrist pin, retaining clips).
Rings made of high grade cast iron for durability. IMPORTANT:
Check ring end gaps and piston thrust face for proper clearance
before installing to prevent rings from galling the cylinder wall when hot
and piston from seizing in the cylinder when hot.
Click or tap here for proper break-in (wear-in)
oils and procedure for rebuilt engines.
-
STD Size Ring Sets Only. Fits K90/K91 engines with 2.375" cylinder bore.
Also replaces Briggs and Stratton part #'s 294232, 295657 (3hp), and Clinton
part #'s 233112500, 233122500.
-
High quality aftermarket. Same quality as OEM Kohler part # 220801-S.
$13.00 per set, plus shipping & handling.
-
OEM Kohler part # 220801-S. $50.00 per set, plus shipping & handling.
-
STD Size Piston with Rings Assembly. Fits K90/K91 engines with 2.375" cylinder
bore. OEM Kohler part # 46 874 01-S. $182.85 per set, plus shipping
& handling.
-
.003" Oversize Piston and Ring Set. Fits K90/K91 engines with 2.378" cylinder
bore. OEM Kohler part # 46 874 02-S. $213.50 per set, plus shipping
& handling.
-
.010" Oversize Ring Set Only. Fits K90/K91 engines with 2.385" cylinder bore.
OEM Kohler part # 220802-S. Also replaces Briggs and Stratton part # 294224
(NLA). $64.00 per set, plus shipping & handling.
-
.010" Oversize Piston with Rings Assembly. Fits K90/K91 engines with 2.385"
cylinder bore. OEM Kohler part # 46 874 03-S. $213.50 per set, plus
shipping & handling.
-
.020" Oversize Ring Set Only. Fits K90/K91 engines with 2.395" cylinder bore.
OEM Briggs and Stratton part # 294225. Also replaces Kohler part # 220803-S
(NLA). $60.00 per set, plus shipping & handling. .020" oversize
(2.395" cylinder bore. OEM Kohler part # 46 874 04-S. $213.50 per
set, plus shipping & handling.
-
.030" Oversize Ring Sets Only. Fits K90/K91 engines with 2.405" cylinder
bore.
-
OEM Briggs and Stratton part # 294226. $60.00 per set, plus shipping
& handling.
-
OEM Kohler part # 220804-S. $81.80 per set, plus shipping & handling.
-
.030" Oversize Piston with Rings. Fits K90/K91 engines with 2.405" cylinder
bore. OEM Kohler part # 46 874 05-S. $213.50 per set, plus shipping
& handling.
|
Kohler engine models
K141, K160 and early K161 Ring Sets, and Piston and Ring Sets (includes wrist
pin and retaining clips). These are for the small 2-7/8" size cylinder bore.
Cylinder can be bored to 2-15/16", and the bigger piston and rings below
can be used. Rings made of high grade cast iron for durability. IMPORTANT:
Check ring end gaps and piston thrust face for proper clearance
before installing to prevent rings from galling the cylinder wall when hot
and piston from seizing in the cylinder when hot.
Click or tap here for proper break-in (wear-in)
oils and procedure for rebuilt engines.
-
STD Size Ring Set Only. Fits K141, K160 and early K161 engines with 2.875"
cylinder bore. Discontinued OEM Kohler part # 231424-S. $48.00 per
set, plus shipping & handling. (New Old Stock - When available.)
-
STD Size Piston and Ring Set. Fits K141, K160 and early K161 engines with
2.875" cylinder bore. OEM Kohler part # 41 874 01-S. $153.90 each,
plus shipping & handling.
-
.010" Oversize Ring Set Only. Fits K141, K160 and early K161 engines with
2.885" cylinder bore. OEM Kohler part # 231425-S. $79.80 per set,
plus shipping & handling.
-
.010" Oversize Piston and Ring Set. Fits K141, K160 and early K161 engines
with 2.885" cylinder bore. OEM Kohler part # 41 874 02-S. Discontinued
from Kohler. L
-
.020" Oversize Ring Set Only. Fits K141, K160 and early K161 engines with
2.895" cylinder bore. OEM Kohler part # 231426-S. $82.35 per set,
plus shipping & handling.
-
.020" Oversize Piston and Ring Set. Fits K141, K160 and early K161 engines
with 2.895" cylinder bore. OEM Kohler part # 41 874 03-S. $197.80
each, plus shipping & handling.
-
.030" Oversize Ring Set Only. Fits K141, K160 and early K161 engines with
2.905" cylinder bore. OEM Kohler part # 231427-S. $82.35 per set,
plus shipping & handling.
-
.030" Oversize Piston with Rings Assembly. Fits K141, K160 and early K161
engines with 2.905" cylinder bore. OEM Kohler part # 41 874 04-S.
Discontinued from Kohler. L
|
 Kohler K-series and Magnum engine models K141, K160/K161,
K181 and M8 Ring Sets, and Piston and Ring Sets (includes wrist pin and retaining
clips). These are for the bigger 2-15/16" size cylinder bore. Rings made
of high grade cast iron for durability. IMPORTANT: Check ring
end gaps and piston thrust face for proper clearance before installing to
prevent rings from galling the cylinder wall when hot and piston from seizing
in the cylinder when hot. Click or tap here for
proper break-in (wear-in) oils and procedure for rebuilt engines.
-
STD Size Ring Sets Only. Fits K141, K160/K161, K181 and M8 engines with 2.938"
cylinder bore.
-
Fits K-series cast piston. High quality aftermarket. Same quality as OEM
Kohler part # 232575-S. $16.00 per set, plus shipping & handling.
-
Fits K-series cast piston. OEM Kohler part # 232575-S. $60.10 per
set, plus shipping & handling.
-
Fits Magnum Mahle forged piston. OEM Kohler part # 41 108 01-S. $61.50
per set, plus shipping & handling.
-
STD Size Pistons and Ring Sets. Fits K141, K160/K161, K181 and M8 engines
with 2.938" cylinder bore.
-
High quality aftermarket. K-series cast piston and rings. Same quality as
OEM Kohler part # 41 874 05-S. $44.00 each, plus shipping & handling.
-
K-series cast piston and rings. OEM Kohler part # 41 874 05-S. $181.45
each, plus shipping & handling.
-
Magnum Mahle forged piston and rings. OEM Kohler part # 41 874 10-S.
$156.40 each, plus shipping & handling.
-
.003" Oversize Piston with Rings Assembly. Fits K141, K160/K161, K181 and
M8 engines with 2.941" cylinder bore.
-
K-series cast piston and rings. OEM Kohler part # 41 874 06-S. $193.30
each, plus shipping & handling.
-
Magnum Mahle forged piston and rings. OEM Kohler part # 41 874 11-S.
$151.25 each, plus shipping & handling.
-
.010" Oversize Ring Sets Only. Fits K141, K160/K161, K181 and M8 engines
with 2.948" cylinder bore.
-
Fits K-series cast piston. High quality aftermarket. Same quality as OEM
Kohler part # 232576-S. $11.00 per set, plus shipping & handling.
-
Fits K-series cast piston. OEM Kohler part # 232576-S. $54.00 per
set, plus shipping & handling.
-
Fits Magnum Mahle forged piston. OEM Kohler part # 41 108 02-S. $65.65
per set, plus shipping & handling.
-
.010" Oversize Pistons and Ring Sets. Fits K141, K160/K161, K181 and M8 engines
with 2.948" cylinder bore.
-
High quality aftermarket. K-series cast piston and rings. Same quality as
OEM Kohler part # 41 874 07-S. $40.00 each, plus shipping & handling.
-
K-series cast piston and rings. OEM Kohler part # 41 874 07-S. $181.45
each, plus shipping & handling.
-
Magnum Mahle forged piston and rings. OEM Kohler part # 41 874 12-S.
$151.10 each, plus shipping & handling.
-
.020" Oversize Ring Sets Only. Fits K141, K160/K161, K181 and M8 engines
with 2.958" cylinder bore.
-
Fits K-series cast piston. High quality aftermarket. Same quality as OEM
Kohler part # 232577-S. $30.00 per set, plus shipping & handling.
-
Fits K-series cast piston. OEM Kohler part # 232577-S. $78.80 per
set, plus shipping & handling.
-
Fits Magnum Mahle forged piston. OEM Kohler part # 41 108 03-S. $66.00
per set, plus shipping & handling.
-
.020" Oversize Pistons and Ring Sets. Fits K141, K160/K161, K181 and M8 engines
with 2.958" cylinder bore.
-
High quality aftermarket. K-series cast piston and rings. Same quality as
OEM Kohler part # 41 874 08-S. $50.00 each, plus shipping & handling.
-
K-series cast piston and rings. OEM Kohler part # 41 874 08-S. $193.45
each, plus shipping & handling.
-
Magnum Mahle forged piston and rings. OEM Kohler part # 41 874 13-S.
Discontinued from Kohler. L
-
.030" Oversize Ring Sets Only. Fits K141, K160/K161, K181 and M8 engines
with 2.968" cylinder bore.
-
Fits K-series cast piston. High quality aftermarket. Same quality as OEM
Kohler part # 232578-S. $13.00 per set, plus shipping & handling.
-
Fits K-series cast piston. OEM Kohler part # 232578-S. $78.95 per
set, plus shipping & handling.
-
Fits Magnum Mahle forged piston. OEM Kohler part # 41 108 04-S. $66.00
per set, plus shipping & handling.
-
.030" Oversize Pistons and Ring Sets. Fits K141, K160/K161, K181 and M8 engines
with 2.968" cylinder bore.
-
High quality aftermarket. K-series cast piston and rings. Same quality as
OEM Kohler part # 41 874 09-S. $41.00 each, plus shipping & handling.
-
K-series cast piston and rings. OEM Kohler part # 41 874 09-S. $188.30
each, plus shipping & handling.
-
Magnum Mahle forged piston and rings. OEM Kohler part # 41 874 14-S.
$151.25 each, plus shipping & handling.
|
Kohler K-series and Magnum
engine models K241, M10 and K482 Ring Sets, and Piston and Ring Sets (includes
wrist pin and retaining clips). (The K241, M10 and K482 engines use the
same piston and rings.) Priced per cylinder. Rings made of high
grade cast iron for durability. Compression
height is 1.63". Being the wrist pin is centered, these pistons can be
installed in either direction. IMPORTANT: Check ring end gaps
and piston thrust face for proper clearance before installing to prevent
rings from galling the cylinder wall when hot and piston from seizing in
the cylinder when hot. Click or tap here for proper
break-in (wear-in) oils and procedure for rebuilt engines.
-
STD Size Ring Sets Only. Fits K241, M10 and K482 engines with 3.250" cylinder
bore.
-
High quality aftermarket. Same quality as OEM Kohler part # 235287-S.
$22.00 per set, plus shipping & handling.
-
OEM Kohler part # 235287-S. $72.20 per set, plus shipping & handling.
-
STD Size Pistons and Ring Sets. Fits K241, M10 and K482 engines with 3.250"
cylinder bore.
-
High quality aftermarket. Same quality as OEM Kohler part # 47 874 01-S.
$43.00 each, plus shipping & handling.
-
OEM Kohler part # 47 874 01-S. $216.00 each, plus shipping & handling.
-
.003" Oversize Cast Piston with Rings Assembly. Fits K241, M10 and K482 engines
with 3.253" cylinder bore.
-
OEM Kohler part # 47 874 02-S. $221.00 each, plus shipping & handling.
-
.010" Oversize Ring Sets Only. Fits K241, M10 and K482 engines with 3.260"
cylinder bore.
-
High quality aftermarket. Same quality as OEM Kohler part # 235288-S.
$19.00 per set, plus shipping & handling.
-
OEM Kohler part # 235288-S. $83.00 per set, plus shipping & handling.
-
.010" Oversize Pistons and Ring Sets. Fits K241, M10 and K482 engines with
3.260" cylinder bore.
-
High quality aftermarket. Same quality as OEM Kohler part # 47 874 03-S.
$32.00 each, plus shipping & handling.
-
OEM Kohler part # 47 874 03-S. $216.00 each, plus shipping & handling.
-
.020" Oversize Ring Sets Only. Fits K241, M10 and K482 engines with 3.270"
cylinder bore.
-
High quality aftermarket. Same quality as OEM Kohler part # 235289-S.
$14.00 per set, plus shipping & handling.
-
OEM Kohler part # 235289-S. $95.14 per set, plus shipping & handling.
-
.020" Oversize Pistons and Ring Sets. Fits K241, M10 and K482 engines with
3.270" cylinder bore.
-
High quality aftermarket. Same quality as OEM Kohler part # 47 874 04-S.
$40.00 each, plus shipping & handling.
-
OEM Kohler part # 47 874 04-S. $247.81 each, plus shipping & handling.
-
.030" Oversize Ring Sets Only. Fits K241, M10 and K482 engines with 3.280"
cylinder bore.
-
High quality aftermarket. Same quality as OEM Kohler part # 235290-S.
$14.00 per set, plus shipping & handling.
-
OEM Kohler part # 235290-S. $95.14 per set, plus shipping & handling.
-
.030" Oversize Pistons and Ring Sets. Fits K241, M10 and K482 engines with
3.280" cylinder bore.
-
High quality aftermarket. Same quality as OEM Kohler part # 47 874 05-S.
$45.00 each, plus shipping & handling.
-
OEM Kohler part # 47 874 05-S. $247.81 each, plus shipping & handling.
|
Kohler K-series/Magnum models K301, M12 and K532 Ring Sets,
and Piston and Ring Sets (includes wrist pin and retaining clips). (The
K301, M12 and K532 engines use the same piston and rings.) Priced per
cylinder. Rings made of high grade cast iron for durability.
Compression height is 1.7". Being
the wrist pin is centered, these pistons can be installed in either direction.
IMPORTANT: Check ring end gaps and piston thrust face for proper
clearance before installing to prevent rings from galling the cylinder wall
when hot and piston from seizing in the cylinder when hot.
Click or tap here for proper break-in (wear-in)
oils and procedure for rebuilt engines.
-
STD Size Ring Sets Only. Fits K301, M12 and K532 engines with 3.375" cylinder
bore.
-
Fits K-series cast piston. High quality aftermarket. Same quality as OEM
Kohler part # 48 108 01-S. $16.00 per set, plus shipping & handling.
-
Fits K-series cast piston. OEM Kohler part # 48 108 01-S. $69.59 per
set, plus shipping & handling.
-
Fits Magnum Mahle forged piston. OEM Kohler part # 47 108 01-S. $82.17
per set, plus shipping & handling.
-
STD Size Pistons and Ring Sets. Fits K301, M12 and K532 engines with 3.375"
cylinder bore.
-
High quality aftermarket. K-series cast piston and rings. Same quality as
OEM Kohler part # 47 874 06-S and 48 874 01-S. $39.00 each, plus shipping
& handling.
-
K-series cast piston and rings. OEM Kohler part # 47 874 06-S. $184.44
each, plus shipping & handling.
-
K-series cast piston and rings. OEM Kohler part # 48 874 01-S. $288.99
each, plus shipping & handling.
-
Magnum Mahle forged piston and rings. OEM Kohler part # 47 874 16-S.
Discontinued from Kohler. L
-
.003" Oversize Piston with Rings Assembly. Fits K301, M12 and K532 engines
with 3.378" cylinder bore. Magnum Mahle forged piston and rings. OEM Kohler
part # 47 874 17-S. Discontinued from Kohler.
L
-
.010" Oversize Ring Sets Only. Fits K301, M12 and K532 engines with 3.385"
cylinder bore.
-
Fits K-series cast piston. High quality aftermarket. Same quality as OEM
Kohler part # 48 108 02-S. $18.00 per set, plus shipping & handling.
-
Fits K-series cast piston. OEM Kohler part # 48 108 02-S. $119.30
per set, plus shipping & handling.
-
Fits Magnum Mahle forged piston. OEM Kohler part # 47 108 02-S.
$102.75 per set, plus shipping & handling.
-
.010" Oversize Pistons and Ring Sets. Fits K301, M12 and K532 engines with
3.385" cylinder bore.
-
High quality aftermarket. K-series cast piston and rings. Same quality as
OEM Kohler part # 47 874 08-S and 48 874 03-S. $45.00 each, plus shipping
& handling.
-
K-series cast piston and rings. OEM Kohler part # 47 874 08-S. $247.81
each, plus shipping & handling.
-
K-series cast piston and rings. OEM Kohler part # 48 874 03-S. $228.89
each, plus shipping & handling.
-
Magnum Mahle forged piston and rings. OEM Kohler part # 47 874 18-S.
Discontinued from Kohler. L
-
.020" Oversize Ring Sets Only. Fits K301, M12 and K532 engines with 3.395"
cylinder bore.
-
Fits K-series cast piston. High quality aftermarket. Same quality as OEM
Kohler part # 48 108 03-S. $18.00 per set, plus shipping & handling.
-
Fits K-series cast piston. OEM Kohler part # 48 108 03-S. $119.30
per set, plus shipping & handling.
-
Fits Magnum Mahle forged piston. OEM Kohler part # 47 108 03-S. $83.03
per set, plus shipping & handling.
-
.020" Oversize Pistons and Ring Sets. Fits K301, M12 and K532 engines with
3.395" cylinder bore.
-
High quality aftermarket. K-series cast piston and rings. Same quality as
OEM Kohler part # 47 874 09-S and 48 874 04-S. $46.00 each, plus shipping
& handling.
-
K-series cast piston and rings. OEM Kohler part # 47 874 09-S. $247.81
each, plus shipping & handling.
-
K-series cast piston and rings. OEM Kohler part # 48 874 04-S. $228.99
each, plus shipping & handling.
-
Magnum Mahle forged piston and rings. OEM Kohler part # 47 874 19-S.
$182.66 each, plus shipping & handling.
-
.030" Oversize Ring Sets Only. Fits K301, M12 and K532 engines with 3.405"
cylinder bore.
-
Fits K-series cast piston. High quality aftermarket. Same quality as OEM
Kohler part # 48 108 04-S. $18.00 per set, plus shipping & handling.
-
Fits K-series cast piston. OEM Kohler part # 48 108 04-S. $119.19
per set, plus shipping & handling.
-
Fits Magnum Mahle forged piston. OEM Kohler part # 47 108 04-S. $83.03
per set, plus shipping & handling.
-
.030" Oversize Pistons and Ring Sets. Fits K301, M12 and K532 engines with
3.405" cylinder bore.
-
High quality aftermarket. K-series cast piston and rings. Same quality as
OEM Kohler part # 47 874 10-S. $36.00 each, plus shipping & handling.
-
K-series cast piston and rings. OEM Kohler part # 47 874 10-S. $247.81
each, plus shipping & handling.
-
Magnum Mahle forged piston and rings. OEM Kohler part # 47 874 20-S.
$182.66 each, plus shipping & handling.
-
.040" Oversize Cast Piston with High Quality
Rings. Fits K301, M12 and K532 engines with 3.415" cylinder bore.
Same quality as OEM Kohler. Not available from Kohler. $45.00 each,
plus shipping & handling. Ring set not available separately.
L
|
Kohler K-series and Magnum models K321, M14 and K582 Ring
Sets, and Piston and Ring Sets (includes wrist pin and retaining clips).
(The K321, M14 and K582 engines use the same piston and rings.) Priced
per cylinder. Compression height is
1.7". Rings made of high grade cast iron for durability. And being
the wrist pin is centered, these pistons can be installed in either
direction. IMPORTANT: Check ring end gaps and piston
thrust face for proper clearance before installing to prevent rings from
galling the cylinder wall when hot and piston from seizing in the cylinder
when hot. Click or tap here for proper break-in
(wear-in) oils and procedure for rebuilt engines.
-
STD Size Ring Sets Only. Fits K321, M14 and K582 engines with 3.500" cylinder
bore.
-
Fits K-series cast piston. High quality aftermarket. Same quality as OEM
Kohler part # 48 108 05-S. $24.00 per set, plus shipping & handling.
-
Fits K-series cast piston. OEM Kohler part # 48 108 05-S. $101.23
per set, plus shipping & handling.
-
Fits Magnum Mahle forged piston. OEM Kohler part # 47 108 05-S. Discontinued
from Kohler. L
-
STD Size Pistons and Ring Sets. Fits K321, M14 and K582 engines with 3.500"
cylinder bore.
-
High quality aftermarket. K-series cast piston and rings. Same quality as
OEM Kohler part # 47 874 11-S. $55.00 each, plus shipping & handling.
-
K-series cast piston and rings. OEM Kohler part # 47 874 11-S. Discontinued
from Kohler. L
-
Magnum Mahle forged piston and rings. OEM Kohler part # 47 874 21-S.
Discontinued from Kohler. L
-
.003" Oversize Cast Piston with Rings Assembly. Fits K321, M14 and K582 engines
with 3.503" cylinder bore. OEM Kohler part # 47 874 12-S. $191.75
each, plus shipping & handling.
-
.010" Oversize Ring Sets Only. Fits K321, M14 and K582 engines with 3.510"
cylinder bore.
-
Fits K-series cast piston. High quality aftermarket. Same quality as OEM
Kohler part # 48 108 06-S. $18.00 per set, plus shipping & handling.
-
Fits K-series cast piston. OEM Kohler part # 48 108 06-S. $102.75
per set, plus shipping & handling.
-
Fits Magnum Mahle forged piston. OEM Kohler part # 47 108 06-S. Discontinued
from Kohler. L
-
.010" Oversize Pistons and Ring Sets. Fits K321, M14 and K582 engines with
3.510" cylinder bore.
-
High quality aftermarket. K-series cast piston and rings. Same quality as
OEM Kohler part # 47 874 13-S. $52.00 each, plus shipping & handling.
-
K-series cast piston and rings. OEM Kohler part # 47 874 13-S. $247.81
each, plus shipping & handling.
-
Magnum Mahle forged piston and rings. OEM Kohler part # 47 874 23-S.
$301.81 each, plus shipping & handling.
-
.020" Oversize Ring Sets Only. Fits K321, M14 and K582 engines with 3.520"
cylinder bore.
-
Fits K-series cast piston. High quality aftermarket. Same quality as OEM
Kohler part # 48 108 07-S. $15.00 per set, plus shipping & handling.
-
Fits K-series cast piston. OEM Kohler part # 48 108 07-S. $119.30
per set, plus shipping & handling.
-
Fits Magnum Mahle forged piston. OEM Kohler part # 47 108 07-S.
$106.22 per set, plus shipping & handling.
-
.020" Oversize Pistons and Ring Sets. Fits K321, M14 and K582 engines with
3.520" cylinder bore.
-
High quality aftermarket. K-series cast piston and rings. Same quality as
OEM Kohler part # 47 874 14-S. $49.00 each, plus shipping & handling.
-
K-series cast piston and rings. OEM Kohler part # 47 874 14-S. Discontinued
from Kohler. L
-
Magnum Mahle forged piston and rings. OEM Kohler part # 47 874 24-S.
Discontinued from Kohler. L
-
.030" Oversize Ring Sets Only. Fits K321, M14 and K582 engines with 3.530"
cylinder bore.
-
Fits K-series cast piston. High quality aftermarket. Same quality as OEM
Kohler part # 48 108 08-S. $14.50 per set, plus shipping & handling.
-
Fits K-series cast piston. OEM Kohler part # 48 108 08-S. $119.30
per set, plus shipping & handling.
-
Fits Magnum Mahle forged piston. OEM Kohler part # 47 108 08-S. Discontinued
from Kohler. L
-
.030" Oversize Pistons and Ring Sets. Fits K321, M14 and K582 engines with
3.530" cylinder bore.
-
High quality aftermarket. K-series cast piston and rings. Same quality as
OEM Kohler part # 47 874 15-S. $49.00 each, plus shipping & handling.
-
K-series cast piston and rings. OEM Kohler part # 47 874 15-S. $247.81
each, plus shipping & handling.
-
Magnum Mahle forged piston and rings. OEM Kohler part # 47 874 25-S.
Discontinued from Kohler. L
-
.040" Oversize Cast Piston with High Quality Rings.
Fits K321, M14 and K582 engines with 3.415" cylinder bore. Same
quality as OEM Kohler. Not available from Kohler. $60.00 each, plus
shipping & handling. Ring set not available separately.
L
|
 Kohler K-series and Magnum engine models K341, M16 and K361
Ring Sets, and Piston and Ring Sets (includes wrist pin and retaining clips).
(The K341, M16 and K361 engines use the same piston and rings.)
Compression height is 1.7". Rings
made of high grade cast iron for durability. Wrist pin is offset to
reduce piston slap. Therefore, piston installs with notch facing flywheel.
IMPORTANT: Check ring end gaps and piston thrust face for
proper clearance before installing to prevent rings from galling the cylinder
wall when hot and piston from seizing in the cylinder when hot.
Click or tap here for proper break-in (wear-in)
oils and procedure for rebuilt engines.
-
STD Size Ring Sets Only. Fits K341, M16 and K361 engines with 3.750" cylinder
bore.
-
High quality aftermarket. Fits K-series cast piston. Same quality as OEM
Kohler part # 45 108 06-S. $26.00 per set, plus shipping & handling.
-
Fits K-series cast piston. OEM Kohler part # 45 108 06-S. $94.09 per
set, plus shipping & handling.
-
Fits Magnum Mahle forged piston. OEM Kohler part # 41 108 01-S. $67.18
per set, plus shipping & handling.
-
STD Size Pistons and Ring Sets. Fits K341, M16 and K361 engines with 3.750"
cylinder bore.
-
High quality aftermarket. K-series cast piston and rings. Same quality as
OEM Kohler part # 45 874 01-S. $85.00 each, plus shipping & handling.
-
K-series cast piston and rings. OEM Kohler part # 45 874 01-S. $290.59
each, plus shipping & handling.
-
Magnum Mahle forged piston and rings. OEM Kohler part # 45 874 11-S.
Discontinued from Kohler. L
-
.003" Oversize Cast Piston and Ring Sets. Fits K341, M16 and K361 engines
with 3.753" cylinder bore.
-
K-series cast piston and rings. OEM Kohler part # 45 874 02-S. $309.81
each, plus shipping & handling.
-
Magnum Mahle forged piston and rings. OEM Kohler part # 45 874 12-S.
Discontinued from Kohler. L
-
.010" Oversize Ring Sets Only. Fits K341, M16 and K361 engines with 3.760"
cylinder bore.
-
Fits K-series cast piston. OEM Kohler part # 45 108 07-S. $98.63 per
set, plus shipping & handling. Not available in aftermarket.
-
Fits Magnum Mahle forged piston. OEM Kohler part # 45 108 11-S.
$143.45 per set, plus shipping & handling.
-
.010" Oversize Pistons and Ring Sets. Fits K341, M16 and K361 engines with
3.760" cylinder bore.
-
High quality aftermarket. K-series cast piston and rings. Same quality as
OEM Kohler part # 45 874 03-S. $85.00 each, plus shipping & handling.
-
K-series cast piston and rings. OEM Kohler part # 45 874 03-S. $290.59
each, plus shipping & handling.
-
Magnum Mahle forged piston and rings. OEM Kohler part # 45 874 13-S.
$317.30 each, plus shipping & handling.
-
.020" Oversize Ring Sets Only. Fits K341, M16 and K361 engines with 3.770"
cylinder bore.
-
Fits K-series cast piston. OEM Kohler part # 45 108 08-S. $98.63 per
set, plus shipping & handling. Not available in aftermarket.
-
Fits Magnum Mahle forged piston. OEM Kohler part # 45 108 12-S.
$106.80 per set, plus shipping & handling.
-
.020" Oversize Pistons and Ring Sets. Fits K341, M16 and K361 engines with
3.770" cylinder bore.
-
High quality aftermarket. K-series cast piston and rings. Same quality as
OEM Kohler part # 45 874 04-S. $85.00 each, plus shipping & handling.
-
K-series cast piston and rings. OEM Kohler part # 45 874 04-S. $322.20
each, plus shipping & handling.
-
Magnum Mahle forged piston and rings. OEM Kohler part # 45 874 14-S.
Discontinued from Kohler. L
-
.030" Oversize Ring Sets Only. Fits K341, M16 and K361 engines with 3.780"
cylinder bore.
-
Fits K-series cast piston. OEM Kohler part # 45 108 09-S. Discontinued
from Kohler and not available in aftermarket.
L
-
Fits Magnum Mahle forged piston. OEM Kohler part # 45 108 13-S.
$106.80 per set, plus shipping & handling.
-
.030" Oversize Pistons and Ring Sets. Fits K341, M16 and K361 engines with
3.780" cylinder bore.
-
High quality aftermarket. K-series cast piston and rings. Same quality as
OEM Kohler part # 45 874 05-S. $85.00 each, plus shipping & handling.
-
K-series cast piston and rings. OEM Kohler part # 45 874 05-S. Discontinued
from Kohler. L
-
Magnum Mahle forged piston and rings. OEM Kohler part # 45 874 15-S.
Discontinued from Kohler. L
-
.040" Oversize Cast
Piston with High Quality Rings. Fits K341, M16 and K361 engines
with 3.790" cylinder bore. Same quality as OEM Kohler. Not available from
Kohler. $85.00 each, plus shipping & handling. Ring set not
available separately. L
[Return To Previous Paragraph, Section
or Website]
|
 Piston Wrist Pin Retainers
for 5/8" diameter wrist pins. Fits Kohler engine models K141, K160/K161,
K181, M8, KT17, KT17 Series II, MV16, M18 and MV18.
FYI - Snap ring retainers last longer than the OEM
Cir-Clips because there's more "wear area" around them due to the flat
area.
-
5/8" Internal Snap Ring. $1.50 each, plus shipping & handling.
-
5/8" Wire Cir-Clip. OEM Kohler part # 230004-S. $4.00 each, plus shipping
& handling.
Piston Wrist Pin Retainers for 3/4" diameter wrist pins. Fits Kohler engine
models KT19, KT19 Series II, M20 and MV20. FYI - Snap ring
retainers last longer than the OEM Cir-Clips because there's more "wear area"
around them due to the flat area.
-
3/4" Internal Snap Ring. $1.50 each, plus shipping & handling.
-
3/4" Wire Cir-Clip. OEM Kohler part # 52 141 01-S. $4.35 each, plus
shipping & handling.
Ring Sets Only and Cast Pistons
with Rings. Fits Kohler flathead twin cylinder engine models KT17, KT17 Series
II, MV16, M18 and MV18. The KT17, KT17 Series II, MV16, M18 and MV18
pistons all have the same dimensions, same wrist pin hole size (.6247"-.6249")
and same compression height (1.125"), and accept the same rings. The only
difference is the KT17 and KT17 Series II pistons are cast aluminum, and
the MV16, M18 and MV18 pistons are forged, and made by Mahle. The KT-series
rings will also fit the Mahle pistons, the Mahle pistons are not available
for these engines. Priced per cylinder. To maintain engine balance and
reduce vibration, two sets of matching oversize piston and rings are
required. IMPORTANT: Check ring end gaps for proper
clearance before installing to prevent rings from galling the cylinder wall
when hot. Click or tap here for proper break-in
(wear-in) oils and procedure for rebuilt engines.
-
STD Size Ring Sets Only. (3.125" diameter cylinder bore.)
-
High quality aftermarket. $30.00 per set (for one cylinder), plus
shipping & handling.
-
OEM Kohler part # 52 108 09-S. $90.35 per set (for one cylinder),
plus shipping & handling.
-
STD Size Cast Pistons with Rings. (3.125" diameter cylinder bore.)
-
High Quality aftermarket. Replaces Kohler part # 52 875 01-S. $60.00
each, plus shipping & handling.
-
OEM Kohler part # 52 874 01-S. $256.90 each, plus shipping & handling.
-
.010" Oversize Ring Sets Only. (3.135" diameter cylinder bore.)
-
High quality aftermarket. $30.00 per set (for one cylinder), plus
shipping & handling.
-
OEM Kohler part # 52 108 10-S. $88.35 per set (for one cylinder),
plus shipping & handling.
-
.010" Oversize Cast Pistons with Rings. (3.135" diameter cylinder bore.)
-
High Quality aftermarket. Replaces Kohler part # 52 875 03-S. $60.00
each, plus shipping & handling.
-
OEM Kohler part # 52 874 03-S. $257.15 each, plus shipping & handling.
-
.020" Oversize Ring Set. (3.145" diameter cylinder bore.)
-
High quality aftermarket. $40.00 per set (for one cylinder), plus
shipping & handling.
-
OEM Kohler part # 52 108 11-S. $99.40 per set (for one cylinder),
plus shipping & handling.
-
.020" Oversize Cast Piston with Rings. (3.145" diameter cylinder bore.)
-
OEM Kohler part # 52 874 04-S. $293.00 each, plus shipping & handling.
-
.030" Oversize Ring Set. (3.155" diameter cylinder bore.)
-
High quality aftermarket. $40.00 per set (for one cylinder), plus
shipping & handling.
-
OEM Kohler part # 52 108 12-S. Discontinued from Kohler.
L
-
.030" Oversize Cast Piston with Rings. (3.155" diameter cylinder bore.) OEM
Kohler part # 52 874 05-S. $293.30 each, plus shipping & handling.
Mahle Piston, Pin, Clips with
Rings for models KT17, KT17 Series II, MV16, M18, MV18. Wrist pin diameter:
.6247"-.6249". Compression height:
1.125". Priced per cylinder. Rings not available separately. To maintain
engine balance and reduce vibration, two sets of matching oversize piston
and rings are required. IMPORTANT: Check ring gap end
gaps and piston thrust face for proper clearance before installing to prevent
rings from galling the cylinder wall when hot and piston from seizing in
the cylinder when hot. Click or tap here for proper
break-in (wear-in) oils and procedure for rebuilt engines.
-
STD Size Ring Sets Only. (3.125" diameter cylinder bore.)
-
High quality aftermarket. $30.00 per set (for one cylinder), plus
shipping & handling.
-
OEM Kohler part # 52 108 09-S. $90.35 per set (for one cylinder),
plus shipping & handling.
-
STD Size Mahle Pistons with Rings. (3.125" diameter cylinder bore.)
-
High Quality aftermarket. Replaces Kohler part # 52 875 01-S. $60.00
each, plus shipping & handling.
-
OEM Kohler part # 52 874 01-S. $256.90 each, plus shipping & handling.
-
.010" Oversize Ring Sets Only. (3.135" diameter cylinder bore.)
-
High quality aftermarket. $30.00 per set (for one cylinder), plus
shipping & handling.
-
OEM Kohler part # 52 108 10-S. $88.35 per set (for one cylinder),
plus shipping & handling.
-
.010" Oversize Mahle Pistons with Rings. (3.135" diameter cylinder bore.)
-
High Quality aftermarket. Replaces Kohler part # 52 875 03-S. $60.00
each, plus shipping & handling.
-
OEM Kohler part # 52 874 03-S. $257.15 each, plus shipping & handling.
-
.020" Oversize Ring Set. (3.145" diameter cylinder bore.)
-
High Quality aftermarket. Replaces Kohler part # 52 108 11-S. $40.00
each, plus shipping & handling.
-
OEM Kohler part # 52 108 11-S. $99.40 per set (for one cylinder),
plus shipping & handling.
-
.020" Oversize Mahle Piston with Rings. (3.145" diameter cylinder bore.)
-
High Quality aftermarket. $75.00 each, plus shipping & handling.
-
OEM Kohler part # 52 874 04-S. $293.00 each, plus shipping & handling.
-
.030" Oversize Ring Set. (3.155" diameter cylinder bore.) High quality
aftermarket. Replaces Kohler part # 52 108 12-S. $40.00 each, plus
shipping & handling.
-
.030" Oversize Mahle Piston with Rings. (3.155" diameter cylinder bore.)
-
High Quality aftermarket. $75.00 each, plus shipping & handling.
-
OEM Kohler part # 52 874 05-S. $293.30 each, plus shipping & handling.
Cast Pistons, Pins, Clips
with Rings for Kohler engine models KT19 Series II, M20 and MV20. Wrist
pin diameter: .7499"-.7501". Compression
height: 1.1875". Priced per cylinder. To maintain engine balance and
reduce vibration, two sets of matching oversize piston and rings are
required. The KT-series cast piston thrust face to cylinder bore oil
clearance is .007"-.010". Piston with the 5/8" wrist pin for KT19 first
design no longer available.
-
STD Size Ring Sets Only. (3.125" diameter cylinder bore.)
-
High quality aftermarket. $30.00 per set (for one cylinder), plus
shipping & handling.
-
OEM Kohler part # 52 108 09-S. $76.90 per set (for one cylinder),
plus shipping & handling.
-
STD Size Cast Piston with Rings. Kohler part # 52 874 06-S. Discontinued
from Kohler. L
-
.010" Oversize Ring Sets Only. (3.135" diameter cylinder bore.)
-
High quality aftermarket. $30.00 per set (for one cylinder), plus
shipping & handling.
-
OEM Kohler part # 52 108 10-S. $88.35 per set (for one cylinder),
plus shipping & handling.
-
.010" Oversize Cast Piston with Rings. (3.135" cylinder bore.) OEM Kohler
part # 52 874 08-S. $260.95 each, plus shipping & handling.
-
.020" Oversize Ring Set. (3.145" diameter cylinder bore.)
-
High quality aftermarket. $40.00 per set (for one cylinder), plus
shipping & handling.
-
OEM Kohler part # 52 108 11-S. $99.40 per set (for one cylinder),
plus shipping & handling.
-
.020" Oversize Cast Piston with Rings. (3.145" diameter cylinder bore.) OEM
Kohler part # 52 874 09-S. $306.70 each, plus shipping & handling.
-
.030" Oversize Ring Sets Only. (3.155" diameter cylinder bore.) High quality
aftermarket. $40.00 per set (for one cylinder), plus shipping &
handling.
-
.030" Oversize Cast Piston with Rings. Kohler part # 52 874 10-S. Discontinued
from Kohler. L
Mahle Pistons, Pins, Clips with
Rings for models KT19, KT19 Series II, M20, MV20. Wrist pin diameter:
.7499"-.7501". Compression height:
1.1875". Priced per cylinder. Rings not available separately. To maintain
engine balance and reduce vibration, two sets of matching oversize piston
and rings are required. The Mahle forged piston thrust face to cylinder bore
clearance is .0045"-.0062".
-
STD Size Ring Sets Only. (3.125" diameter cylinder bore.)
-
High quality aftermarket. $30.00 per set (for one cylinder), plus
shipping & handling.
-
OEM Kohler part # 52 108 09-S. $76.90 per set (for one cylinder),
plus shipping & handling.
-
STD Size Mahle Piston with Rings. (3.125" diameter cylinder bore.)
-
High quality aftermarket. Replaces Kohler part # 52 874 16-S.
$75.00 each (for one cylinder), plus shipping & handling.
-
OEM Kohler part # 52 874 16-S. $173.83 each, plus shipping & handling.
-
.010" Oversize Ring Sets Only. (3.135" diameter cylinder bore.)
-
High quality aftermarket. $30.00 per set (for one cylinder), plus
shipping & handling.
-
OEM Kohler part # 52 108 10-S. $88.35 per set (for one cylinder),
plus shipping & handling.
-
.010" Oversize Mahle Piston with Rings. (3.135" diameter cylinder bore.)
-
High quality aftermarket. Replaces Kohler part # 52 874 18-S. $75.00
each, plus shipping & handling.
-
OEM Kohler part # 52 874 18-S. $168.53 each, plus shipping & handling.
-
.020" Oversize Ring Set. (3.145" diameter cylinder bore.)
-
High quality aftermarket. $40.00 per set (for one cylinder), plus
shipping & handling.
-
OEM Kohler part # 52 108 11-S. $99.40 per set (for one cylinder),
plus shipping & handling.
-
.020" Oversize Mahle Piston with Rings. (3.145" diameter cylinder bore.)
-
High quality aftermarket. Replaces Kohler part # 52 874 19-S. $75.00
each, plus shipping & handling.
-
OEM Kohler part # 52 874 19-S. $163.90 each, plus shipping & handling.
-
.030" Oversize Ring Sets Only. (3.155" diameter cylinder bore.) High quality
aftermarket. $40.00 per set (for one cylinder), plus shipping &
handling.
-
.030" Oversize Mahle Piston with Rings. (3.155" diameter cylinder bore.)
High quality aftermarket. Replaces Kohler part # 52 874 20-S. $75.00
each, plus shipping & handling. Discontinued from Kohler.
L
|
| NOTE: High-quality ring sets, pistons and piston/rings assemblies
are also available for other makes and models of small gas engines. And the
piston assemblies that's offered here will work with a stock connecting rod
and crankshaft without the need for rebalancing. And always match a billet
connecting rod of a certain length to an aftermarket piston (Arias, JE, etc.)
that has the correct compression height. These two parts must be matched
for the piston to come flush with the top of the engine block, or have a
few thousands of an inch pop-out. If using a Kohler connecting rod, the
compression height may not be correct with an aftermarket piston (Arias,
JE, etc.) that has the wrong wrist pin offset. The same is true with a Kohler
piston and a billet connecting rod of a the wrong length. You can find piston
ring compressors on
eBay. |
| NOTE: Complete engine rebuild kits are available, but a kit will cost
more than if the parts were purchased separately. So please contact A-1 Miller's
with a list of parts you need, and I'll get back to you with a total amount
including shipping & handling. And if you need a part or parts that's
not listed in this website or for other make and model of engines. Please
contact A-1 Miller's and I'll see if I can get it at a reasonable price.
Please contact A-1 Miller's if you're interested in any
of the above È parts or items. |
Upon installation of a connecting rod in a Kohler
engine, the oil hole in the cap face toward the camshaft! There's "match
marks" on both the rod and rod cap. They MUST be aligned or "matched up"
so the big end of the rod forms a perfect circle around the crank journal
when installed. Otherwise, if the cap is installed backwards, the "perfect
circle" will be oblong or "egg-shaped," which will bind on the crank journal.
And DO NOT over-tighten the rod bolts or nuts! If the threads strip out in
a rod, then perhaps a longer grade 8 fine thread bolt can be installed in
reverse to serve as a stud (the rod will need to be machined for head bolt
clearance) and use a grade 8 nut. If this cannot be done, then the rod is
scrap metal. |
 Connecting rods. Fits
Kohler engine models K90/K91. NOTE: Crank journal must be reground
.010" undersize to match this rod. The alternative to using an undersize
rod is if a STD size or .010" undersize rod is in good condition, if the
matching-size crank journal isn't deeply scored and/or badly burnt, it can
be reground until it's perfectly round again and then if the original rod
also isn't deeply scored and/or badly burnt, it can be resized to fit to
odd-size undersize journal with the factory recommended .0025" oil clearance.
NOTE - The maximum a connecting rod can be resized to is .005" undersize.
If it's resized more than .005", being the big hole in the rod will be made
excessively oblong or egg-shaped, which will allow it to make less bearing
surface contact around the crank journal after being resized, due to the
centrifugal force at 3,600 RPM, the big end of the rod could become elongated
(metal stretch) and might eventually knock and possibly break. IMPORTANT:
To prevent scoring of the rod when the engine is started for the first time,
apply clean motor oil, gear oil or lubricating grease or on crank journal
before installing rod. This will better protect the parts until crankcase
oil reaches them. IMPORTANT: Click
or tap here for proper break-in (wear-in) oils and procedure for rebuilt
engines.
-
STD size for .938" diameter crank journal. OEM Kohler part # B-220111-S.
(Has numbers 220489 embossed on rod.) $57.00 each, plus shipping &
handling. (New Old Stock; when available.)
-
.010" undersize for .928" diameter crank journal. OEM Kohler part #
B-220111-10-S. $69.00 each, plus shipping & handling.
|
 New connecting rods. Fits
Kohler K-series models K141, K160/K161 cast iron block flathead engines.
These are plain aluminum bearing surface rods. Replaceable bearing inserts
are not available for these particular rods. 230519 embossed in beam section
on OEM Kohler rods. The alternative to using an undersize rod is
if a STD size or .010" undersize rod is in good condition, if the matching-size
crank journal isn't deeply scored and/or badly burnt, it can be reground
so it's perfectly round again and then if the original rod also isn't deeply
scored and/or badly burnt, it can be resized to fit to odd-size undersize
journal with the factory recommended .0025" oil clearance. NOTE - The maximum
a connecting rod can be resized to is .005" undersize. If it's resized more
than .005", being the big hole in the rod will be made excessively oblong
or egg-shaped, which will allow it to make less bearing surface contact around
the crank journal after being resized, due to the centrifugal force at 3,600
RPM, the big end of the rod could become elongated (metal stretch) and might
eventually knock and possibly break. IMPORTANT: To prevent scoring of the
rod when the engine is ran for the first time, apply clean motor oil, gear
oil or lubricating grease on crank journal before installing rod. This will
better protect the parts until crankcase oil reaches them.
IMPORTANT: Click or tap here for proper break-in
(wear-in) oils and procedure for rebuilt engines.
-
STD size for 1.1875" diameter crank journal.
-
High quality aftermarket. $46.00 each, plus shipping & handling.
-
OEM Kohler part # B-230039-S and John Deere part # AM31071. $103.70
each, plus shipping & handling.
-
.010" undersize for 1.1775" diameter crank journal. Crank journal must
be reground .010" undersize to match this rod.
-
High quality aftermarket. $46.00 each, plus shipping & handling.
-
OEM Kohler part # B-230039-10-S. $78.10 each, plus shipping &
handling.
|
 New connecting rods. Fits
Kohler K-series and Magnum models K181 and M8 cast iron block flathead engines.
These are plain aluminum bearing surface rods. Replaceable bearing inserts
are not available for these particular rods. NOTE - The alternative
to using an undersize rod is if a STD size or .010" undersize rod is in good
condition, if the matching-size crank journal isn't deeply scored and/or
badly burnt, it can be reground until it's perfectly round again and then
if the original rod also isn't deeply scored and/or badly burnt, it can be
resized to fit to odd-size undersize journal with the factory recommended
.0025" oil clearance. NOTE - The maximum a connecting rod can be resized
to is .005" undersize. If it's resized more than .005", being the big hole
in the rod will be made excessively oblong or egg-shaped, which will allow
it to make less bearing surface contact around the crank journal after being
resized, due to the centrifugal force at 3,600 RPM, the big end of the rod
could become elongated (metal stretch) and might eventually knock and possibly
break. IMPORTANT: To prevent scoring of the rod when the engine is ran for
the first time, apply clean motor oil, gear oil or lubricating grease on
crank journal before installing rod. This will better protect the parts until
crankcase oil reaches them. IMPORTANT:
Click or tap here for proper break-in (wear-in)
oils and procedure for rebuilt engines.
-
STD size for 1.1875" diameter crank journal. For "old style" K-series
cast piston with wide wrist pin hole.
-
High quality aftermarket. Replaces Kohler part # 41 067 10-S. $37.00
each, plus shipping & handling.
-
OEM Kohler part # 41 067 10-S and John Deere part # AM31062. $66.10
each, plus shipping & handling.
-
.010" undersize for 1.1775" diameter crank journal. For "old style" K-series
cast piston with wide wrist pin hole.
-
High quality aftermarket. Replaces Kohler part # 41 067 11-S. $44.00
each, plus shipping & handling.
-
OEM Kohler part # 41 067 11-S and John Deere part # AM103292. $84.30
each, plus shipping & handling.
-
For "new style" (Magnum) Mahle forged piston with wide wrist pin hole.
(Strong rods.)
-
STD size for 1.1875" diameter crank journal. OEM Kohler part # 41 067 08-S.
$91.20 each, plus shipping & handling.
-
.010" undersize for 1.1775" diameter crank journal. OEM Kohler part # 41
067 09-S. $91.20 each, plus shipping & handling.
|
  New connecting rods. Fits Kohler K-series and Magnum engine
models K241/M10. Strong rods. Comes with long dipper. 5.558" length.
NOTE - These rods can be bored for installation of bearing inserts,
and crank journal must be reground to match diameter of undersize bearing
inserts. Crank journal must be reground .010" undersize to match this rod.
The alternative to using an undersize rod is if a STD size or .010" undersize
rod is in good condition, if the matching-size crank journal isn't deeply
scored and/or badly burnt, it can be reground until it's perfectly round
again and then if the original rod also isn't deeply scored and/or badly
burnt, it can be resized to fit to odd-size undersize journal with the factory
recommended .0025" oil clearance. Bearing inserts cannot be used. NOTE -
The maximum a connecting rod can be resized to is .005" undersize. If it's
resized more than .005", being the big hole in the rod will be made excessively
oblong or egg-shaped, which will allow it to make less bearing surface contact
around the crank journal after being resized, due to the centrifugal force
at 3,600 RPM, the big end of the rod could become elongated (metal stretch)
and might eventually knock and possibly break. IMPORTANT: To prevent scoring
of the rod when the engine is ran for the first time, apply clean motor oil,
gear oil or lubricating grease on crank journal before installing rod. This
will better protect the parts until crankcase oil reaches them.
IMPORTANT: Click or tap here for proper break-in
(wear-in) oils and procedure for rebuilt engines.
-
A-1 Miller's Machine Shop Service - Bore YOUR burnt or scored rod
and install replaceable undersize
bearing inserts for better
engine protection. No need to purchase a new undersize rod. $50.00
for labor and bearing inserts, plus return shipping & handling.
-
STD size for 1.500" diameter crank journal.
-
High quality aftermarket. Replaces Kohler part # 47 067 13-S and John Deere
part # AM103546. Has long integrated dipper for deep oil pan; cut half off
for narrow, flat bottom oil pan. $44.00 each, plus shipping &
handling.
-
OEM Kohler part # 47 067 11-S. Has short integrated dipper for narrow, flat
bottom oil pan. $130.40 each, plus shipping & handling.
-
.010" undersize for 1.490" diameter crank journal. (Has hole drilled through
beam section.) High quality aftermarket. Has long integrated dipper for deep
oil pan; cut half off for narrow, flat bottom oil pan. Crank journal must
be reground .010" undersize to match this rod.
Discontinued from Kohler. Replaces Kohler part # 47 067 12-S
and John Deere part # AM37715. $48.00 each, plus shipping & handling.
-
.020" undersize for 1.480" diameter crank journal. Irrelevant Kohler part
number. Has long integrated dipper for deep oil pan; cut half off for narrow,
flat bottom oil pan. Crank journal must be reground .020" undersize to
match this rod. Irrelevant Kohler or John Deere part numbers.
$48.00 each, plus shipping & handling.
|
  New connecting
rods. Fits Kohler K-series and Magnum models K301/M12 and K321/M14 cast iron
block flathead engines. Comes with long dipper. 5.3" length.
NOTE - These rods can be bored for installation of bearing inserts,
and crank journal must be reground to match diameter of undersize bearing
inserts. Crank journal must be reground .010" undersize to match this rod.
The alternative to using an undersize rod is if a STD size or .010" undersize
rod is in good condition, if the matching-size crank journal isn't deeply
scored and/or badly burnt, it can be reground until it's perfectly round
again and then if the original rod also isn't deeply scored and/or badly
burnt, it can be resized to fit to odd-size undersize journal with the factory
recommended .0025" oil clearance. Bearing inserts cannot be used. NOTE -
The maximum a connecting rod can be resized to is .005" undersize. If it's
resized more than .005", being the big hole in the rod will be made excessively
oblong or egg-shaped, which will allow it to make less bearing surface contact
around the crank journal after being resized, due to the centrifugal force
at 3,600 RPM, the big end of the rod could become elongated (metal stretch)
and might eventually knock and possibly break. IMPORTANT: To prevent scoring
of the rod when the engine is ran for the first time, apply clean motor oil,
gear oil or lubricating grease on crank journal before installing rod. This
will better protect the parts until crankcase oil reaches them.
IMPORTANT: Click or tap here for proper break-in
(wear-in) oils and procedure for rebuilt engines.
-
A-1 Miller's Machine Shop Service - Bore YOUR burnt or scored rod
and install replaceable STD size, .010", .020", .030" (hard to find now)
or resizable .060" undersize bearing
inserts for better engine protection. No need to purchase a new undersize
rod. $50.00 for labor and bearing inserts, plus return shipping &
handling.
-
STD size for 1.500" diameter crank journal.
-
High quality aftermarket. For "old style" K-series cast piston with wide
wrist pin hole. Discontinued from Kohler. Replaces Kohler part # 47 067
09-S and John Deere part # AM106441. $48.00 each, plus shipping &
handling.
-
High quality aftermarket. Same as above except has narrow wrist pin hole
for "new style" (Magnum) Mahle forged piston. $58.00 each, plus
shipping & handling.
-
K-series and Magnum "new style"
rod. This particular forged rod has a thicker beam section, which makes
it just as strong as a billet rod, and with bearing inserts installed, it's
suitable for high RPM and wide open throttle engine operation. And when used
with a factory type piston with a thin-wall wrist pin, the rotating assembly
will not need to be rebalanced. OEM Kohler part # 45 067 24-S and John
Deere part # AM106441. $124.50 each, plus shipping & handling.
-
.010" undersize for 1.490" diameter crank journal. (Has hole drilled through
beam section.) Crank journal must be reground .010" undersize to match
these rods.
-
High quality aftermarket. For "old style" K-series cast piston with wide
wrist pin hole. Discontinued from Kohler. Replaces Kohler part # 47 067
10-S. $48.00 each, plus shipping & handling.
-
High quality aftermarket. Same as above except has narrow wrist pin hole
for "new style" (Magnum) Mahle forged piston. $58.00 each, plus
shipping & handling.
-
K-series and Magnum "new style" rod. This particular forged rod has a
thicker beam section, which makes it just as strong as a billet rod, and
with bearing inserts installed, it's suitable for high RPM and wide open
throttle engine operation. And when used with a factory type piston with
a thin-wall wrist pin, the rotating assembly will not need to be rebalanced.
OEM Kohler part # 45 067 25-S and John Deere part # AM106832.
$173.85 each, plus shipping & handling.
-
.020" undersize for 1.480" diameter crank journal. Irrelevant Kohler or John
Deere part numbers.
-
High quality aftermarket. For "old style" K-series cast piston with wide
wrist pin hole. $48.00 each, plus shipping & handling.
-
High quality aftermarket. Same as above except has narrow wrist pin hole
for "new style" (Magnum) Mahle forged piston. $58.00 each, plus
shipping & handling.
|
 New connecting
rods. Fits Kohler K-series and Magnum K341/M16 cast iron block engines. These
rods have a narrow wrist pin hole. Comes with long dipper. 5.3" length.
NOTE - All 16hp rods, K-series or Magnum, have a narrow wrist pin
hole. Also, these rods can be bored for installation of bearing inserts,
and crank journal must be reground to match diameter of undersize bearing
inserts. Crank journal must be reground .010" undersize to match this rod.
The alternative to using an undersize rod is if a STD size or .010" undersize
rod is in good condition, if the matching-size crank journal isn't deeply
scored and/or badly burnt, it can be reground until it's perfectly round
again and then if the original rod also isn't deeply scored and/or badly
burnt, it can be resized to fit to odd-size undersize journal with the factory
recommended .0025" oil clearance. Bearing inserts cannot be used. NOTE -
The maximum a connecting rod can be resized to is .005" undersize. If it's
resized more than .005", being the big hole in the rod will be made excessively
oblong or egg-shaped, which will allow it to make less bearing surface contact
around the crank journal after being resized, due to the centrifugal force
at 3,600 RPM, the big end of the rod could become elongated (metal stretch)
and might eventually knock and possibly break. IMPORTANT: To prevent scoring
of the rod when the engine is ran for the first time, apply clean motor oil,
gear oil or lubricating grease on crank journal before installing rod. This
will better protect the parts until crankcase oil reaches them.
IMPORTANT: Click or tap here for proper break-in
(wear-in) oils and procedure for rebuilt engines.
-
A-1 Miller's Machine Shop Service - Bore YOUR burnt or scored rod
and install replaceable undersize
bearing inserts for better
engine protection. No need to purchase a new undersize rod. $50.00
for labor and bearing inserts, plus return shipping & handling.
-
STD size for 1.500" diameter crank journal.
-
High quality aftermarket K-series rod. Discontinued from Kohler. Replaces
Kohler part # 45 067 22-S and John Deere part # 102766. $58.00 each,
plus shipping & handling.
-
K-series and Magnum "new style" rod. This particular forged rod has a
thicker beam section, which makes it just as strong as a billet rod, and
with bearing inserts installed, it's suitable for high RPM and wide open
throttle engine operation. And when used with a factory type piston with
a thin-wall wrist pin, the rotating assembly will not need to be
rebalanced. OEM Kohler part # 45 067 24-S and John Deere part # AM106441.
$124.50 each, plus shipping & handling.
Return To Previous
Paragraph È
-
.010" undersize for 1.490" diameter crank journal. (Has hole drilled through
beam section.) Crank journal must be reground .010" undersize to match
these rods.
-
High quality aftermarket K-series rod. Discontinued from Kohler. Replaces
Kohler part # 45 067 23-S and John Deere part # AM102767.
$58.00 each, plus shipping & handling.
-
K-series and Magnum "new style" rod. This particular forged rod has a
thicker beam section, which makes it just as strong as a billet rod, and
with bearing inserts installed, it's suitable for high RPM and wide open
throttle engine operation. And when used with a factory type piston, the
rotating assembly will not need to be rebalanced. OEM Kohler part # 45
067 25-S and John Deere part # AM6632. $173.85 each, plus shipping
& handling.
-
.020" undersize for 1.480" diameter crank journal. Irrelevant Kohler part
number. Irrelevant Kohler or John Deere part numbers. $58.00 each,
plus shipping & handling.
|
 ALCOA connecting rods. Fits Kohler K-series engine model
K361. Also fits the K301/M12, K321/M14 and K341/M16 engines. Extremely strong
rods. These rods have a narrow wrist pin hole for the (Magnum) Mahle, K341
and K361 pistons. Comes with long dipper. 5.3" length. NOTE:
These rods can be bored for installation of STD size, .010", .020",or .030"
undersize bearing inserts, and crank journal must be reground to match diameter
of undersize bearing inserts. Crank journal must be reground .010" undersize
to match this rod. The alternative to using an undersize rod is if a STD
size or .010" undersize rod is in good condition, if the matching-size crank
journal isn't deeply scored and/or badly burnt, it can be reground until
it's perfectly round again and then if the original rod also isn't deeply
scored and/or badly burnt, it can be resized to fit to odd-size undersize
journal with the factory recommended .0025" oil clearance. Bearing inserts
cannot be used. NOTE - The maximum a connecting rod can be resized to is
.005" undersize. If it's resized more than .005", being the big hole in the
rod will be made excessively oblong or egg-shaped, which will allow it to
make less bearing surface contact around the crank journal after being resized,
due to the centrifugal force at 3,600 RPM, the big end of the rod could become
elongated (metal stretch) and might eventually knock and possibly break.
IMPORTANT: To prevent scoring of the rod when the engine is started for the
first time, apply clean motor oil, gear oil or lubricating grease on crank
journal before installing rod. This will better protect the parts until crankcase
oil reaches them. IMPORTANT: Click
or tap here for proper break-in (wear-in) oils and procedure for rebuilt
engines.
-
A-1 Miller's Machine Shop Service - Bore YOUR burnt or scored rod
and install replaceable STD size, .010", .020", .030" (hard to find now)
or resizable .060" undersize bearing
inserts for better engine protection. $50.00 for labor and bearing
inserts, plus return shipping & handling.
-
STD size for 1.500" diameter crank journal. OEM Kohler part # 45 067 15-S.
$125.00 each, plus shipping & handling. (New Old Stock; when
available.)
-
.010" undersize for 1.490" diameter crank journal. (Has hole drilled through
beam section.) New. Crank journal must be reground .010" undersize to
match this rod. OEM Kohler part # 45 067 17-S.
$258.55 each, plus shipping & handling.
|
 New connecting rods with
a wrist pin hole diameter of .625". Fits Kohler KT-series and Magnum engine
models MV16, KT17, KT17 Series II, M18, MV18. Bearing inserts are not
available for these rods. IMPORTANT: Click or tap
here for proper break-in (wear-in) oils and procedure for rebuilt
engines.
-
STD size rod. Fits 1.3733"-1.3738" diameter crank journal.
-
High quality aftermarket. $50.00 each, plus shipping & handling.
-
OEM Kohler part # 52 067 67-S. $119.70 each, plus shipping & handling.
-
.010" undersize rod. Fits 1.3633"-1.3638" diameter crank journal. Crank
journal must be reground .010" undersize to match this rod.
-
High quality aftermarket. $50.00 each, plus shipping & handling.
-
OEM Kohler part # 52 067 68-S. $150.00 each, plus shipping & handling.
-
.020" undersize rod. Fits 1.3533"-1.3538" diameter crank journal. Crank
journals must be reground .010" undersize to match this rod. High quality
aftermarket. $75.00 each, plus shipping & handling.
New connecting rods with a wrist pin hole diameter of .750".
Fits Kohler KT-series and Magnum engine models KT19 Series II, M20 and MV20.
The rods listed below will not fit the KT19 first design engine. IMPORTANT:
Click or tap here for proper break-in (wear-in)
oils and procedure for rebuilt engines.
-
A-1 Miller's Machine Shop Service - Bore YOUR burnt or scored rod(s)
and install replaceable STD size, .010", .020", .030" (hard to find now)
or resizable .060" undersize bearing
inserts for better engine protection. No need to purchase a new undersize
rod. $50.00 for labor and bearing inserts, plus return shipping &
handling.
-
STD size rod. Fits 1.4993"-1.4998" diameter crank journal. High quality
aftermarket. Discontinued from Kohler. Replaces Kohler part # 52 067 71-S.
$75.00 each, plus shipping & handling.
-
.010" undersize rod. Fits 1.4893"-1.4898" diameter crank journal. Crank
journal must be reground .010" undersize to match this rod.
High quality aftermarket. Discontinued from Kohler. Replaces
Kohler part # 52 067 72-S. $75.00 each, plus shipping & handling.
-
.020" undersize rod. Fits 1.4793"-1.4798" diameter crank journal. Crank
journals must be reground .020" undersize to match this rod. High quality
aftermarket. $75.00 each, plus shipping & handling.
|
 New OEM connecting rods. Fits Kohler engine models K482, K532,
K582 and K660/K662. No longer available from Kohler. However, with the K482,
K532 and K582 crankshaft rod journals reground to .010", .020" or .030"
undersize, a connecting rod that has a burnt or scored bearing surface can
be bored out to make room for matching .010", .020" or .030" undersize bearing
inserts. The alternative to using bearing inserts in a connecting rod - if
the bearing surface of a STD size or .010" undersize rod is in good condition
and not badly scored or burnt, the rod journal(s) can be reground and "cleaned
up" until perfectly round again, then the connecting rod can be resized (in
a connecting rod honing machine) to fit or match the odd-size undersize journal
with the factory recommended .0025" oil clearance. However, the maximum a
connecting rod can be resized to is .005" undersize. If it's resized more
than .005", being the big hole in the rod will be made excessively oblong
or egg-shaped, which will allow it to make less bearing surface contact around
the crank journal after being resized, due to the centrifugal force at 3,600
RPM, the big end of the rod could become elongated (metal stretch) and could
eventually knock and possibly break.
-
New high quality aftermarket STD size K532 and K582 connecting rod. Replaces
Kohler part #'s 48 067 12-S and 48 067 16-S. $120.00 each, plus shipping
& handling.
-
New high quality aftermarket .010" undersize K532 and K582 connecting rod.
Replaces Kohler part #'s 48 067 13-S and 48 067 17-S. $120.00 each,
plus shipping & handling.
|
 STD size, .010", .020"
or .030" (hard to find now) undersize Replaceable Tri-Metal (Lead
Alloy/Copper/Steel) Bearing
Inserts in Connecting Rods for Kohler engine models K241/M10, K301/M12,
K321/M14, K341/M16, K361 M20 and MV20. Rods for the before mentioned
engines can be bored and notched to accept bearing
inserts. Even severely burnt, scored, or rods with a mismatched cap can
be bored for installation of bearing inserts. Only USA-made Clevite 77, Federal
Mogul or Sealed Power bearing
inserts will be installed. No low quality Chinese-made bearing inserts
ever installed. All A-1 Miller machined connecting rods include ground-out
notches to prevent bearing rotation in rod and drilled oil hole for proper
lubrication. Please indicate diameter of crank journal for size of
bearing inserts. (STD size, .010", .020", .030" or
resizable .060" undersizes.) Also, rods can be center-bored for top of piston
to come flush with deck, or bored .020"± offset for a .020"± piston
pop-out at no extra charge.
-
Clevite 77, Federal Mogul or Sealed Power Bearing Inserts. Available in STD
size, .010", .020", .030" and resizable .060" (limited quantity) undersizes.
$20.00 each, plus shipping & handling.
-
Bore and notch your rod only (customer supply and install own bearing inserts):
$25.00 labor, plus return shipping & handling.
-
Bore and notch your rod and install our bearing inserts: $45.00 ($20.00
for bearing inserts + $25.00 labor to bore rod), plus return shipping &
handling.
-
Purchase one of our rods, bore and notch rod and install our bearing inserts:
Price of rod $? + $20.00 for bearing inserts + $25.00 labor to bore rod =
$? total, plus return shipping & handling.
NOTE: If a crank journal is worn beyond specs or badly scored/burnt,it
will need to be reground to the next undersize to match the appropriate size
bearing inserts. And if you want A-1 Miller's to bore a rod for you, please
let me know if you want the bearing insert centered in the bore of the rod
(5.300" rod length; piston flush with top of block), offset .020" (5.320"
rod length; safe to use with a milled OEM Kohler stock head and stock head
gasket) or offset .060" (5.360" rod length; use with a non-milled OEM Kohler
head and stock head gasket) to pop the piston out of the cylinder (see below
Ê) to raise the compression and help
improve airflow within the combustion chamber for more power and torque.
The bearing inserts I install in Kohler 10-16hp flatheads
and 18hp OHV K361 connecting rods can be used for general lawn and garden
use, stock or high RPM competition pulling engines. The rod will need to
be bored exactly 1.625" for correct bearing to journal oil
clearance.
NOTE: Being virtually all Kohler K241/M10 pistons come within
.020"± from the top of the block, which lowers the compression ratio.
(The factory made them this way for reasons unknown.) I prefer to bore the
K241 10hp rods .020" offset so the piston will come flush with the top of
the block. This will allow the engine to produce a little more power. It
won't effect the longevity of the engine or cause any problems whatsoever.
But sometimes with the .020" offset, the piston will pop out of the cylinder
a few thousandths of an inch, which will still hurt nothing. And the bore
can be offset .040" for a .020"± piston pop-out.
FYI - Before I machine a rod for installation of bearing inserts,
I use a metal "plug" alignment tool that I fabricated to precisely align
the big hole of the connecting rod with the centerline of the spindle in
my milling machine. Then while the plug is in the rod, I firmly clamp the
rod to the milling machine table and after leaving the big hole centered
or moving the table so many thousandths of an inch offset for piston pop-out,
I lock the table so it won't move in any direction while boring the rod.
But for reasons unknown, sometimes the cutting tool will bore the hole in
the rod slightly off-center toward one of the bolts or studs. When this happens,
I simply grind a small notch on the outside of each bearing shell so they'll
clear the rod bolt. I've talked to other machinists who bore Kohler rods
also about this and they tell A-1 Miller's sometimes the same thing happens
to their rods. But as long as the outside of the bearing shells are notched
for clearance of the bolt or stud, the off-center of the bearing inserts
poses no problems whatsoever.
And bearing inserts for the 10-16hp Kohler engines can be installed
in Kohler engine models K482, K532 and K582 STD size connecting rods, but
the crank journals would need to be reground exactly to 1.500" to match the
inside diameter of the bearing inserts when installed in the rods. And for
your information, STD size crank journals for the K482, K532 and K582 engines
measures 1.6245".
Narrow wrist pin width on 12hp or 14hp (old style) connecting rod for use
with K-series 16hp cast piston or "new style" (Magnum) Mahle forged pistons.
$20.00 labor, plus return shipping & handling.
 |
 Main
Crankshaft Radial Ball Bearings. Fits Kohler K-series and Magnum cast iron
block engine models K141, K160/K161 and K181. Heat treated. These are
specifically designed to provide maximum performance through precise ball
implement selection. Aftermarket bearing packed with fresh grease from the
factory. Dimensions: 1.18" I.D. (30mm) x 2.44" (62mm) O.D. x .62" (16mm)
width. See note below. NOTE: If yours have more than .005" of play due
to wear, or it feels rough or "rubbles" when rotated by hand with motor oil
applied, then it needs to be replaced. FYI - All ball bearings have
always been made to the metric dimensions. Where applicable, the US and import
manufacturers try to make them close to the inch dimensions as possible.
-
New high quality aftermarket. Our part # 150-960. Same quality as OEM Kohler
part # 231625-S. $10.00 each, plus shipping & handling.
-
New OEM Kohler part # 231625-S. $55.55 each, plus shipping & handling.
8 Ball Main Crankshaft Radial
Bearings. Fits Kohler K-series and Magnum cast iron block engine models K241/M10,
K301/M12, K321/M14, K341/M16 and K361. Heat treated material. These are
specifically designed to provide maximum performance through precise ball
implement selection. Works excellent for general lawn and garden engines
or high performance engines that run at high RPM or at
wide
open throttle. Bigger balls rotate freer and run cooler, which create
less rolling resistance and friction than a bearing with smaller balls.
Aftermarket bearing packed with fresh grease from the factory. Dimensions:
1.57" (40mm) I.D. x 3.54" O.D. (90mm) x .90" (23mm) width. See note below
Ê. NOTE: If yours have more than .005"
of play due to wear, or it feels rough or "rubbles" when rotated by hand
with motor oil applied, then it needs to be replaced. FYI - All ball
bearings have always been made to the metric dimensions. Where applicable,
the US and import manufacturers try to make them close to the inch dimensions
as possible.
-
Used and in excellent condition with very little to no wear. OEM Kohler part
# 235376-S. $5.00 each, plus shipping & handling. (When
available.)
-
New high quality aftermarket. Our part #150973. Same quality as OEM Kohler
part # 235376-S. $22.00 each, plus shipping & handling.
-
New. OEM Kohler part # 235376-S. $116.55 each, plus shipping &
handling.
NOTE: With the main bearings removed from an engine, and if all
the oil is cleaned from the bearings, allowed to thoroughly dry, and when
the bearings are spun by hand, and if the bearings isn't worn much or at
all, they might feel "rough" and make a rattling sound. This rattling sound
isn't necessarily because the bearing is worn. The noise is caused by the
balls running dry on the races because there's no oil to separate them. They're
simply making metal to metal contact. Try applying a small amount of motor
oil to the balls/races then spin them. They should now be a lot quieter.
The same thing will happen with new radial ball bearings. By the way - Most
main bearings in a Kohler engine will wear extremely little, if any at all,
and usually don't require replacing. Although some main bearings will wear
(which is obvious), and need to be replaced. And excessively worn main bearings
will make a rumbling noise and the engine will have a more
than-usual-vibration. |
 Crankshaft Main Bearings
(Flanged Sleeve Bushings). Fits Kohler engine models MV16, KT17, KT17 Series
II, KT19, KT19 Series II, M18 MV18, M20 and MV20. NOTE: On these engines,
one main journal can be reground undersize if it's worn beyond specifications
(mostly likely the PTO end), and if the other is within specifications (most
likely the flywheel end), it can remain STD size.
-
STD size. (1.7407") OEM Kohler part # 52 030 10-S. $77.45 each, plus
shipping & handling.
-
.010" undersize. (1.7307") OEM Kohler part # 52 030 11-S. $154.40
each, plus shipping & handling.
-
.020" undersize. (1.7207") OEM Kohler part # 52 030 12-S. $154.40
each, plus shipping & handling.
|
 Crankshaft Main Bearings
(Sleeve Bushings). Fits Kohler opposed (flathead) twin cylinder engine models
K482, K532 and K582.
-
STD size. OEM Kohler part # 48 030 06-S. $71.30 each, plus shipping
& handling.
-
.010" undersize. OEM Kohler part # 48 030 07-S. $161.65 each, plus
shipping & handling.
-
.020" undersize. OEM Kohler part # 48 030 05-S. $123.15 each, plus
shipping & handling.
|
  Flywheel End Camshaft Bearing. Fits Kohler twin cylinder engine
models K482, K532 and K582. STD size only. OEM Kohler part # 48 158 03-S.
$24.35 each, plus shipping & handling.
PTO End Camshaft Bearing. Fits Kohler twin cylinder engine models K482, K532
and K582. Each high quality aftermarket.
-
STD size. Replaces Kohler part # 277039-S. $50.00 each, plus shipping
& handling.
-
.010" undersize. $50.00 each, plus shipping & handling.
|
| More parts to be added later. |
 Valves for Kohler engine models
KT90/KT91. Head diameter: 15/16".
-
Intake. New Old Stock. Discontinued OEM Kohler part # 220008-S. $32.00
each, plus shipping & handling. (When available.)
-
Exhaust. OEM Kohler part # 220009-S. $45.05 each, plus shipping &
handling.
NOTE: Before lapping in the valves, it'll be best to
have the valve seats reground or cut so they'll be in correct alignment with
the centerline of the valve
guides. Otherwise, the valves may not make a full
360º contact with the seats, and the engine will lose compression, be
hard to start, lose power and possibly make a popping sound through the
carburetor or out the exhaust. And be sure to set the clearances correctly,
too. And if the end of the valve stem is accidentally ground too short, it
can be made long again by building up welding with a MIG or TIG welder, then
ground to the correct valve clearance.
 Exhaust Valves for Kohler engine
models K141, K160/K161 and K181/M8. Dimensions: head diameter: 1-1/8"; overall
length: 4.056"; stem diameter: .309"; 45º face angle.
-
High quality aftermarket ordinary long lasting exhaust valve. $20.00
each, plus shipping & handling.
-
OEM Kohler ordinary long lasting exhaust valve, part # 230710-S.
$41.56 each, plus shipping & handling.
-
OEM Kohler
Stellite
exhaust valve (extremely hard and long lasting material; maintains valve
to stem clearance longer), part # 230027-S. $87.36 each, plus shipping
& handling.
-
Reground Exhaust Valve, used and in excellent condition. $10.00 each,
plus shipping & handling. (When available.)
Intake Valves for Kohler engine models K141, K160/K161 and K181/M8. Dimensions:
head diameter: 1-3/8"; overall length: 4.065"; stem diameter: .309"; 45º
face angle.
-
Reground ordinary long lasting intake valve. In excellent reusable condition.
Discontinued OEM Kohler part # 230008-S. $25.00 each, plus shipping
& handling. (When available.)
-
OEM Kohler
Stellite
intake valve (extremely hard and long lasting material; maintains valve to
stem clearance longer), part # 230582-S. $86.23 each, plus shipping
& handling.
-
Reground Intake Valve, used and in excellent condition. $10.00 each,
plus shipping & handling. (When available.)
-
Grind 30º angle on intake valve face to improve engine performance or
for high performance use. (Seat must be recut or reground at a 31º
angle to match angle on valve face.) $5.00 extra.
 5/16" (.3125") Chucking Reamer.
Use to clean carbon deposits from used valve guides
or enlarge new guides for a 5/16" valve stem in flathead 7hp+ B&S, Kohler,
8hp+ Tecumseh, etc. engines. $15.00 each, plus shipping & handling.
NOTE: Before lapping in valves, it'll be best to have
the valve seats reground or cut so they'll be in correct alignment with the
centerline of the valve
guides. Otherwise, the valves may not make a full
360º contact with the seats, and the engine will lose compression, be
hard to start, lose power and possibly make a popping sound through the
carburetor or out the exhaust. And be sure to set the clearances correctly,
too. And if the end of the valve stem is accidentally ground too short, it
can be made long again by building up welding with a MIG or TIG welder, then
ground to the correct valve clearance.
1-1/8" Diameter Exhaust
Valves for Kohler engine models K241/M10, K301/M12, early K321's, K482,
K532 and K582. Dimensions - Head diameter: 1-1/8"; Length: 4.656"; Stem diameter:
.309"; Face angle: 45º.
-
High quality aftermarket ordinary long lasting exhaust valve. Replaces Kohler
part # 235826-S. $16.00 each, plus shipping & handling.
-
OEM Kohler ordinary long lasting exhaust valve, part # 235826-S.
$41.56 each, plus shipping & handling.
-
High quality aftermarket
Stellite
exhaust valve (extremely hard and long lasting material; less prone to wear,
burning, and maintains valve to stem clearance longer). Replaces Kohler part
# 235838-S. $26.00 each, plus shipping & handling.
-
OEM Kohler
Stellite
exhaust valve (extremely hard and long lasting material; less prone to wear,
burning, and maintains valve to stem clearance longer), part # 235838-S.
$67.09 each, plus shipping & handling.
-
OEM Kohler
Stellite
exhaust valve (extremely hard and long lasting material; less prone to wear,
burning, and maintains valve to stem clearance longer), part # 48 016 01-S.
$79.12 each, plus shipping & handling.
-
Reground Exhaust Valve, used and in excellent condition. $10.00 each,
plus shipping & handling. (When available.)
1-3/8" Diameter Intake Valves for Kohler engine models K241/M10, K301/M12,
K321/M14, K341/M16, K482, K532 and K582. Dimensions - Head diameter: 1-3/8";
Length: 4.640"; Stem diameter: .3095"; Face angle: 45º.
-
High quality aftermarket ordinary long lasting intake valve. Replaces Kohler
part # 235008-S. $26.00 each, plus shipping & handling.
-
High quality aftermarket
Stellite
intake valve (extremely hard and long lasting material; maintains valve to
stem clearance longer). Replaces Kohler part # 235582-S. $26.00 each,
plus shipping & handling.
-
OEM Kohler ordinary long lasting intake valve, part # 235008-S. $47.48
each, plus shipping & handling.
-
OEM Kohler
Stellite
intake valve (extremely hard and long lasting material; maintains valve to
stem clearance longer), part # 235582-S. $95.63 each, plus shipping
& handling.
-
Reground Intake Valve, used and in excellent condition. $10.00 each,
plus shipping & handling. (When available.)
-
Grind 30º angle on intake valve face to improve engine performance or
for high performance use. (Seat must be recut or reground at a 31º
angle to match angle on valve face.) $5.00 extra.
1-3/8" Diameter Exhaust Valves for later model K321's/M14 (suffix
"D" and later), K341/M16, K532 and K582 (for K582 after serial # 9165450).
Dimensions - Head diameter: 1.373; Length: 4.639; Stem diameter: .3075; Face
Angle: 45º.
-
High quality aftermarket
Stellite
exhaust valve (extremely hard and long lasting material; less prone to wear,
burning, and maintains valve to stem clearance longer). Replaces Kohler part
# 237672-S. $26.00 each, plus shipping & handling.
-
OEM Kohler
Stellite
exhaust valve (extremely hard and long lasting material; less prone to wear,
burning, and maintains valve to stem clearance longer), part # 237672-S.
$67.09 each, plus shipping & handling.
-
Reground Exhaust Valve, used and in excellent condition. $10.00 each,
plus shipping & handling. (When available.)
NOTE: Before lapping in the valves, it's best to have
the valve seats recut or reground so they'll be in correct alignment with
the centerline of the valve
guides and so the valve face will make a full
360º contact with the seat, or the valves will leak and the engine will
lose compression, be hard to start, be low on power and possibly make a popping
sound through the carburetor or out the exhaust. And be sure to set the
clearances correctly, too.

Oversize Valves for High RPM Kohler Pulling Engines. Each can be used as
intake valve for Kohler 10-16hp competition pulling engines, or as exhaust
valve (with a 20%± bigger intake valve). Each has a 45º face angle
for a 46º seat, but can be reground to 30º to match a 31º
seat. OEM Kohler valve keepers/locks/collets and retainers
can be used with these valves.
-
1.500" High Alloy Steel Valve. .3115" stem diameter; requires 8mm
reamer to enlarge guide. NOTE: If engine block has
an OEM valve seat insert, remove the insert,
and cut or grind the [31º or 46º] seat angle for this valve to
sit directly into the cast iron block without enlarging the counterbore.
$50.00 each, plus shipping & handling.
-
1.600" High Alloy Lightweight Steel Valve. .311" (5/16") stem diameter.
$20.00 each, plus shipping & handling.
-
1.625" High Alloy Lightweight Steel Valve. .311" (5/16") stem diameter.
$20.00 each, plus shipping & handling.
-
1.720" High Alloy Lightweight Steel Valve. 8mm stem diameter; requires 8mm
reamer to enlarge guide. $20.00 each, plus shipping
& handling.
-
1.910" High Alloy Lightweight Steel Valve. Can be used with .085" offset
bronze valve guide. .312" stem diameter; requires 8mm
reamer to enlarge guide. $50.00 each, plus shipping
& handling.
-
1.920" High Alloy Lightweight Steel Valve. Can be used with .085" offset
bronze valve guide. .312" stem diameter; requires 8mm
reamer to enlarge guide. $50.00 each, plus shipping
& handling.
-
1.940" Titanium Valve. Can be used with .085" offset bronze valve guide.
.311" (5/16") stem diameter. $85.00 each, plus shipping & handling.
5/16" (.3125") Chucking Reamer.
Use to clean carbon deposits from used valve guides
or enlarge new guides for a 5/16" valve stem in flathead 7hp+ B&S, Kohler,
8hp+ Tecumseh, etc. engines. $15.00 each, plus shipping & handling.
8mm (.315") Chucking Reamer. Use to enlarge valve
guides for installation of oversize or aftermarket valves with an 8mm
valve stem in Kohler engine models K361, KT19, KT19 Series II, M20 and MV20,
or 1.720" oversize valve in 10-16hp Kohler engines. $15.00 each, plus
shipping & handling.
 High Quality Aftermarket K361
Valve. Can be used as intake or exhaust valve. Heat-treated, hardened steel.
Dimensions: head diameter: 1.437"; overall length: 4.165"±; face angle:
45º. Has 8mm chrome-plated stem. Requires 8mm
reamer to enlarge guide. OEM Kohler valve
keepers/locks/collets and retainer or rotator can
be used with this valve. OEM valve discontinued from Kohler. Replaces Kohler
part #'s 45 016 02-S (intake) and 45 017 01-S (exhaust).
-
Machined by A-1 Miller's. $50.00 each, plus shipping & handling.
8mm Chucking Reamer. Use to enlarge
valve guides for installation of aftermarket valves
with an 8mm valve stem in Kohler engine models K361, KT19, KT19 Series II,
M20 and MV20, or 1.720" oversize valve in 10-16hp Kohler engines.
$15.00 each, plus shipping & handling.
NOTE: Before lapping in valves, it's best to have the
valve seats recut
or reground so the angle will be in correct alignment with the centerline
of the valve guides
and so the valve face will make a full 360º contact with the seat, or
the valves will leak and the engine will lose compression, be hard to start,
be low on power and possibly make a popping sound through the carburetor
or out the exhaust. And be sure to set the clearances correctly, too.
Intake Valves for Kohler engine models KT17, KT17 Series II, MV16, M18
and MV18. Discontinued from Kohler. Replaces Kohler part #'s 52 016 05-S
(listed for M18, MV18), 52 017 01-S (listed for KT17), 52 017 02-S (listed
for KT17), 52 017 03-S (listed for KT17), 52 017 05-S (listed for KT17),
52 017 07-S (listed for MV16, M18) and 52 017-08-S (listed for MV16, M18).
Overall length: 3.641".
-
 A-1 Miller's High Quality
Aftermarket Intake Valve. Fits Kohler engine models KT17, KT17 Series II,
MV16, M18 and MV18. 45º face angle, 8mm diameter stem; requires 8mm
reamer to enlarge guide. OEM Kohler valve
keepers/locks/collets and retainers can be used with
this valve. $30.00 each, plus shipping & handling.
-
High Quality "Made in China" Kohler-Replicated Intake Valve. Fits Kohler
engine models KT17, KT17 Series II, MV16, M18 and MV18. 45º face angle
for engines with serial number 1816500646 and earlier. 5/16" diameter stem.
$30.00 each, plus shipping & handling.
Exhaust Valves for Kohler engine models KT17, KT17 Series II, MV16, M18
and MV18. Dimensions: head diameter: 1.373"; overall length: 3.641"; stem
diameter: .3075".
-
High Quality Kohler-Replicated "Made in China" Exhaust Valve. Has a 30º
face angle for engines after serial number 1917809286. 5/16" diameter stem.
Replaces Kohler part # 52 016 05-S. $30.00 each, plus shipping &
handling.
-
OEM Kohler Exhaust Valve for Kohler engine models M18 and MV18. Has a 30º
face angle for engines after serial number 1917809286. OEM Kohler part #
52 016 05-S. $62.70 each, plus shipping & handling.
Intake Valves for Kohler engine models KT19, KT19 Series II, M20 and MV20.
Discontinued from Kohler. Replaces Kohler part #'s 52 016 02-S, 52 017 03
(listed for KT19), 52 017 07-S, 52 017 08-S. Overall length: 3.926".
-
 A-1 Miller's High Quality
Aftermarket Intake Valve. Fits Kohler engine models KT19, KT19 Series II,
and early M20 and MV20. 45º face angle. This valve can be used for the
intake or exhaust to match a 46º seat, if desired. Has an 8mm diameter
stem; requires 8mm reamer to enlarge guide. OEM Kohler
valve keepers/locks/collets and retainers can be used
with this valve. $30.00 each, plus shipping & handling.
-
High Quality Kohler-Replicated "Made in China" Intake Valve. Fits Kohler
engine models M20 and MV20. 30º valve face; 5/16" diameter stem.
$30.00 each, plus shipping & handling.
Exhaust Valves for Kohler engine models KT19, KT19 Series II, M20 and
MV20. Discontinued from Kohler. Replaces Kohler part #'s 52 016 02-S, 52
017 03, 52 017 07-S, 52 017 08-S. Overall length: 3.926".
-
A-1 Miller's High Quality Aftermarket Exhaust Valve. Fits Kohler engine models
KT19, KT19 series II, and early M20 and MV20. 45º face angle; 8mm diameter
stem; requires 8mm reamer to enlarge guide.
$30.00 each, plus shipping & handling.
-
High Quality Kohler-Replicated "Made in China" Exhaust Valve. Fits Kohler
engine models M20 and MV20 with serial number 1917809296 and above. 30º
face angle; 5/16" diameter stem. Replaces Kohler part # 52 017 07-S.
$30.00 each, plus shipping & handling.
8mm Chucking Reamer. Use to enlarge
valve guides for installation of aftermarket valves
with an 8mm valve stem in Kohler engine models K361, KT19, KT19 Series II,
M20 and MV20, or 1.720" oversize valve in 10-16hp Kohler engines.
$15.00 each, plus shipping & handling.
NOTE: Before lapping in the valves, it'll be best to
have the valve seats recut or reground so they'll be in correct alignment
with the centerline of the valve
guides. Otherwise, the valves may not make a full
360º contact with the seats, and the engine will lose compression, be
hard to start, lose power and possibly make a popping sound through the
carburetor or out the exhaust. And be sure to set the clearances correctly,
too. And if the end of the valve stem is accidentally ground too short, it
can be made long again by building up welding with a MIG or TIG welder, then
ground to the correct valve clearance.
 High Quality Valve Lapping Tools
with Wooden Contoured Grip. After the valve faces and seats have been
professionally recut or reground in a valve refacer machine and valve seats
recut or reground with a valve seat grinder/grinding stone, and valve clearances
have been set to specifications, apply
valve grinding/lapping compound (which can be purchased
online and at virtually any auto parts store) on the valve faces and according
to valve size, use these tools to rotate the valve in its seat back and forth
by hand (lap-in the valves) to create a rough surface on the valve face and
seat so the valves will eventually wear into seats, forming a perfect seal
allowing the valves to last longer and so the engine will have more compression
to produce more power. IMPORTANT - Always thoroughly clean the valve
grinding/lapping compound from the valves and seats, and inspect the valve
face and seat for 360º contact before installation of the valves!
-
Small Valve Lapping Tool for Smaller Valves. Has 19/32" and 25/32" diameter
rubber suction cups. $6.00 each, plus shipping & handling.
-
Large Valve Lapping Tool for Larger Valves. Has 1-1/8" and 1-3/8" diameter
rubber suction cups. $8.00 each, plus shipping & handling.
è New valves for other makes
and models of small engines are also available. |
| Valve Guides FYI -(FYI - All
valve guides are made of either cast iron or bronze, not steel. Cast iron
and bronze are very hard and porous metals. They absorb oil and lubricate
the valve stems for longer wear.)
[Return to Previous Section, Paragraph
or Website]
 Stock (centered) Cast Iron Valve
Guides. Fits Kohler engine models K141, K160/K161 and K181/M8. Dimensions:
.310" I.D. x .5645" O.D. x 1.686" overall length. NOTE: Use my
valve guide removal and installation tool
to remove and install valve guides. After installation and for correct
valve stem clearance, guide may need to be enlarged with a 5/16"
reamer
Ê. And before installing valve,
apply clean motor oil, gear oil or lubricating grease on valve stem to provide
lubrication of the guide and stem.
-
High quality aftermarket. $17.00 each, plus shipping & handling.
-
OEM Kohler part # 230007-S. $17.50 each, plus shipping &
handling.
-
NOTE: The alternative to installing new replacement
valve guides is to have the old [worn] valves reamed for installation of
thin-wall bronze sleeves/liners (bushings), which can be installed by a reputable
automotive machine shop. Bronze valve guide sleeves/liners are a low-cost
alternative to replacing the entire guide in most engines. Bronze also last
longer than cast iron guides because bronze is harder material and it retains
more oil for better lubrication of the valve stem.
 Stock (centered) Cast Iron Valve
Guides. Fits Kohler engine models K241/M10, K301/M12, K321/M14, K341/M16,
K482, K532 and K582. Dimensions: .310" I.D. x .629" O.D. x 2.135" overall
length. NOTE: Use my valve guide removal and
installation tool to remove and install valve guides. After
installation and for correct valve stem clearance, guide may need to be enlarged
with a 5/16" reamer
Ê. And before installing valve,
apply clean motor oil, gear oil or lubricating grease on valve stem to provide
lubrication of the guide and stem. Discontinued from Kohler. Replaces
Kohler part # 235007-S.
-
High quality aftermarket. $18.00 each, plus shipping &
handling.
-
NOTE: The alternative to installing new replacement
valve guides is to have the old [worn] valves reamed for installation of
thin-wall bronze sleeves/liners (bushings), which can be installed by a reputable
automotive machine shop. Bronze valve guide sleeves/liners are a low-cost
alternative to replacing the entire guide in most engines. Bronze also last
longer than cast iron guides because bronze is harder material and it retains
more oil for better lubrication of the valve stem.
 Valve Guides. Fits Kohler engine
model K361 cylinder head.
-
Intake Valve Guide. New Old Stock. Discontinued OEM Kohler part # 45 316
02-S. $20.00 each, plus shipping & handling. (When
available.)
-
Exhaust Valve Guide and Seal Kit. OEM Kohler part # 45 755 11-S.
$58.70 per kit, plus shipping &
handling.
-
NOTE: The alternative to installing new replacement
valve guides is to have the old [worn] valves reamed for installation of
thin-wall bronze sleeves/liners (bushings), which can be installed by a reputable
automotive machine shop. Bronze valve guide sleeves/liners are a low-cost
alternative to replacing the entire guide in most engines. Bronze also last
longer than cast iron guides because bronze is harder material and it retains
more oil for better lubrication of the valve stem.
 Stock (centered) Cast Iron Valve
Guides. Fits Kohler engine models MV16, KT17, KT17 Series II, KT19, KT19
Series II, M18, MV18, M20 and MV20. Discontinued from Kohler. Replaces Kohler
part # 52 316 08-S. NOTE: Use my valve guide
removal and installation tool to remove and install valve guides.
After installation and for correct valve stem clearance, guide may need to
be enlarged with a 5/16" reamer
Ê. And before installing valve,
apply clean motor oil, gear oil or lubricating grease on valve stem to provide
lubrication of the guide and stem. To replace the valve guides in
Kohler engine models MV16, KT17, KT17 Series II, KT19, KT19 Series II, M18,
MV18, M20 or MV20 with the engine fully assembled and cylinders fastened
to the crankcase, first remove the springs, retainers and valves, and break
off the protruding end of the guide in the valve spring compartment with
a cold chisel and hammer, then drive out the remaining portion of the guide
into the spring compartment. But with the cylinders off the crankcase, just
drive the guides out without breaking them off first. Install new guides
by driving them in until flush with the surface of the port. Then ream the
guides so the valve stems will have proper clearance.
-
High quality aftermarket. Valve Guide for Exhaust Valve. Outside diameter
same entire length of the guide. Dimensions: .310" I.D. x .5645" O.D. x 1.378"
overall length. Machined by A-1 Miller. $15.00 each, plus shipping
& handling.
-
High quality aftermarket. Valve Guide for Intake Valve. Has machined step
(partial reduced O.D.) for installation of valve stem seal (below
Ê). (Valve stem seal required to prevent
crankcase oil from being suctioned into the combustion chamber through the
guide.) Dimensions: .310" I.D. x .5645" O.D. x .500" reduced O.D. (for
seal) x 1.378" overall length. Machined by A-1 Miller. $20.00 each,
plus shipping & handling.
NOTE: The alternative to installing new replacement
OEM-type valve guides is to have the old [worn] guides reamed for installation
of thin-wall bronze sleeves/liners (bushings), which can be installed by
a reputable automotive machine shop. Bronze valve guide sleeves/liners are
a low-cost alternative to replacing the entire guide in most engines. Bronze
also last longer than cast iron guides because bronze is harder material
and it retains more oil for better lubrication of the valve stem.
High Quality, High Speed Steel
5/16" (.3125") Chucking Reamer. Use to clean carbon deposits from used valve
guides or enlarge new guides for a 5/16" valve stem in flathead 7hp+ B&S,
Kohler, 8hp+ Tecumseh, etc. engines. $15.00 each, plus shipping &
handling. |
 Valve
Guide Removal and Installation Tool for use with virtually all flathead
block Kohler engines. IMPORTANT: The engine block could crack if guides
are removed or installed with a hydraulic press! Therefore, it's
best to use a big, heavy hammer to drive out the old guide into the valve
spring chamber and use the same hammer to install the new guide from inside
the valve pocket. Install new guides until flush with the port. Tool can
be used for OEM Kohler and aftermarket offset valve guides. Dimensions: .300"
pilot x 1/2" diameter x 5" overall length.
|
High Quality,
High Speed Steel Chucking Reamers. Precision ground to provide correct
stem to guide clearance. Will not allow valve stem to be too loose or too
tight in guide. When reaming guide, use an electric hand drill with plenty
of oil in guide. Before installing valve, apply motor oil on stem for lubrication
to reduce wear to guide and prevent valve from sticking.
[Return to Previous Section, Paragraph
or Website]
-
5/16" (.3125") Chucking Reamer. Use to clean carbon deposits from used valve
guides or enlarge new guides for a 5/16" valve stem in flathead 7hp+ B&S,
Kohler, 8hp+ Tecumseh, etc. engines. $15.00 each, plus shipping &
handling.
-
8mm Chucking Reamer. Use to enlarge valve guides for installation of aftermarket
valves with an 8mm valve stem in Kohler engine models K361, KT19, KT19 Series
II, M20 and MV20, or 1.72" oversize valve in 10-16hp Kohler engines.
$15.00 each, plus shipping & handling.
-
11/32" (.3438") Chucking Reamer. Use to enlarge guides for installation of
small block Chevy V8 valves in Kohler competition pulling engines.
$12.50 each, plus shipping & handling.
|
 Valve
Stem Seals. Required to prevent crankcase oil from draining down into
(OHV) or being suctioned into (flatheads) the combustion chamber through
the guide. Silicone rubber w/metal clamp. NOTE: Apply clean motor oil,
gear oil or lubricating grease on valve stem before inserting valve through
seal to provide lubrication of the stem, guide and seal. Dimensions:
5/16" I.D. (stem) x .500" I.D. (guide) x .600" O.D. NOTE: Some early production
KT17 models do not use valve stem seals.
-
High quality aftermarket. Fits Kohler engine models K361, MV16, KT17, KT17
Series II, KT19, KT19 Series II, M18, MV18, M20 and MV20. Replaces Kohler
part # 52 032 13-S. $4.00 each, plus shipping & handling.
-
Fits Kohler engine models K361, MV16, KT17, KT17 Series II, KT19, KT19 Series
II, M18, MV18, M20 and MV20. OEM Kohler part # 52 032 13-S. $22.40
each, plus shipping & handling.
[Return to Previous Section, Paragraph
or Website]
|
 New-Style One-Piece Camshafts.
Fits Kohler engine models K141, K160/K161, K181 and Magnum M8. With ground
points lobe and ACR. IMPORTANT: To prevent seizing of the camshaft when
the engine is ran for the first time, apply clean motor oil, gear oil or
lubricating grease on cam pin before installing cam. This will better protect
the parts until crankcase oil reaches them. When reusing lifters, roughen
lifter faces with 600 grit sandpaper to produce a new wear pattern and so
the lifters will rotate slightly with every lift to prevent wear to the cam
lobes. And the K141, K160 and K161 cams can't be used in the K181 engine
due to its longer stroke. ACR = automatic compression release. FYI: Being
the automatic compression release (ACR) [hair-like] spring (part number 47
089 01-S) is no longer available from Kohler or in aftermarket, if yours
places little or weak pressure against the flyweights, it can be re-bent
to its original shape to place sufficient tension against the flyweights.
I do this all the time and it works great. It's became regular practice with
me. OEM Kohler part #'s 41 010 05-S.
-
Used and in excellent condition. Points lobe, lifter lobes, gear teeth
and ACR are all in good condition. $80.00 each, plus shipping
& handling. (When available.)
-
New. $190.30 each, plus shipping & handling.
Camshafts. Fits Kohler Magnum engine model M8, can also be used in the K-series
K141, K160/K161, K181 engines with solid state ignition. No points lobe.
With ACR. IMPORTANT: To prevent seizing of camshaft on pin when engine
is ran for the first time, apply plenty of motor oil on cam pin and inside
cam before installing cam in engine. This will better protect the parts until
crankcase oil reaches them. FYI: Being the automatic compression release
(ACR) [hair-like] spring (part number 47 089 01-S) is no longer available
from Kohler or in aftermarket, if yours places little or weak pressure against
the flyweights, it can be re-bent to its original shape to place sufficient
tension against the flyweights. I do this all the time and it works great.
It's became regular practice with me. OEM Kohler part # 41 010 07-S.
-
Used and in excellent condition. Lifter lobes, gear teeth and ACR are
all in good condition. $55.00 each, plus shipping & handling.
(When available.)
-
New. $109.70 each, plus shipping & handling.
High performance camshafts for a Kohler K181 or M8 engine are available
from Vogel Manufacturing Co. at:
http://www.vogelmanufacturing.com. |
New-Style, One-Piece Camshafts. Fits Kohler K-series or Magnum engine models
K241/M10, K301/M12, K321/M14 or K341/M16. New-style, one-piece K-series camshafts
with ACR. Can be used in a K-series engine as an upgrade from the older two-piece
camshaft. IMPORTANT: To prevent seizing of camshaft on pin when engine
is ran for the first time, apply plenty of motor oil on cam pin and inside
cam before installing cam in engine. This will better protect the parts until
crankcase oil reaches them. When reusing lifters, roughen lifter faces with
600 grit sandpaper to produce a new wear pattern and so the lifters will
rotate slightly with every lift to prevent wear to the cam lobes. And the
lobes on the used cams have not been reground for performance.
-
Used K-series Camshaft. Points lobe, lifter lobes, gear teeth and ACR are
all in good condition. Discontinued OEM Kohler part # 47 010 09-S.
$75.00 each, plus shipping & handling. (When available.)
-
New K-series (or Magnum) Camshaft. (Has slightly more duration than cam below
Ê.) OEM Kohler part # 45 010 06-S.
$193.40 each, plus shipping & handling.
-
New K-series (or Magnum) Camshaft. (Has slightly less duration than cam above
È.) OEM Kohler part # 47 010 06-S.
$208.20 each, plus shipping & handling.
-
Used Magnum Camshaft. (No points lobe.) Lifter lobes, gear teeth and ACR
are all in good condition. Discontinued OEM Kohler part # 47 010 11-S.
$65.00 each, plus shipping & handling. (When available.)
|
|
 For Kohler engine models K241/M10,
K301/M12, K321/M14, K341/M16 and K361. This particular cam profile design
provides more torque (lugging power) and improved engine performance from
3,800 to 4,200 RPM. Suitable for stock competition pulling. The lobes on
this cam are not welded up. They are professionally reground to have the
factory stock lift (.324"), but have slightly increased duration, which makes
it perform best at the 4,000 RPM range. This cam will pass tech for a stock
cam. It will add about 3 more horsepower and 2 ft. lbs. of torque to an average
stock engine with more lugging power than the OEM Kohler K361 cam. This cam
builds up the compression about 6% more than the K361 cam, and approximately
11% more than the flathead engine cams at around 4,000 RPM. This cam sounds
just like an OEM Kohler stock cam. You can't hear the difference out the
exhaust. It's perfect for a competing stock pulling tractor or for heavy
lawn and garden work.
  When used for
competition pulling, this cam performs best with a set of our
BLUE medium performance valve springs
and retainers (below Ê), reworked and
undercut stock size valves, intake and exhaust port runners made bigger,
and a bored-out and reworked carburetor. A bored-out venturi and reworked
carburetor is when it is modified for maximum performance for general yard
and garden use, and/or for competition pulling. All these performance
enhancements needs to be made to increase the airflow in and out of the
combustion chamber so the engine can produce more power and torque. If there's
any restriction in and out of the combustion chamber, this cam will not be
able to perform at 100% efficiency, and the engine will not be able to produce
as much power and torque as it is capable of. The duration and centerline
of the lobes on this cam helps the engine produce the most power and torque
between 3,600-4,500 RPM. At higher RPM, due to the limited duration, no
substantial gain in power or torque will result. If the engine is built to
the max, tractor is geared correctly and traction is adequate, engine shouldn't
bog down much with this cam. It'll keep pumping out the ponies right out
the gate! Use with the OEM Kohler 1" base lifters. When reusing lifters,
roughen lifter faces with 600 grit sandpaper in an erratic pattern to produce
a new wear pattern and so the lifters will rotate slightly with every lift
to prevent wear to the cam lobes. Use the
recommended break-in oil,
too. This cam installs just like the OEM Kohler cam. Just thoroughly lubricate
the inside with motor oil, align the timing marks on the gear teeth, set
the end-play and valve clearances at .010" for the intake and .014" for the
exhaust, and it should be good to go!
-
$125.00 each on YOUR Kohler K241/M10, K301/M12, K321/M14 or
K341/M16 camshaft core, plus return shipping & handling.
-
$150.00 each with acceptable core trade-in for exchange, plus shipping
& handling.
-
$175.00 each outright with no core trade-in, plus shipping & handling.
-
NOTE: Only the one-piece camshaft (originally with the automatic compression
release) will be accepted as a core. Core must be in good condition, no cracks,
never reground or welded on before, gear teeth in good condition, minimal
wear on points lobe and preferably the compression release tang intact.
-
When sending a cam to A-1 Miller's, please include a note with your name,
complete mailing address, phone number and a description of what you want
done and a list of any other parts you may need, and we will contact you
when the cam (and parts) are ready to be sent back to you. Please send to:
A-1 Miller's Performance Enterprises, 1501 W. Old Plank Rd., Columbia, MO
(Missouri) 65203-9136 USA.
FYI: When the cam lobes are reground, metal is removed from the base
circle which reduce the diameter of the base circle in order retain maximum
lift at the point on the lobe. The ramps on the lobes are also "rounded"
to give the cam more duration. The cam grinding machine's grinding stones
are about 1" wide, and after the cam grinding process, I have to manually
grind metal away from the sides of the base circles so the edge of the lifters
won't "ride up" on the ungrounded areas and hold the valves slightly open
when they're supposed to be fully closed. I have to do this to every reground
cam I have in stock. Some cam grinders apply a
phosphate conversion coating (which resembles flat or matte
black paint) to the entire camshaft, especially the lobes. This coating is
to prevent galling (wear) during the break-in period and it also covers the
secondary grinding areas on each side of the base circles of the lobes so
they can't be readily easily seen or noticed. Motor oil with high zinc phosphate
content will also protect the cam lobes and other internal moving engine
parts from wear during break-in. Otherwise, if everything else is set up
correctly with your engine, this cam should work fine. There's no need to
be concerned when you receive the cam and see the metal ground away. Also,
some of the cams I have, the points lobe is slightly worn. (It's hard to
find a good used, 100% unworn cam nowadays.) I include a stainless steel
points pushrod with a flared-end to make contact with the unworn areas of
the lobe. The pushrod will need to be installed from inside the block before
the cam is installed. IMPORTANT: To prevent seizing of camshaft on pin when
engine is ran for the first time, apply plenty of motor oil on cam pin and
inside cam before installing cam in engine. This will better protect the
parts until crankcase oil reaches them.
Medium Performance (Blue) Single
Valve Spring Set for Kohler engine models K241/M10, K301/M12, K321/M14, K341/M16
and K361. Can also be used in Kohler opposed (flathead) twin cylinder engine
models KT17 Series II, KT19 Series II, M18, M20, K482, K532 and K582 for
increased performance or competition pulling and with the stamped steel valve
retainers below. These springs are more aggressive than OEM Kohler valve
springs, but less aggressive than the red valve springs below. Suitable for
competition pulling engines only; not recommended for general yard or garden
use. Can be easily compressed with a small engine
valve spring compressor tool. Designed
for the OEM Kohler stock cam or our reground 4,000± RPM torque cam with
stock lift in pulling engines running up to 5,000 RPM for quicker valve closing
to prevent valve float.
(Newton's third law of motion.) Valve float allows the engine
to momentarily lose compression, cause fuel to spray out the carburetor and
the engine will make a "hunt, hunt" sound at high RPM. As a result, the engine
will lose power, and as the weight box on the sled moves forward upon on
the tractor, the engine may not be able to recover. These springs can be
used with stock size valves, OEM Kohler stamped steel/non-rotator retainers
and keepers/locks/collets. Do not use with OEM
Kohler valve rotators with these springs! Rotators are thicker, and being
these performance springs are much longer (and slightly stiffer) than stock
springs (that require rotators), coil bind may result at full valve lift,
which could break the cam. Sold as a matched set. One spring is no stiffer
than the other. Can be easily compressed with a standard small engine valve
spring compressor. Same diameter as OEM Kohler springs. Dimensions: .697"
I.D.; .953" O.D.; 2" uncompressed height. specifications: Seat load: 27 lbs.
@ 1.650"; Open load: 70 lbs. @ 1.200"; Coil bind: .920"; Spring rate (lbs/inch):
96. Made by Comp Cams.
-
New. $10.00 per set of two, plus shipping & handling.
High Quality, High Performance,
Lightweight, Hardened 4140 Chrome-Moly Steel 7º Valve Spring Retainers.
Not stamped steel. 1" O.D.; use with medium- or high performance valve springs
above È.
-
New. $10.00 per set of two, plus shipping & handling.
|
High Performance Camshaft for Hot-Stock and Stock-Altered Kohler Competition
Pulling Engines -
 Fits Kohler engine models K241/M10,
K301/M12, K321/M14, K341/M16 and K361 Competition Pulling Engines. This is
a much more aggressive camshaft than above
È. Lobes are hard-surface welded on
an OEM Kohler cast cam, then professionally precision ground to give it a
stock lift (.324"-.330"), but much more duration (290º).
 This cast cam
performs best with high performance (red) valve
springs (below Ê), reworked and undercut
stock size or oversize valves for more airflow, ports made larger and the
venturi in the carburetor bored out. If there's any restriction in and out
of the combustion chamber, the cam will not be able to perform at 100% efficiency
for better engine performance. Due to the increased duration, with an open
header pipe, this cam produces a loud and attention-getting BOOM, BOOM sound
at idle, and the sound "smoothes out" at higher and steady RPM, and then
produces a bellowing, rumbling,
crackling sound and backfire upon deceleration. This cam might cause slight
carburetor flooding or "loading up on fuel" at slow idle;
click
here to learn about this. This cam profile helps the engine produce the
most power and torque at wide open throttle operation. If used in a 4,000±
RPM engine, no substantial increase in power will result. To be used with
wide base lifters. When reusing lifters, roughen
lifter faces with 600 grit sandpaper in an erratic pattern to produce a new
wear pattern and so the lifters will rotate slightly with every lift to prevent
wear to the cam lobes. Use the
recommended break-in oil,
too. This cam installs just like the OEM Kohler cam. Just thoroughly lubricate
the inside with motor oil, align the timing marks on the gear teeth, set
the end-play and valve clearances at .010" for the intake and .014" for the
exhaust, and it should be good to go! NOTE: If methanol fuel is going to
be burned in the engine and the ignition timing advanced more than 25º
BTDC, the automatic compression release mechanism on this cam will need to
be removed and a high torque starter motor will also need to be used. Otherwise,
the timing would be so far advanced, the spark will occur when the compression
release opens the exhaust valve. This will cause the engine to be hard to
start, if it would start at all. IMPORTANT: To prevent seizing
of camshaft on pin when engine is ran for the first time, apply plenty of
motor oil on cam pin and inside cam before installing cam in engine. This
will better protect the parts until crankcase oil reaches them.
-
$165.00 each, plus return shipping & handling, on
YOUR Kohler K241/M10, K301/M12, K321/M14 or K341/M16 camshaft
to be welded up and reground for Hot-Stock or Stock-Altered wide open throttle
operation.
-
$190.00 each with acceptable core trade-in for exchange, plus shipping
& handling.
-
$215.00 each outright with no core trade-in, plus shipping & handling.
-
NOTE: Only the one-piece K241/M10, K301/M12, K321/M14 or K341/M16 camshafts
(originally with automatic compression release) will be accepted as a core.
Older, out-dated steel cams for Kohler 10-16hp engines will also be accepted
as a core. Core must be in good condition, no cracks, gear teeth in good
condition, minimal wear on points lobe and preferably the compression release
tang intact. If core has a worn lifter lobe, but rest of cam is in good
condition, that will be fine because it will need to be welded up (then reground)
anyway.
-
When sending a cam to A-1 Miller's, please include a note with your name,
complete mailing address, phone number and a description of what you want
done and a list of any other parts you may need, and we will contact you
when the cam (and parts) are ready to be sent back to you. Please send to:
A-1 Miller's Performance Enterprises, 1501 W. Old Plank Rd., Columbia, MO
(Missouri) 65203-9136 USA.
High Performance (Red) Single
Valve Spring Set for Kohler engine models K241/M10, K301/M12, K321/M14, K341/M16
and K361. These are more aggressive than the blue valve springs above
È. Suitable for competition pulling
engines that run at very high RPM or wide open throttle. Can be easily compressed
with a small engine valve spring compressor
tool. Designed for cast or steel cams with up to .400" lift in Hot-Stock
or Stock-Altered competition pulling engines that run at wide open throttle
for quicker valve closing to prevent valve float.
(Newton's third law of motion.) Valve float allows the engine
to momentarily lose compression, cause fuel to spray out the carburetor and
the engine will make a "hunt, hunt" sound at high RPM. As a result, the engine
will lose power, and as the weight box on the sled moves forward upon on
the tractor, the engine may not be able to recover. These springs can be
used with stock size or oversize valves, OEM Kohler stamped steel/non-rotator
retainers and keepers/locks/collets. Do not use
with OEM Kohler valve rotators with these springs! Rotators are thicker,
and being these performance springs are much longer (and much stiffer) than
stock springs that require rotators, coil bind may result at full valve lift,
which could break the cam. Sold as a matched set. One spring is no stiffer
than the other. Can be easily compressed with a standard small engine
valve spring compressor tool. Same diameter
as OEM Kohler springs. Dimensions: .697" I.D.; .953" O.D.; 2" uncompressed
height. specifications: Seat load: 55 @ 1.500"; Open load: 127 @ 1.000";
Coil bind: .950"; Spring rate (lbs/inch): 144. Made by Comp Cams.
-
New. $12.00 per set of two, plus shipping & handling.
High Quality, High Performance,
Lightweight, Hardened 4140 Chrome-Moly Steel 7º Valve Spring Retainers.
Not stamped steel. Fits Kohler engine models K141, K160/K161, K181/M8, K241/M10,
K301/M12, K321/M14, K341/M16, K361, KT17, KT17 Series II, KT19, KT19 Series
II, MV16, M18, MV18, M20, MV20, K482, K532 and K582. To be used with our
BLUE medium performance valve springs
or our RED high performance valve springs,
or when used with OEM Kohler valve springs, the [longer] 1-11/16" or 1-3/4"
uncompressed height spring must be used. Replaces OEM Kohler part # 230011-S.
-
New. $10.00 per set of two, plus shipping & handling.
|
 OEM Kohler Valve Springs
specially designed for Kohler engine models K141, K160/K161, K181/M8. Each
has no dampening end. Recommended for general lawn and garden use. Suitable
for up to 3,600± RPM with cam having stock lift. NOTE: Used valve
springs rarely lose adequate pressure. They can be reused as long as they're
not rusted. The rust-pitted areas is a weak spot and when in operation and
under pressure, the spring could break.
-
1-9/16" uncompressed height; use only with valve rotator. Rotator
recommended for exhaust valve to scrape away any carbon deposits lodged between
valve face and seat to prevent valve from burning. Discontinued OEM Kohler
part # 230168-S. Used and in excellent condition, and rust-free.
$10.00 each, plus shipping & handling. (When available.)
-
1-11/16" uncompressed height; use only with stamped steel valve
retainer. Suitable for intake valve. Discontinued OEM Kohler part # 230010-S.
Used and in excellent condition, and rust-free. $9.00 each, plus shipping
& handling. (When available.)
  OEM Kohler Valve Springs for Kohler K-series and Magnum engine
models K241/M10, K301/M12, K321/M14, K341/M16, K361, K482, K532 and K582.
Each has dampening end to lessen harmonic vibrations at higher RPMs. Recommended
for general lawn and garden use. Suitable for up to 3,600± RPM with
cam having stock lift. Most Kohler engines have the short valve spring (1-9/16")
with the rotator on the exhaust valve (to scrape away any carbon deposits),
and the long spring (1-3/4") with the stamped steel retainer on the intake
valve. NOTE: Used valve springs rarely lose adequate pressure. They can
be reused as long as they're not rusted. The rust-pitted areas is a weak
spot and when in operation and under pressure, the spring could break.
-
1-9/16" uncompressed height; use only with valve rotator. Rotator
recommended for exhaust valve to scrape away any carbon deposits lodged between
valve face and seat to prevent valve from burning. Used and in excellent
condition. Discontinued OEM Kohler part # 235168-S. $5.00 each, plus
shipping & handling. (When available.)
-
1-3/4" uncompressed height; use only with stamped steel valve retainer.
Suitable for intake valve.
-
Used and in excellent condition, and rust-free. $5.00 each, plus shipping
& handling. (When available.)
-
New. OEM Kohler part # 235010-S. $10.45 each, plus shipping &
handling.
 OEM Kohler Valve Spring specially
designed for Kohler KT-series and Magnum engine models MV16, KT17, KT17 Series
II, KT19, KT19 Series II, M18, MV18, M20 and MV20. Has no dampening end.
Recommended for general lawn and garden use. Suitable for up to 3,600±
RPM with cam having stock lift.
-
New. 1-9/16" uncompressed height; use only with valve rotator. Rotator
recommended for exhaust valve to scrape away any carbon deposits lodged between
valve face and seat to prevent valve from burning. OEM Kohler part # 25 089
01-S. $4.15 each, plus shipping & handling.
|
 OEM Kohler Stamped Steel
Valve Retainer. Used mainly for intake valve. Fits Kohler K-series and Magnum
K141, K160/K161, K181/M8, K241/M10, K301/M12, K321/M14, K341/M16, K361, KT17,
KT17 Series II, KT19, KT19 Series II, MV16, M18, MV18, M20, MV20, K482, K532
and K582. Use only with long (1-3/4") OEM Kohler or the medium-, or
high-performance valve springs above È.
May cause lifter rattle, valve float and engine misfire if used with the
short (1-9/16") valve spring. For 5/16" diameter valve stems. Accepts 7º
keepers/locks/collets below
Ê. .998" outside diameter. Made of
lightweight heat-treated, hardened stamped steel.
-
Used and in excellent condition. $4.00 each, plus shipping & handling.
(When available.)
-
New. OEM Kohler part # 230011-S. $6.30 each, plus shipping & handling.
 OEM Kohler Valve Rotator. Used
mainly for exhaust valve. Slightly rotates valve as it opens to scrape away
any carbon deposits from valve face and seat to prevent burning of valve
face. Fits Kohler K-series and Magnum K141, K160/K161, K181/M8, K241/M10,
K301/M12, K321/M14, K341/M16, K361, KT17, KT17 Series II, KT19, KT19 Series
II, MV16, M18, MV18, M20, MV20, K482, K532 and K582. Also fits 6hp-18hp single
and opposed (flathead) twin cylinder Briggs and Stratton engines exhaust
valves. Use only with short (1-9/16") valve spring above
È. If used with longer valve spring,
coil bind may occur, resulting in possible cam breakage. For 5/16" diameter
valve stems. Accepts 7º keepers/locks/collets
below Ê. 1.080" outside diameter.
-
Used Kohler part. $12.00 each, plus shipping & handling. (When
available.)
-
New. OEM Kohler part # 52 413 01-S. Replaces Briggs & Stratton part #
691939. $23.75 each, plus shipping & handling.
|
 5/16" Valve
Keepers/Locks/Collets for all Kohler K-series and Magnum K141-K361 cast
iron engines, and KT series and Magnum twin cylinder flathead engines, including
K482, K532 and K582. Also fits 6hp-18hp single- and twin-cylinder Briggs
& Stratton exhaust valves. Can be used with 8mm valve stems and high
performance valve springs above È. NOTE:
Valve keepers usually don't wear or get damaged because they don't rotate
on the valve stem. To check yours, with a valve out of the engine, install
a valve retainer or rotator on the valve, then the keepers, and then pull
back hard on the retainer or rotator. If the retainer or rotator holds or
squeezes the keepers tight in the groove, then they can be reused. Replaces
Briggs & Stratton part # 494553.
-
Race quality aftermarket. Replaces Kohler part # 41 755 10-S. $3.00
per set (two keepers for one valve), plus shipping & handling.
-
OEM Kohler part # 41 755 10-S. $6.35 per set (two keepers for one
valve), plus shipping & handling.
[Return To Previous Paragraph, Section
or Website]
|
 OEM Kohler Stamped Steel
Valve Spring Stabilizer. Reduces harmonic vibrations of the valve spring
at high RPMs. Fits Kohler K-series and Magnum K141, K160/K161, K181/M8, K241/M10,
K301/M12, K321/M14, K341/M16, K361, KT17, KT17 Series II, KT19, KT19 Series
II, MV16, M18, MV18, M20, MV20, K482, K532 and K582. For 5/8" O.D. valve
guides. OEM Kohler part # 235011-S.
-
Used and in excellent condition. $2.00 each, plus shipping & handling.
(When available.)
-
New. $3.55 each, plus shipping & handling.
|
 High
Quality, Heavy Duty Scissors-Type Small Engine Valve Spring Compressor
Tool. Designed to compress OEM Kohler stock, our medium- and high-performance
valve springs, but not the double or extremely heavy single springs. Can
be used on flathead engines (valves in block) or Kohler K361 OHV cylinder
head. Replaces Briggs & Stratton part # 19063.
-
$26.00 each, plus shipping & handling.
|
 High Quality, Heavy Duty C-Shaped
Small Engine Valve Spring Compressor Tool. Designed to compress OEM Kohler
stock, our medium- and high-performance valve springs, but not the double
or extremely heavy single springs. Can be used on flathead engines (valves
in block) or Kohler K361 OHV cylinder head. Replaces Lisle part # 23300.
-
$35.00 each, plus shipping & handling.
|
 High Quality, Extreme Duty
Clamp-Type Valve Spring Compressor Tool. Designed to compress OEM Kohler
stock, our medium- and high-performance valve springs, and the extremely
heavy single or double springs. Can be used on flathead engines (valves in
block) or Kohler K361 OHV cylinder head.
-
$20.00 each, plus shipping & handling.
|
 Valve Lifter/Tappet. Fits
older Kohler engine models K141 and K160/K161. For use with exhaust valve
only and two-piece camshaft with automatic timing advance in K141 engines
prior to specification suffix "C" and in K161 engines prior to specification
suffix "J". Replace worn lifter to prevent erratic valve action and/or
premature cam lobe wear. Non-adjustable. Grind end of valve stem with piston
positioned at TDC on compression stroke to set valve clearances. Dimensions:
1.964" overall length x 1.115" base diameter x .308" stem diameter. Discontinued
OEM Kohler part # 230013-S.
-
New Old Stock or used and in excellent condition. $15.00 each, plus
shipping & handling. (When available.)
Valve Lifter/Tappet. Fits newer Kohler engine models K141, K160/K161, K181
and M8. For use with intake or exhaust valve and one-piece camshaft with
automatic compression release (ACR). Replace worn lifter to prevent erratic
valve action and/or premature cam lobe wear. Non-adjustable. Grind end of
valve stems with piston positioned at TDC on compression stroke to set valve
clearances. Dimensions: 2.020" overall length x 1.115" base diameter x .308"
stem diameter. Discontinued OEM Kohler part # 232777-S.
-
New Old Stock or used and in excellent condition. $16.00 each, plus
shipping & handling. (When available.)
 Valve
Lifters/Tappets. Fits Kohler engine models K241/M10, K301/M12, K321/M14 and
K341/M16. Dimensions: .6225" stem diameter x 1.060" base diameter x 2.750"-3.000"
overall length: (adjustable). Use for OEM Kohler stock or performance cams
with up to .340" lift. Set valve clearances with piston positioned at TDC
on compression stroke. OEM Kohler part # D-235327-S.
-
Used and in excellent condition. $20.00 each, plus shipping &
handling. (When available.)
-
New. $41.92 each, plus shipping & handling.
1.280" Wide Base Adjustable Valve Lifters (Tappets).
Fits Kohler engine models K241/M10, K301/M12, K231/M14 and K341/M16. For
competition pulling engines only using high-performance cams with .400"-.575"
lift. Set valve clearances with piston positioned at TDC on compression stroke.
May need to reuse 7/16" adjusters from OEM Kohler lifters with these wide
base lifters. (These are NOT Jeep lifters! Jeep lifters will not fit Kohler
engines.)
-
Used and in excellent condition. $15.00 each, plus shipping &
handling. (When available.)
-
New. $23.00 each, plus shipping & handling.
 Valve Lifter/Tappet for Kohler
engine models KT17, KT17 Series II, KT19, KT19 Series II, MV18 (w/specification
#'s 58560, 58561) and MV20 (w/specification #'s 57527, 57528). Used with
serial number 1917809285 and before. 2.895" overall length. No longer available
from Kohler. OEM Kohler part #'s 52 019 01-S, 52 019
02 -S. (The OEM manufacturers are phasing out many parts for flathead
engines due to EPA smog emissions. But some parts may still be available
in aftermarket.)
-
Used and in good condition. $10.00 each, plus shipping & handling.
Valve Lifter/Tappet for Kohler engine models MV16, M18, MV18 (except w/spec
#'s 58560, 58561), M20 and MV20 (except w/specification #'s 57527, 57528).
Used with serial number 1917809286 and after. 2.885" overall length. OEM
Kohler part # 52 019 03-S.
-
New. $15.25 each, plus shipping & handling.
|
 Camshaft
Pin. Fits Kohler K-series and Magnum engine models K241/M10, K301/M12, K321/M14,
K341/M16 and K361. 1144 Stress Proof Steel Pin. 7" length x 1/2" diameter.
Discontinued from Kohler. Replaces Kohler part # 235053-S (K-series; 7" length)
and 47 380 09-S (Magnum; 6-3/4" length). $12.00 each, plus shipping
& handling.
  New Expansion Cup Plugs for End of Cam Pin used on Kohler Magnum
engine models M10-M16.
-
Tapered Expansion Cup Plug. High quality aftermarket. $1.00 each,
plus handing & handling.
-
Shallow Expansion Cup Plug. OEM Kohler part # 25 139 50-S. $2.10 each,
plus handing & handling.
|
  Camshaft
Shims/Spacers/Thrust Washers. Fits Kohler engine models K141, K161, K181,
M8, and Engine Control on Kohler Command Single Cylinder CV11-16, CV460-465,
CV490-495. NOTE: The aftermarket shims are the only ones I can find that
closely match the dimensions of the OEM shim.
-
.004" (0.1mm) Thickness x 12mm I.D. x 18mm O.D. High quality aftermarket.
1074-1095 Spring Steel Material; Rockwell B85 Hardness. .50¢
each, plus shipping & handling.
-
.008" (0.2mm) Thickness x 12mm I.D. x 18mm O.D. High quality aftermarket.
1074-1095 Spring Steel Material; Rockwell B85 Hardness. .50¢
each, plus shipping & handling.
-
.012" (0.3mm) Thickness x 12mm I.D. x 18mm O.D. High quality aftermarket.
1074-1095 Spring Steel Material; Rockwell B85 Hardness. .50¢
each, plus shipping & handling.
-
.005" Thickness x 7/16" i.d x 3/4" O.D. OEM Kohler part # 230293-S.
$4.35 each, plus shipping & handling.
-
NOTE: Being the .010" thickness shim (OEM Kohler part # 230294-S) is
discontinued from Kohler, if desired, order two each of the OEM .005" shims
above to make one .010" shim.
Camshaft
Shims/Spacers/Thrust Washers. Fits Kohler K-series and Magnum engine
models K241/M10, K301/M12, K321/M14, K341/M16, K361, and inside crankcase
for Kohler Command V-Twin models CH18, CH20, CH22, CH23, CH25, CH620, CH621,
CH640, CH641, CH670, CH680, CH730, CH740, CH750 and certain TH18. Aftermarket
shims can also be used as an
indexing washer for
flat seat spark plugs.
-
.005" Thickness -
-
High quality aftermarket. 1/2" I.D. x 3/4" O.D. 1074-1095 Spring Steel Material;
Rockwell B85 Hardness. Replaces Kohler part # 275066-S. .75¢
each, plus shipping & handling.
-
OEM Kohler part # 275066-S. 1/2" I.D. x 1" O.D. $5.65 each, plus shipping
& handling.
-
.010" Thickness -
-
High quality aftermarket. 1/2" I.D. x 3/4" O.D. 1074-1095 Spring Steel Material;
Rockwell B85 Hardness. Replaces Kohler part # 275067-S. .75¢
each, plus shipping & handling.
-
OEM Kohler part # 275067-S. 1/2" I.D. x 1" O.D. $5.65 each, plus shipping
& handling.
|
 Crankcase Breather and Air
Cleaner Neoprene Rubber Seal. Fits Kohler engine models K90/K91, K241, K301,
K321, K341, K361, K582, M10, M12, M14, M16, MV16, M18, MV18, M20, MV20, CH640,
CH730, CH740, CV670, CV680, CV730 and CV740. Dimensions: 1/4" I.D. x 1/2"
O.D. x 9/16" length. FYI - A reinforced rubber fuel hose of the same size
can be substituted for this part. OEM Kohler part #'s 220369-S, 231032-S.
$5.65 each, plus shipping & handling.
 Crankcase Breather and Air Cleaner
Neoprene Rubber Seal. Fits Kohler engine models K141, K160/K161, K181, M8,
MV18 MV20, CH18, CH20, CH22, CH25, CH730 and CV15. Dimensions: 1/4" I.D.
x 1/2" O.D. x 7/8" length. FYI - A reinforced rubber fuel hose of the
same size can be substituted for this part. OEM Kohler part #'s 230046-S.
$4.20 each, plus shipping & handling. |
 Small
Size Crankcase Breather Filter (Oil Trap). Fits Kohler engine models
K91, K141, K160/K161, K181/M8, and opposed (flathead) twin cylinder engine
models KT17, KT17 Series II, KT19, KT19 Series II, M18 and M20. Replace
deteriorated and crumbly filter. NOTE: This "filter" is actually an oil
trap. It traps and suspends oil droplets and prevents oil vapors from exiting
the crankcase at higher RPM, then allows the oil to drain back down into
the crankcase when the engine is at idle or turned off. (It's too coarse
to be a filter of any kind.) Not included in
aftermarket engine gasket set. Dimensions:
Approximately (±) 1-1/4" x 1-1/4" square.
-
OEM Kohler part # 231419-S. $5.65 each, plus shipping & handling.
  Medium Size Crankcase Breather Filter (Oil Trap). Fits Kohler
engine models K241, K301, K330/K331, K321, K341 and various Magnum models
M12, M14 and M16. Replace deteriorated and crumbly filter. NOTE: This
"filter" is actually an oil trap. It traps and suspends oil droplets and
prevents oil vapors from exiting the crankcase at higher RPM, then allows
the oil to drain back down into the crankcase when the engine is at idle
or turned off. (It's too coarse to be a filter of any kind.) Not included
in aftermarket engine gasket set. Fills about
1/3 center area of breather plate. To be used with crankcase breather cover
with open atmospheric vent and external oil control baffle shield part #
235117-S (below Ê). Dimensions: Approximately
(±) 1-1/2" width x 2" tall.
-
OEM Kohler part # 235118-S. $12.30 each, plus shipping & handling.
  Large Size Crankcase Breather Filter (Oil Trap). Fits Kohler
AQS (Quiet Line) engine models K241, K301, K321, K341, K361 and various Magnum
engine models M10, M12, M14 and M16. Replace deteriorated and crumbly filter.
NOTE: This "filter" is actually an oil trap. It traps and suspends oil
droplets and prevents oil vapors from exiting the crankcase at higher RPM,
then allows the oil to drain back down into the crankcase when the engine
is at idle or turned off. (It's too coarse to be a filter of any kind.)
Not included in aftermarket engine gasket set.
Fills entire area of breather plate. To be used with crankcase breather cover
with PCV breather vent hose/tube and external oil control baffle shield and
reed stop part # 270146-S (below Ê).
Dimensions: Approximately (±) 3" width x 2" tall.
[Return to Previous Section, Paragraph
or Website]
-
OEM Kohler part # 47 050 01-S. $7.60 each, plus shipping & handling.
|
 Crankcase Breather Oil Control Baffle Shield and Reed Stop.
Fits Kohler AQS (Quiet Line) engine models K241, K301, K321, K341, K361 and
various Magnum engine models M10, M12, M14 and M16. Positions against reed
valve inside of breather plate (below Ê).
To be used with crankcase breather cover with PCV breather vent hose/tube
and large crankcase breather filter (oil trap) part # 47 050 01-S (above
È). OEM Kohler part # 270146-S.
-
Used and in excellent condition. $2.50 each, plus shipping & handling.
(When available.)
-
New. $5.20 each, plus shipping & handling.
 Crankcase Breather External Oil Control Baffle Shield. Fits
Kohler engine models K241, K301, K330/K331, K321, K341 and various Magnum
models M12, M14 and M16 with an open atmospheric vent in crankcase breather
cover. Prevents loss of oil through crankcase breather cover vent hole.
Positions against reed valve inside of breather plate (below
Ê). To be used with crankcase breather
cover with open atmospheric vent and small crankcase breather filter (oil
trap) part # 235118-S (above È). OEM
Kohler part # 235117-S.
-
Used and in excellent condition. $2.00 each, plus shipping & handling.
(When available.)
-
New. $4.15 each, plus shipping & handling.
|
 Crankcase Breather Reed
Valve. Fits Kohler engine model K91. Replace damaged or rusted reed valve
to prevent loss of oil through breather vent hole, prevent outside dust and
dirt from being drawn into crankcase and maintain crankcase vacuum and proper
ventilation so engine will produce more power and last longer.
-
OEM Kohler part # 220379-S. $5.50 each, plus shipping & handling.
Crankcase Breather Plate and Reed Valve Assembly. Fits Kohler engine models
K141, K160/K161, K181 and M8. Replace damaged or rusted breather plate/reed
valve assembly to prevent loss of oil through breather vent hole, prevent
outside dust and dirt from being drawn into crankcase and maintain crankcase
vacuum and proper ventilation so engine will produce more power and last
longer.
-
New Old Stock or used and in excellent condition. Discontinued OEM Kohler
part # 230066-S. $15.00 each, plus shipping & handling. (When
available.)
-
Modified Kohler twin cylinder engine models KT17, KT17 Series II, KT19, KT19
Series II, MV16, M18, MV18, M20 or MV20 crankcase breather plate and check
valve or reed valve assembly so it will fit Kohler engine models K141, K160/K161,
K181 and M8. NOTE: The
neoprene
rubber seal is not needed with the breather that have the umbrella check
valve. Replaces Kohler part # 230066-S. $20.00 each, plus shipping
& handling.
 Crankcase Breather Reed Valve.
Fits Kohler engine models K241/M10, K301/M12, K330/K331, K321/M14, K341/M16
and K361. Replace damaged or rusted reed valve to prevent loss of oil through
breather vent hole, prevent outside dust and dirt from being drawn into
crankcase, and maintain crankcase vacuum so engine will produce more power.
OEM Kohler part # 235047-S.
-
$10.15 each, plus shipping & handling.
 Old Style Replacement Neoprene
Rubber Umbrella Check Valve and Crankcase Breather Plate w/Umbrella Check
Valve used on Kohler KT-series and Magnum opposed twin cylinder engine models
KT17, KT17 Series II, KT19, KT19 Series II, MV16, M18, MV18, M20 and MV20.
Replace deteriorated rubber umbrella check valve to prevent loss of oil through
breather vent hole, prevent outside dust and dirt from entering crankcase
and maintain crankcase vacuum so engine will produce more power. NOTE:
The old style breather with the umbrella valve works just as well as the
new style breather with the steel reed valve. So if the umbrella valve of
your breather is damaged, it can be replaced. Also, it cost less to just
replace the umbrella valve than the entire breather plate with the steel
reed valve.
-
New Neoprene Rubber Umbrella Check Valve Only. High quality aftermarket.
Dimensions: 1" diameter x 3/16" diameter center plug. Retaining hole in breather
plate will need to be drilled out (enlarged) to 3/16". Discontinued from
Kohler. Replaces Kohler part # 52 462 01. $4.00 each, plus shipping
& handling.
-
Old Style Crankcase Breather Plate with New Neoprene Rubber Umbrella Check
Valve Installed. Used and in excellent condition. Discontinued OEM Kohler
part #'s 52 096 22, 52 096 41 or 52 452 07. $20.00 each, plus shipping
& handling. (When available.)
 New Style Crankcase Breather
Plate with Steel Reed Valve. Fits Kohler KT-series and Magnum opposed twin
cylinder engine models KT17, KT17 Series II, KT19, KT19 Series II, MV16,
M18, MV18, M20 and MV20. Each replaces OEM Kohler part # 52 254 07. NOTE:
The two items listed below Ê are basically
the same with different part numbers and prices.
-
OEM Kohler part # 52 035 02-S. $22.40 each, plus shipping & handling.
-
OEM Kohler part # 52 035 04-S. $23.00 each, plus shipping & handling.
|
  Crankcase Breather Plate. Fits Kohler engine models K241/M10,
K301/M12, K330/K331, K321/M14, K341/M16 and K361. Prevents leaking oil and/or
outside dust and dirt from entering crankcase and maintain crankcase vacuum
so engine will produce more power. Has internal oil splash baffle shield
spot-welded on backside of plate. OEM Kohler part # 235631-S.
-
Used and in excellent condition. $10.00 each, plus shipping &
handling. (When available.)
-
New. $21.80 each, plus shipping & handling.
|
 Crankcase Breather
Cover and Kit. Fits Kohler engine models K241/M10, K301/M12, K330/K331, K321/M14,
K341/M16 and K361. Replace bent, damaged or rusted cover to prevent leaking
oil.
-
Used and in excellent condition. $5.00 each, plus shipping & handling.
(When available.)
-
New. Cover only w/open atmospheric vent. Irrelevant Kohler part number available.
$8.50 each, plus shipping & handling.
-
Complete kit. Comes with cover, baffle (235117-S) and filter (235118-S).
OEM Kohler part # A-235418-S. $21.65 each, plus shipping & handling.
 Crankcase Breather Cover. Fits
Kohler AQS (Quiet Line) engine models K241/M10, K301/M12, K321/M14, K341/M16
and K361. Replace bent, damaged or rusted cover to prevent leaking oil. Accepts
PCV breather vent hose/tube that connects to oblong-shaped metal air cleaner
base. OEM Kohler part # 47 096 01-S.
-
Used and in excellent condition. $6.50 each, plus shipping & handling.
(When available.)
-
New. $13.00 each, plus shipping & handling.
 1/4" NPT x 1/2" Barb 90º
Angle Breather Fitting to convert Quiet Line PCV crankcase breather cover
above È to open atmospheric vent. Use
1/4" NPT hand tap to cut threads in cover to accept this fitting. Made of
brass.
-
$10.00 each, plus shipping & handling.
|
 Metal Hole Plug.
Use to block-off/plug the breather vent hose/tube hole in the base of the
air cleaner on Kohler AQS (Quiet Line) and Magnum engine models K241/M10,
K301/M12, K321/M14, K341/M16 and K361 when converting crankcase breather
to open atmospheric vent. Plug prevents dust and dirt from entering the engine
through the air cleaner, resulting in excessive engine wear, which will lead
to smoking out the exhaust and oil burning. When the plug is installed in
the hole, it will have a loose fit. Therefore, the locking tangs will need
to be bent/flared outward to secure it permanently in place.
-
$2.00 each, plus shipping & handling.
|
 Neoprene
Rubber Crankcase Breather Vent Hose/Tube. 3-11/32" overall length. Used on
various Kohler Magnum engine models M10, M12, M14 and M16. Fastens between
base of air cleaner and crankcase breather cover. Part of positive crankcase
ventilation system. Vents back-pressure from inside crankcase into air intake
so engine can burn the oil vapors. Replace dry-rotted breather hose/tube
to prevent outside air from entering combustion chamber, which will cause
excessive engine wear.
-
New Old Stock. Discontinued OEM Kohler part # 47 326 03-S. $6.00 each,
plus shipping & handling. (When available.)
 Neoprene
Rubber Crankcase Breather Vent Hose/Tube/. 3-17/32" overall length. Used
on Kohler K-series "Quiet Line" engine models K241, K301, K321, K341 and
K361. Fastens between base of
oblong-shaped metal air
cleaner/filter assembly and crankcase breather cover. Part of positive
crankcase ventilation system. Vents back-pressure from inside crankcase into
air intake so engine can burn the oil vapors. Replace dry-rotted breather
hose/tube to prevent outside air from entering combustion chamber, which
will cause excessive engine wear.
-
OEM Kohler part # 47 326 01-S. $14.85 each, plus shipping & handling.
 Neoprene
Rubber Crankcase Breather Vent Hose/Tube. 3-29/32" overall length. Part of
positive crankcase ventilation system. Used on various Kohler Magnum engine
models M10, M12, M14 and M16. Fastens between base of air cleaner and crankcase
breather cover. Vents back-pressure from inside crankcase into air intake
so engine can burn the oil vapors. Replace dry-rotted breather hose/tube
to prevent outside air from entering combustion chamber, which will cause
excessive engine wear.
-
New Old Stock. Discontinued OEM Kohler part # 47 326 04-S. $35.00 each,
plus shipping & handling. (When available.)
 Neoprene Rubber Crankcase Breather Vent Hoses/Tubes. Each
used on various Kohler Magnum engine models KT17, KT17 Series II, KT19, KT19
Series II, M18 and M20, according to specification number. Fastens between
base of air cleaner and crankcase breather cover. Part of positive crankcase
ventilation system. Vents back-pressure from inside crankcase into air intake
so engine can burn the oil vapors. Replace dry-rotted breather hose/tube
to prevent outside air from entering combustion chamber, which will cause
excessive engine wear.
-
3-5/8" Length. OEM Kohler part # 52 326 06-S. $22.50 each, plus shipping
& handling.
-
4-3/8" Length. OEM Kohler part #'s 25 325 06-S, 52 326 05-S. $12.00
each, plus shipping & handling.
  Neoprene Rubber Crankcase Breather Vent Hoses/Tubes. Either
can be used on Kohler AQS (Quiet Line) and Magnum engine models K241/M10,
K301/M12, K321/M14, K341/M16 and K361 with the positive crankcase ventilation
crankcase breather cover to convert engine to open atmospheric vent when
used with the round-shaped metal
air cleaner/filter assembly. Makes a nice distinctive look.
-
1-5/8" overall length. (Originally made for Kohler engine models CH18, CH730
and CH740.) OEM Kohler part # 24 326 86-S. $5.95 each, plus shipping
& handling.
-
2" overall length. (Originally made for Kohler engine models CH18, CH20,
CH23, CH640, CH730, CH740, CV18, CV20, CV22, CV23, CV25, CV620 and CV640.)
OEM Kohler part # 24 326 83-S. $3.45 each, plus shipping & handling.
|
 FYI: The governor
to crankcase vent breather hoses/tubes, OEM Kohler part's # 277392-S and
X-484-1-S, for Kohler engine models K482, K532 and K582 are no longer available
from Kohler. Use a neoprene rubber or vinyl tubing of the appropriate size
as a replacement. |
  Valve Cover Gasket for Crankcase Breather Assembly. Fits Kohler
engine models K141, K160/K161 and K181/M8, or Kohler twin cylinder engine
models MV16, KT17, KT17 Series II, KT19, KT19 Series II, M18, MV18, M20 and
MV20 with center cut out (3 gaskets required). High quality aftermarket.
Replaces Kohler part #'s 230048-S and 52 055 01-S. $1.50 each, plus
shipping & handling.
Valve Cover Gasket for Crankcase Breather Assembly. Fits Kohler engine models
K141, K160/K161 and K181/M8. OEM Kohler part # 230048-S. $5.00 each,
plus shipping & handling.
Valve Cover Gasket for Crankcase Breather Assembly. Fits Kohler twin cylinder
engine models MV16, KT17, KT17 Series II, KT19, KT19 Series II, M18, MV18,
M20 and MV20. OEM Kohler part # 52 055 01-S. $4.85 each, plus shipping
& handling. |
  Valve Cover Gaskets for Crankcase Breather Assembly. Fits Kohler
engine models K241/M10, K301/M12, K330/K331, K321/M14, K341/M16 and K361.
Included in complete engine rebuild gasket sets below.
-
Inner Gasket Only for Crankcase Breather Reed Plate. High quality aftermarket.
Replaces Kohler part # 235048-S. $1.00 each, plus shipping & handling.
-
Outer Gasket Only for Crankcase Breather Cover. High quality aftermarket.
Replaces Kohler part # 275144-S. $2.00 each, plus shipping & handling.
-
Inner Gasket. OEM Kohler part #'s 235048-S. $4.80 per two gaskets,
plus shipping & handling.
-
Outer Gasket. OEM Kohler part #'s 275144-S. $5.40 each, plus shipping
& handling.
|
 Resurface air-cooled small engine
cylinder head on large disc sander or wide, flat belt sander to remove warpage
and restore flatness, and deburr sharp edge around combustion chamber.
$10.00 labor, plus return shipping & handling.
Mill cylinder head approximately .050". Remove prominent/raised gasket mating
surface from head to increase compression ratio for the 10-16hp flathead,
K-series or Magnum single cylinder engines only. $25.00 labor each,
plus return shipping & handling. NOTE: To lessen the chance
of a blown or leaking head gasket, clean out the head bolt hole threads with
a tap, and seal the head gasket with
Copper RTV Silicone Sealant (VersaChem - Mega Copper Silicone,
Permatex® Ultra Copper® Maximum Temperature RTV Silicone Gasket Maker
or Copper SPRAY-A-GASKET Hi Temp Adhesive Sealant) on each side of the head
gasket or cylinder head and engine block to prevent a blown or leaking head
gasket. Because engine heat has very little effect on silicone rubber. It's
made of fine-ground up heat-transferring compressible copper mixed with silicone.
Walmart and most auto parts stores sell copper RTV silicone sealant. It doesn't
matter which brand to use, they work the same.
Professionally weld up burned-out area in small engine cylinder head, resurface
on a wide sanding belt to remove warpage and restore flatness, and redrill
bolt hole, if needed. NOTE - As long as there's no cracks in the head,
it can be successfully welded up, resurfaced, and the bolt hole redrilled.
IMPORTANT - Causes of a burn-out are: Throttle shaft in the carburetor is
severely worn, allowing extra air in the combustion chamber, which will lean
out the air/fuel mixture at high RPMs; the adjustable high speed air/fuel
mixture screw is set too lean; or the engine is ran above 3,200 RPM with
a [Walbro] carburetor having a fixed/non-adjustable high speed main jet.
To prevent the burn-out from happening again, either of these things should
be fixed correctly before the cylinder head is put back into service.
$75.00 for welding and labor, plus return shipping & handling.
A-1 Miller's Machine Shop Service - Drill out rusted-in/broken off
[1/4"] bolt in cylinder head and retap threads for fastening of sheet metal
and/or brackets. No need to purchase another hard-to-find and high dollar
cylinder head that's in good condition. Labor includes resurfacing of air-cooled
small engine cylinder head on a wide belt sander to remove warpage and restore
flatness. NOTE: Always apply
anti-seize compound on threads of bolt before installing.
$10.00 each labor, plus return shipping & handling.
 A-1 Miller's Machine Shop
Service - Install Heli-Coil thread repair insert in stripped-out 14mm
spark plug hole if not larger than 5/8" in diameter. No need to purchase
another hard-to-find and high dollar cylinder head that's in good condition.
304 stainless steel w/200,000 psi tensile strength. Labor includes resurfacing
of air-cooled small engine cylinder head on a wide belt sander to remove
warpage and restore flatness. IMPORTANT: Torque spark plug to 180-240
in. lb. or 15-20 ft. lb. $15.00 each for parts and labor, plus
return shipping & handling.
A-1 Miller's Machine Shop Service - Install an oversize steel thread
repair insert in stripped-out 14mm spark plug hole if larger than 5/8" in
diameter. No need to purchase another hard-to-find and high dollar cylinder
head that's in good condition. Labor includes resurfacing of air-cooled small
engine cylinder head on a wide belt sander to remove warpage and restore
flatness. IMPORTANT: Torque spark plug to 180-240 in. lb. or 15-20 ft.
lb. $40.00 each for parts and labor, plus return shipping &
handling.
A-1 Miller's Machine Shop Service - Professionally weld up excessively
enlarged/stripped-out spark plug hole, and drill and tap new 14mm spark plug
threads. No need to purchase another hard-to-find and high dollar cylinder
head that's in good condition. For accuracy, all machining of spark plug
hole performed with head firmly clamped on table of milling machine. Labor
includes resurfacing of air-cooled small engine cylinder head on a wide belt
sander to remove warpage and restore flatness. IMPORTANT: Torque spark
plug to 180-240 in. lb. or 15-20 ft. lb. $60.00 each for welding
and labor, plus return shipping & handling.
 |
 Cylinder Head for Kohler
engine models K141, K160, K161 and K181/M8. Cleaned and resurfaced on a
wide sanding belt or large diameter disc sander to remove
warpage and restore flatness. Cooling fins, spark plug threads and bolt holes
for fastening of sheet metal all in good condition.
Click or tap here for cylinder head bolt torque
specs.
-
Used and in excellent condition. Discontinued OEM Kohler part # 41 015 02-S
(most commonly used). $125.00 each, plus shipping & handling.
(When available.)
-
A-1 Miller's Professional Repair Service. Repair stripped spark plug threads
in YOUR cylinder head and/or drill out broken bolt and retap threads for
fastening sheet metal. Includes resurface head to remove warpage and restore
flatness. $25.00 - $45.00 parts and labor, depending on extent of
repair.
 2nd Generation Cylinder Head
for Kohler K-series and Magnum engine models K241/M10 and K301/M12. Can also
be used on the early K321 engines with the small (1-1/8") exhaust valve.
Spark plug located in middle of combustion chamber. Due to the location of
the spark plug, this head is not designed for use on a K-series AQS (Quiet
Line) engine. Cleaned and resurfaced on a
wide sanding belt or large diameter disc sander to remove
warpage and restore flatness. Cooling fins, spark plug threads and bolt holes
for fastening of sheet metal all in good condition.
Click or tap here for cylinder head bolt torque
specs.
-
Used and in excellent condition. Head with Short Bolt Hole Bosses. Requires
1-1/2" length head bolts. Discontinued OEM Kohler part # 236675.
$85.00 each, plus shipping & handling. (When available.)
-
Used and in excellent condition. Head with Tall Bolt Hole Bosses. Requires
2" length head bolts. Discontinued OEM Kohler part #'s 236546 and 235475.
$75.00 each, plus shipping & handling. (When available.)
-
A-1 Miller's Professional Repair Service. Repair stripped spark plug threads
in YOUR cylinder head and/or drill out broken bolt and retap threads for
fastening sheet metal. Includes resurface head to remove warpage and restore
flatness. $25.00 - $45.00 parts and labor, depending on extent of
repair.
 3rd Generation Cylinder Head.
Fits Kohler K-series and Magnum engine models K241/M10, K301/M12 and K321/M14.
Spark plug located in middle of combustion chamber. Due to the location of
the spark plug, this head is not designed for use on a K-series AQS (Quiet
Line) engine. Cleaned and resurfaced on a
wide sanding belt or large diameter disc sander to remove
warpage and restore flatness. Cooling fins, spark plug threads and bolt holes
for fastening of sheet metal all in good condition. Requires 1-1/2"
length head bolts. Click or tap here for cylinder
head bolt torque specs.
-
Used and in excellent condition. Discontinued OEM Kohler part # 237829.
$75.00 each, plus shipping & handling. (When available.)
-
A-1 Miller's Professional Repair Service. Repair stripped spark plug threads
in YOUR cylinder head and/or drill out broken bolt and retap threads for
fastening sheet metal. Includes resurface head to remove warpage and restore
flatness. $25.00 - $45.00 parts and labor, depending on extent of
repair.
 4th Generation Cylinder Head.
Fits Kohler K-series and Magnum engine models K241/M10, K301/M12 and K321/M14.
Spark plug located over exhaust valve. Mostly used on the K-series AQS (Quiet
Line) engines. Cleaned and resurfaced on a
wide sanding belt or large diameter disc sander to remove
warpage and restore flatness. Cooling fins, spark plug threads and bolt holes
for fastening of sheet metal all in good condition. Each requires
1-1/2" length head bolts. Click or tap here for
cylinder head bolt torque specs. FYI - Dyno tests have proven that
this is the best cylinder head to use for a Stock or Hot Stock competition
pulling engine because it has the spark plug located over the exhaust valve,
which retains the majority of the heat in one area for better combustion
of the fuel so the engine will produce more power. This is why Kohler made
this type of head because dyno tests have proven that it works better than
their previous-designed heads.
-
Used and in excellent condition. Discontinued OEM Kohler part # 237670.
$100.00 each, plus shipping & handling. (When available.)
-
New. OEM Kohler part # 237830-S. $263.00 each, plus shipping &
handling.
-
A-1 Miller's Professional Repair Service. Repair stripped spark plug threads
in YOUR cylinder head and/or drill out broken bolt and retap threads for
fastening sheet metal. Includes resurface head to remove warpage and restore
flatness. $25.00 - $45.00 parts and labor, depending on extent of
repair.
 16hp Cylinder Head. Fits Kohler
K-series and Magnum engine models K341/M16. Cleaned and resurfaced on a
wide sanding belt or large diameter disc sander to remove
warpage and restore flatness. Cooling fins, spark plug threads and bolt holes
for fastening of sheet metal all in good condition. Requires 1-1/2"
length head bolts. Click or tap here for cylinder
head bolt torque specs.
-
Used and in excellent condition. Discontinued OEM Kohler part #'s 45 015
06 and 45 015 09. $150.00 each, plus shipping & handling. (When
available.)
-
A-1 Miller's Professional Repair Service. Repair stripped spark plug threads
in YOUR cylinder head and/or drill out broken bolt and retap threads for
fastening sheet metal. Includes resurface head to remove warpage and restore
flatness. $25.00 - $45.00 parts and labor, depending on extent of
repair.
|
 Cylinder Head
Bolts and Flat Washers. Fits Kohler engine models K141, K160/K161, K181 and
M8. Replace bolts with eroded, rusted heads to prevent socket from slipping
so bolt will torque down correctly. 5/16" diameter x 1-1/2" thread length
grade 8 bolts and hardened washers. NOTES: Clean the threads in the block
with a 5/16-18 UNC plug hand tap so the bolts will torque correctly. Then
apply motor oil on the threads and torque each bolt to 240 in. lbs. or 20
ft. lbs.
Liquid threadlocker is not necessary.
Click or tap here for cylinder head bolt torque
specs.
-
High quality aftermarket. Set of 7 bolts only. $7.00 per set, plus
shipping & handling.
-
High quality aftermarket. Set of 7 bolts and 7 washers. $10.50 per
set, plus shipping & handling.
-
OEM Kohler part #'s 41 086 02-S (bolt), 220534-S (washer). $49.35
per set, plus shipping & handling.
Cylinder Head Bolts and Flat Washers. Fits Kohler engine models
MV16, KT17, KT17 Series II, KT19, KT19 Series II, M18, MV18, M20 and MV20.
Replace bolts with eroded, rusted heads to prevent socket from slipping so
bolt will torque down correctly. 5/16" diameter x 1-1/2" thread length grade
8 bolts and hardened washers. NOTES: Clean the threads in the block with
a 5/16-18 UNC plug hand tap so the bolts will torque correctly. Then apply
motor oil on the threads and torque each bolt to 240 in. lbs. or 20 ft. lbs.
Liquid threadlocker is not necessary.
Click or tap here for cylinder head bolt torque
specs.
-
High quality aftermarket. Set of 9 bolts only. $9.00 per set, plus
shipping & handling.
-
High quality aftermarket. Set of 9 bolts and 9 washers. $13.50 per
set, plus shipping & handling.
-
OEM Kohler part #'s 41 086 02-S (bolt), 220534-S (washer). $63.45
per set, plus shipping & handling.
Cylinder Head
Bolts and Flat Washers. Fits Kohler engine models K241/M10, K301/M12, K321/M14,
K341/M16 and K361. Replace bolts with eroded, rusted heads to prevent socket
from slipping so bolt will torque down correctly. NOTES: Clean the threads
in the block with a 3/8-16 UNC plug hand tap so the bolts will torque correctly.
Then apply motor oil on the threads and torque each bolt to 360 in. lbs.
or 30 ft. lbs.
Liquid threadlocker is not necessary. And the length
of any bolt (or screw) do not include the bolt head itself. They are measured
from under the head to end of the threads. Bolt lengths below
Ê is determined by type of cylinder head
used. Click or tap here for cylinder head bolt
torque specs.
-
For Kohler engine models K241/M10, K301/M12 and K321/M14. 3/8" diameter x
1-1/2" thread length grade 8 bolts and hardened washers. These
are for OEM heads with recessed bolt holes that's lower than the height of
the cooling fins.
-
High quality aftermarket. Set of 9 bolts only. $9.00 per set, plus
shipping & handling.
-
High quality aftermarket. Set of 9 bolts and 9 washers. $13.50 per
set, plus shipping & handling.
-
OEM Kohler part #'s 25 086 115-S (bolt, 270889-S (washer). $64.75
per set, plus shipping & handling.
-
For Kohler engine models K241/M10, K301/M12 and K321/M14. 3/8" diameter x
2-1/4" thread length grade 8 bolts and hardened washers. These
are for OEM heads with bolt holes that's the same height as the cooling fins,
and with no mounting bracket/plate under the bolt head. Kohler part #'s
271077 (bolt; discontinued from Kohler), 270889-S (washer).
-
High quality aftermarket. Set of 9 bolts only. $9.00 per set, plus
shipping & handling.
-
High quality aftermarket. Set of 9 bolts and 9 washers. $13.50 per
set, plus shipping & handling.
-
For Kohler engine models K241/M10, K301/M12 and K321/M14. 3/8" diameter x
2-1/2" thread length grade 8 bolts and hardened washers. These
are for OEM heads with bolt holes that's the same height as the cooling fins,
and with a gas tank mounting bracket or other type of mounting bracket/plate
fastened under the bolt heads.
-
High quality aftermarket. Set of 9 bolts only. $9.00 per set, plus
shipping & handling.
-
High quality aftermarket. Set of 9 bolts and 9 washers. $13.50 per
set, plus shipping & handling.
-
OEM Kohler part #'s 235175-S (bolt), 270889-S (washer). $98.00 per
set, plus shipping & handling.
-
For Kohler engine models K341/M16. 3/8" diameter x 1-1/2" thread length grade
8 bolts and hardened washers.
-
High quality aftermarket. Set of 10 bolts only. $10.00 per set, plus
shipping & handling.
-
High quality aftermarket. Set of 10 bolts and 10 washers. $15.00 per
set, plus shipping & handling.
-
OEM Kohler part #'s 25 086 115-S (bolt), 270889-S (washer). $69.70
per set, plus shipping & handling.
-
For Kohler engine model K361. 3/8" diameter x 1-1/2" thread length grade
8 bolts and hardened washers. OEM Kohler part #'s 270721-S (bolt; discontinued
from Kohler), 270889-S (washer).
-
High quality aftermarket. Set of 6 bolts only. $6.00 per set, plus
shipping & handling.
-
High quality aftermarket. Set of 6 bolts and 6 washers. $9.00 per
set, plus shipping & handling.
Aftermarket Single Cylinder Head Stud Kits. Fits Kohler engine models K241/M10,
K301/M12, K321/M14, K341/M16 and K361 with an OEM or Billet Head. Each kit
includes 3/8" diameter x 2" or 2-3/4" length high quality heat-treated studs,
grade 8 nuts and hardened flat washers. I can also make the head studs any
length you want. The ones that's listed here are the most common lengths.
When installed correctly and
torqued to specs, head
studs provide even torque pressure for better head gasket sealing. Plus,
with a thinner cylinder wall with a huge, oversized piston, they help maintain
cylinder wall stability and straightness for better ring seal to lessen the
loss of compression. Thoroughly tested for several years of continuous use
under pulling conditions, for Kohler engine models, hardened and heat-treated
coarse thread studs, along with grade 8 nuts and washers, works just fine,
with no problems. The nuts maintain their torque as long as they're tightened
to the correct torque specs. And make sure at least 3/4" of threads are in
the block so the cylinder wall will not distort and threads in block will
not strip out when the nuts are torqued to specs.
Click or tap here for cylinder head bolt torque
specs. (Cast iron is weaker than hardened steel.) Also, the flat washers
goes under the nuts to distribute even pressure across head. IMPORTANT:
As with any threaded stud, apply
medium strength liquid threadlocker (Blue Loctite, Permatex
or equivalent) on threads that goes in the block to prevent stud from loosening.
FYI - When storing an opened container of liquid threadlocker or Super Glue,
store it upright and not laying flat. The [capped] tip will not dry out and
clog when stored upright. Thread stud 3/4" into the block. Use a hardened
flat washer under nut to distribute load across head and apply motor oil
on exposed threads so nut will torque correctly. Torque each nut to 360 in.
lbs. or 30 ft. lbs. in correct sequence. Also, stud length is determined
by type of cylinder head. The OEM head with short bolt holes require 2" length
studs, the head with tall bolt holes require 2-3/4" length studs. Please
indicate length of studs when placing order. An ingenious and innovative
concept by Brian Miller. Please accept no advertised copycat products of
this kind. (But I do appreciate them acknowledging my intelligence.)
-
For Kohler engine models K241/M10, K301/M12 and K321/M14. Available in 2",
2-3/4" or 3-1/4" (OEM) lengths (please specify length). Set of 9 studs, nuts
and washers. $20.00 per set, plus shipping & handling.
-
For Kohler engine models K341/M16. 2" length. Set of 10 studs, nuts and washers.
$22.00 per set, plus shipping & handling.
-
For Kohler engine model K361. 2" length. Set of 6 studs, nuts and washers.
$13.00 per set, plus shipping & handling.
 OEM Kohler Cylinder Head Studs.
Fits Kohler engine models K241/M10, K301/M12, K321/M14 and K341/M16. Dimensions
of each stud: 3/8-16 UNC (coarse thread) threads; 3-1/4" overall length;
short threaded length: 5/8"; long threaded length: 1-7/8". IMPORTANT:
As with any threaded stud, apply
medium strength liquid threadlocker (Blue Loctite, Permatex
or equivalent) on threads that goes in the block and tighten with pliers
to prevent stud from loosening. FYI - When storing an opened container of
liquid threadlocker or Super Glue, store it upright and not laying flat.
The [capped] tip will not dry out and clog when stored upright. Use
a hardened flat washer under nut to distribute load across head and apply
motor oil on exposed threads so nut will torque correctly. Torque each nut
to 360 in. lbs. or 30 ft. lbs. in correct sequence.
-
Used and in excellent condition. OEM Kohler part #'s 237277-S (discontinued)
or 237522-S. $5.00 each, plus shipping & handling. (When
available.)
-
New. OEM Kohler part # 237522-S. $11.50 each, plus shipping &
handling.
 Steel Spacer for Studs Above.
Use with OEM Kohler single cylinder engine cylinder heads with the recessed
bolt hole bosses when using a gas tank mounting bracket or other kind of
flat bracket. Replaces discontinued Kohler part #'s 25 112 14-S and X-400-71-S.
Dimensions: 13/32" I.D. x 5/8" O.D. x 23/32" height.
-
A-1 Miller's high quality aftermarket. $5.00 each, plus shipping &
handling.
-
OEM Kohler part # X-400-91-S. $9.00 each, plus shipping & handling.
|
Cylinder Containment Strap Kit for Kohler 10-16hp K-series and Magnum Engines.
Professionally made. This setup is easy to remove and reinstall when it comes
time to freshen the engine. It looks nice and very strong. Prevents
cylinder/crankcase separation (engine explosion) during cool weather when
cylinder is bored thin for an excessively oversize piston. A must
for methanol burning engines. NOTE: An additional 3/8" threaded hole may
need to be made for mounting of brace on PTO end of block.
-
Fabricated A-1 Miller part. $45.00 per kit, plus shipping & handling.
|
 High Velocity
12 Volt Engine Cooling Fan. Use an electric cooling fan when engine has a
steel flywheel with no cooing fins. Draws 2.6 amps, produces 145 CFM. Measures
3" diameter and 5" length. Best to fasten fan on a sturdy angle steel support
bracket in front of engine or behind grille in a Cub Cadet garden tractor.
Motor is 100% secured and reinforced in plastic fan housing tunnel to withstand
severe engine vibrations. Motor will not loosen or become inoperable when
pulling. No need to install rubber mounting grommets. These will serve no
purpose whatsoever. IMPORTANT: Do not run fan while pulling because the
internal brushes could break due to normal engine vibration. Turn fan on
ONLY between pull-offs or when tuning engine.
-
$35.00 each, plus shipping & handling.
|
 Kohler K181 Flywheel
for the 5-1/2" 15/20 Amp Charging Stator. Replace damaged flywheel, or use
this type of flywheel with the 5-1/2" stator to convert a K181 engine with
a stator containing a failed magneto ignition coil integrated with a weak
output 10 amp charging coils under the flywheel to the battery-powered ignition
system. OEM Kohler part # 41 025 17-S.
-
Used and in excellent condition. $250.00 each, plus shipping &
handling. (When available.)
-
New. $505.08 each, plus shipping & handling.
|
Dynamic Precision Spin-Balancing
Service -
-
Balance (cast or steel) flywheel for Kohler 10-16hp cast iron block engine.
$75.00 each labor, plus return shipping & handling.
-
Balance cast iron (Kohler) crankshaft and matching connecting rod and piston
assembly. $260.00 per rotating assembly, plus return shipping &
handling. [Return To Previous Paragraph,
Section or Website]
 |
| A-1
Miller's Computerized Stuska Water Brake
Engine
Dynamometer
(Dyno) Service with DPM Data Logger Software to Test Horsepower and
Torque!
 For performance testing of 10-16hp
single cylinder Kohler stock or competition pulling engines at speeds up
to 12,000 RPM. The only dyno service for testing Kohler pulling engines in
central Missouri. Fully operational and 100% accurate, customers can rent
dyno time, fine tune and make adjustments or changes to their engines to
gain maximum horsepower and torque, and print-out the results so their tractor(s)
will be truly competitive on the track. With an engine dyno, the puller can
adjust their engine to get maximum horsepower and torque, and gear their
tractor appropriately to have an advantage over the competition. NOTE:
A fresh-built engine may not produce full power until it's broke-in. This
is when the valves wear-in with the seats to completely seal in the compression.
The rings will likely hold the compression, but the valves may leak slightly
until they wear into the seats. This is normal for all engines and may take
several hours or pulls to happen, then the valves will be able to hold full
compression. Lots of pullers tell A-1 Miller's after I've built their engines
that it seems to pull stronger every time they pull it.
Engine Dyno Rental Fee: $50.00 per hour run time from the moment the
engine is started. No setup fee for Cub Cadet engines with a 3- or 6-pin/stud
clutch driver. An adapter may need to be needed or fabricated for other makes
and models of engines. Only engines with the narrow base oil pan can be tested.
Engines with the wide base (tall) oil pan cannot be tested at this time.
[Return to Previous Section, Paragraph
or Website] |
 Flywheel Retaining
Nuts for 5/8" or 3/4" threaded stud on end of Kohler K-series and billet
steel crankshafts. OEM type of nuts discontinued from Kohler. IMPORTANT:
Apply thin coat of motor oil on threads of crankshaft before installing nut,
then torque each nut to 65 ft. lbs.
-
Nylon Insert Self-Locking Nut. 5/8-18 UNF (fine thread) threads. Replaces
Kohler part # 25 100 02-S. $2.50 each, plus shipping & handling.
-
Nylon Insert Self-Locking Nut. 3/4-16 UNF (fine thread) threads. Used on
early K241 crankshafts and most billet steel crankshafts. Replaces Kohler
part #'s X-89-11, X-119-16. $3.00 each, plus shipping & handling.
|
 Flywheel Retaining Bolt and
Washer Kit for 3/8" threaded hole in end of crankshaft. Grade 8, 3/8" diameter,
fine thread (3/8-24 UNF) bolt, split lock washer and extra thick washer.
Most of these parts discontinued from Kohler. IMPORTANT: Apply thin coat
of motor oil in threads of crankshaft or on bolt then torque 40 ft. lb.
-
High quality aftermarket. $5.00 each, plus shipping & handling.
|
 Starter Pulley Retaining
Bolt/Washer Kit for PTO end of crankshaft. Comes with grade 8, 3/8" or 7/16"
bolt, split lock washer and extra thick washer. Certain professional pulling
associations/clubs require this in case starter pulley comes loose on crankshaft
and become an airborne projectile, which can cause serious injury to a bystander
or spectator.
-
Choice of 3/8" or 7/16" bolt sizes. $5.00 per kit, plus shipping &
handling.
|
 Extra Thick Flywheel
/ Aluminum Hub Adapter Retaining Washers. A thick, wide washer is a must
to secure flywheel and prevent clutch/driveshaft aluminum hub adapter breakage.
Each made of steel and measures 1-1/4" O.D. x approximately 1/4" thick.
-
Washers with 13/32" center hole. To be used with a crankshaft that has a
3/8" bolt, and/or aluminum hub adapter that has a 3/8" center hole.
-
A-1 Miller part. $3.00 each, plus shipping & handling.
-
OEM Kohler part # 12 468 03-S. $3.80 each, plus shipping & handling.
-
Washer with 5/8" center hole. To be used with a crankshaft that has a 5/8"
stud, and/or aluminum hub adapter that has a 5/8" center hole. A-1 Miller
part. Discontinued from Kohler. Replaces Kohler part # X-25-104. $5.00
each, plus shipping & handling.
-
Washer with 3/4" center hole. To be used with a crankshaft that has a 3/4"
stud, and/or aluminum hub adapter that has a 3/4" center hole. A-1 Miller
part. Discontinued from Kohler. Replaces Kohler part # X-25-71. $5.00
each, plus shipping & handling.
|
 Step Washer.
Use to center cast aluminum or billet hub adapter with a 5/8" hole to a
crankshaft with the 3/8" bolt on later model Kohler K-series and all Magnum
engines. A must to prevent severe wobble/vibration and prevent hub and/or
driveshaft/clutch breakage. Dimensions: 3/8" I.D. x 5/8" O.D. step x
approximately 1-1/4" overall O.D. x 1/2" overall height. Professionally machined
by Brian Miller.
-
$12.00 each, plus shipping & handling.
|
 Cub Cadet hub
adapters with 5/8" center hole (early K-series), w/pulley, w/dowel pin.
-
Used and in excellent condition. OEM Kohler part # 41 071 03-S. $60.00
each, plus shipping & handling. (When available.)
-
New. OEM Kohler part # 41 071 03-S. $90.73 each, plus shipping &
handling.
-
New. OEM Cub Cadet part # KH-41-071-03. $116.30 each, plus shipping
& handling.
-
New. OEM Cub Cadet part # 759-3287. $204.00 each, plus shipping &
handling.
 Cub Cadet hub adapters with
5/8" center hole (early K-series), w/o pulley, w/dowel pin.
-
Used and in excellent condition. Discontinued OEM Kohler part # 41 071 05-S.
$60.00 each, plus shipping & handling.
-
New. OEM Cub Cadet part # KH-41-071-05. $204.00 each, plus shipping
& handling.
Cub Cadet hub adapters with 3/8" center hole (later K-series, all KT-series
and Magnum), w/o pulley, w/dowel pin.
-
Used and in excellent condition. $40.00 each, plus shipping &
handling. (When available.)
-
New. OEM Kohler part # 52 755 61-S. $115.55 each, plus shipping &
handling.
|
 1/4" diameter
x 3/4" length hardened steel dowel pin for OEM Kohler and billet aluminum
hub adapters. Secures aluminum hub to flywheel to prevent slippage. Replaces
Cub Cadet part # KH-X-56-7 and Kohler part # X-56-7. $1.50 each, plus
shipping & handling. |
 Flywheel grass/safety
steel screen for use in IH-built Cub Cadet garden tractors with Kohler engine
models K161 and K181. 5-9/16" diameter.
-
New Old Stock or Used and in excellent condition. Discontinued OEM Kohler
part # 231819-S. $20.00 each, plus shipping & handling.
|
 Flywheel grass/safety
steel screen for use in IH-built Cub Cadet garden tractors with Kohler engine
models K241 and K301. 7" diameter.
-
Used and in excellent condition. $120.00 each, plus shipping &
handling.
-
New. OEM Cub Cadet part # KH-235190 and OEM Kohler part # 235190-S.
$240.00 each, plus shipping & handling.
|
 Rectangular
Steel Crankshaft/Flywheel Key. Fits Kohler engine models K241, K301 and K321
made in 1972 and earlier with the 8" diameter flywheel and starter/generator.
Also fits Kohler engine models K330/K331. Dimensions: 3/16" wide x 1/4" tall
x 1-3/8" length. Discontinued OEM Kohler part # X-366-1-S.
-
Used and in excellent condition. $5.00 each, plus shipping & handling.
(When available.)
 Square Steel and Aluminum
Crankshaft/Flywheel Keys. Fits Kohler engine models K141, K160, K161, K181,
M8, K241, K301, K321, K341, K361, KT17, KT17 Series II, KT19, KT19 Series
II, MV16, M18, MV18, M20 and MV20 made in 1973 and later. Dimensions: 3/16"
square x 1-3/8" length.
-
Steel Flywheel Key. High quality aftermarket. $1.00 each, plus shipping
& handling.
-
Steel Flywheel Key. OEM Kohler part # X-286-17-S. $1.90 each, plus
shipping & handling.
-
Aluminum Flywheel Key. Made of 6061 medium-grade hardness alloy aluminum.
Helps prevent possibility of cracking/breaking of factory flywheel due to
sudden crankshaft lock-up in the event of connecting rod failure. Replaces
Kohler part # X-286-17-S. $5.00 each, plus shipping & handling.
 Woodruff (Semicircular) Steel
Keys for Crankshaft/Flywheel and Gear Reduction Shaft on certain Kohler engine
models K241, K301, K321, K341, and all Magnum models M10, M12, M14, M16,
and models CH13 and CH15. Dimensions: 3/16" wide x 1" length.
-
High quality aftermarket. $1.00 each, plus shipping & handling.
-
OEM Kohler part # X-46-3-S. $2.25 each, plus shipping & handling.
Woodruff (Semicircular) Steel
Crankshaft/Flywheel Key. Fits most OHV aluminum block Kohler engines. Dimensions:
3/16" wide x 5/8" length.
-
High quality aftermarket. $1.00 each, plus shipping & handling.
-
OEM Kohler part # X-42-15-S. $1.70 each, plus shipping & handling.
|
Magnetic Oil Drain Plugs with Tapered Threads and Square Head. A-1 Miller
oil drain plugs have a super strong rare earth/neodymium magnet. Five times
stronger than competitor's ceramic (ferrite) magnet and resists demagnetization.
Plugs listed below can be used on various other makes and models of
transmissions, transaxles, gearboxes and small engines. Tapered threads requires
no sealing gasket or sealant, and threads will not strip out when tightened.
To avoid cracking oil pan, do not over-tighten! When in doubt, use
plumber's thread sealing tape to insure proper sealing
of threads to prevent a possible oil leak. Universal application. Magnet
attracts and removes
ferrous
metallic wear fragments from the motor oil or transmission/gearbox to reduce
engine or gear/bearing wear. Sometimes some of the ferrous wear fragments
settle to the bottom of the oil pan and do not drain out with the oil when
performing an oil change, even when the oil is hot. The engine will last
much longer due to cleaner oil. Magnetic drain plugs are suitable for engines
with splash oil lubrication (no oil pump/filter).
-
 1/4" NPT (Tapered Threads) Magnetic
Oil Drain Plug. Fits various Briggs & Stratton, Tecumseh and Kohler engines.
A-1 Miller part. Discontinued from Kohler. Replaces Kohler part # X-75-2.
$5.00 each, plus shipping & handling.
-
 3/8" NPT (Tapered Threads) Magnetic
Oil Drain Plug. Fits various Briggs & Stratton, Tecumseh and Kohler engines.
A-1 Miller part. High quality aftermarket. Replaces Kohler part # X-305-4-S.
$5.00 each, plus shipping & handling.
-
3/8" NPT (Tapered Threads) Magnetic Oil Drain Plug. OEM Kohler part # X-305-4-S.
$18.35 each, plus shipping & handling.
-
1/2" NPT (Tapered Threads) Magnetic Oil Drain Plug. Fits side of oil pan
on Kohler engine models K141, K160/K161, K181 and M8 engines, and oil drain
on Cub Cadet garden tractor transaxles and various automotive manual shift
transmissions. A-1 Miller part. Not available from Kohler.
$5.00 each, plus shipping & handling.
-
3/4" NPT (Tapered Threads) Magnetic Oil Drain Plug. Fits various Briggs &
Stratton and Kohler engines. A-1 Miller part. Not available
from Kohler. $5.00 each, plus shipping & handling.
-
 3/4-10 UNC (Straight Threads)
Magnetic Oil Drain Plug. Use to replace OEM Kohler 3/8" NPT oil drain plug
with stripped threads in [aluminum] oil pan. Comes with fiber sealing gasket.
NOTE: Threads in oil pan must be enlarged with a 3/4-10 UNC hand tap.
A-1 Miller part. $5.00 each, plus shipping & handling.
-
 5/8" I.D. Fiber Sealing Gasket
for OEM Kohler 3/8" NPT Oil Drain Plug with Hex Head. Discontinued from Kohler.
Replaces Kohler part # 241063. $1.00 each, plus shipping & handling.
 Super
Strong Rare Earth/Neodymium Magnets for Engines, Transmissions, Transaxles
and Gearboxes. Attracts and removes ferrous metallic wear fragments from
the lubricating oil inside an engine that does not have an oil pump with
an oil filter, or inside a transmission, transaxle or gearbox to lessen wear
and noise to gears and bearings. Sometimes some of the wear fragments settle
to the bottom of the oil pan or engine block and do not drain out with the
oil when performing an oil change, even when the oil is hot. Engine or
gears/bearings will last longer due to cleaner oil. Install magnet in bottom
of oil pan away from the oil dipper and any moving parts, or in bottom of
a transmission, transaxle or gearbox away from rotating gears and any moving
parts. Use
Krazy Glue,
Super Glue,
Gorilla Glue, or any industrial strength adhesive to secure
magnet in place. These rare earth/neodymium magnets are EXTREMELY strong!
Use caution when handling! Can be difficult to remove from a steel or cast
iron surface, are very brittle and can break easily if mishandled. An
ingenious and innovative concept by Brian Miller. Please accept no advertised
copycat products of this kind. (But I do appreciate them acknowledging my
intelligence.)
[Return To Previous Paragraph, Section
or Website]
-
Rectangular Magnet. Dimensions: 20mm x 10mm x 2mm. Use in confined spaces,
such as the deep sump oil pan for Cub Cadet garden tractor engines.
$1.00 each, plus shipping & handling.
-
Round Magnet. Dimensions: 25mm x 2mm. Use in wide, open spaces or flat bottom
oil pans. $1.00 each, plus shipping & handling.
|
 Oil Filter Adapter Kit.
Fits Kohler engine models KT17 Series II, KT19 Series II, MV16, M18, MV18,
M20 and MV20. Adding an oil filter helps the engine last longer between oil
changes by filtering out small metallic fragments and contaminants. (Metal
flake looks good in paint, not in oil.) Kit includes: Cast aluminum oil filter
adapter, two Allen head mounting bolts and mounting gasket. Use the Allen
set screw in model M18 engines w/specification # 24532, after serial # 1835400002
(1988 and newer).
-
OEM Kohler part # 82 755 23-S. $77.75 each, plus shipping & handling.
|
  High quality aftermarket universal oil filter. 95% efficiency
rating. Fits most popular small engines. Has anti-drain back valve to minimize
dry engine starts. Dimensions: 3.25" height x 3" O.D. $10.00 each,
plus shipping & handling.
 General use oil filter. Fits
Kohler engine models CH11, CH12.5, CH13, CH14, CH15, CH15, CH16, CH18, CH20,
CH22, CH25, CH620, CH621, CH640, CH641, CH670, CH680, CH682, CH730, CH732,
CH735, CH740, CH742, CH745, CH750, CH752, CH940, CH960, CH980, CH1000, CV1000,
CV12.5, CV13, CV14, CV15, CV16, CV18, CV20, CV22, CV25, CV620, CV640, CV670,
CV680, CV682, CV730, CV732, CV740, CV742, CV745, CV750, CV752, CV940, CV960,
CV980, ECH630, ECH650, ECH680, ECH740, ECH749, ECH985, ECV630, ECV650, ECV680,
ECV730, ECV749, ECV850, ECV860, EKT750, ELH775, KT600, KT610, KT620, KT715,
KT725, KT730, KT740, KT745, LH685, LH690, LH775, LV680, PCH740, PCV680, PCV740,
SV470, SV471, SV480, SV540, SV541, SV590, SV591, SV600, SV601, SV620, SV710,
SV720, SV725, SV730, SV735, SV840, TH16, TH18 and TH575. Has anti-drain back
valve to minimize dry engine starts. Specifications: 8-11 psi pressure relief;
29 microns. Dimensions: 2-3/4" height x 3" O.D. Replaces Briggs and Stratton
part # 491056 (Vanguard). OEM Kohler part # 12 050 01-S. $12.00 each,
plus shipping & handling.
 Heavy duty use oil filter. Fits
Kohler engine models MV16, KT17 Series II, KT19 Series II, MV16, M18, MV18,
M20, MV20, K482, K532, K582 and K662. Specifications: 8-11 psi pressure relief;
29 microns. Has anti-drain back valve to minimize dry engine starts. Dimensions:
3-7/16" height x 3" O.D. OEM Kohler part # 52 050 02-S1. $13.00 each,
plus shipping & handling.
 Extended use oil filter. Fits
Kohler engine models CH620, CH730, CV22, CV25, CV730, CV740, CV745, CV750,
MV16, KT17 Series II, KT19 Series II, MV16, M18, MV18, M20, MV20, K482, K532,
K582 and K662. Specifications: 8-11 psi pressure relief; 29 microns. Has
anti-drain back valve to minimize dry engine starts. Dimensions: 4-13/16"
height x 3" O.D. OEM Kohler part # 277233-S. $17.00 each, plus shipping
& handling. |
| Repair Service: Repair stripped aluminum oil pan mounting bolt
hole threads. No need to purchase another oil pan! $5.00 each for
parts and labor, plus return shipping & handling. |
  Cast Aluminum, Narrow Base, Flat Bottom Oil Pan. Fits Kohler
K-series and Magnum engine models K241/M10, K301/M12, K321/M14, K341/M16
and K361 with a narrow base block, or if the flanges have been cut off, and
the block is converted for use with a narrow base oil pan. Comes with bottom
drain, but can be drilled and tapped in thick metal boss for side drain if
desired to meet equipment's specification. Clean and in excellent condition,
with good bolt thread holes and no cracks. Heli-Coil thread repair inserts
installed if necessary. This will fit all IH-built Cub Cadet garden tractors,
and John Deere models 110, 112 and early model 210 with the Kohler K241 engines.
Model 112 serial number 100,001 – 250,000, 110 serial number 250,001
and up with the Kohler K241 engine, and 210 up to serial number 95,261. These
will also fit Wheel Horse garden tractors. Holds 1 quart of oil. Weighs 1.3
lb. Discontinued OEM Kohler part # 237588-S.
-
Used and in excellent condition. $40.00 each, plus shipping &
handling. (When available.)
-
Install Heli-Coil Thread Inserts to Repair Stripped Mounting Bolt Holes in
YOUR Aluminum Oil Pan. FYI - Heli-Coil thread inserts installed in an
aluminum oil pan makes it just as strong as the cast iron oil pan.
$40.00 for all 4 bolt holes, plus return shipping & handling.
|
 Cast Iron, Narrow Base, Flat Bottom Oil Pan. Fits Kohler K-series
and Magnum engine models K241/M10, K301/M12, K321/M14, K341/M16 and K361
with a narrow base block, or if the flanges have been cut off, and the block
is converted for use with a narrow base oil pan. Comes with bottom drain,
but can be drilled and tapped in thick metal boss for side drain if desired
to meet equipment's specification. Clean and in excellent condition, with
good bolt thread holes and no cracks. This is also an exact replacement for
John Deere models 110, 112 and early model 210 with the Kohler K241 engines.
Model 112 serial number 100,001 – 250,000, 110 serial number 250,001
and up with the Kohler K241 engine, and 210 up to serial number 95,261. These
will also fit Wheel Horse garden tractors. Clean and in excellent condition,
including good bolt threads. Holds 1 quart of oil. Weighs 4.1 lb. Discontinued
OEM Kohler part # 235352.
-
Used and in excellent condition. $60.00 each, plus shipping &
handling. (When available.)
|
 Cast Aluminum, Narrow Base, Deep Sump Oil Pans. Fits Kohler
K-series and Magnum engine models K241/M10, K301/M12, K321/M14, K341/M16
and K361 with a narrow base block, or if the flanges have been cut off, and
the block is converted for use with a narrow base oil pan. Comes with bottom
drain only. Clean and in excellent condition, with good bolt thread holes
and no cracks. Heli-Coil thread repair inserts installed if necessary. Suitable
for general lawn and garden use or 4,000 RPM stock competition pulling engines.
NOTE: For better lubrication, these oil pans require a full length oil
dipper on the connecting rod. Holds 1-1/2 quarts of oil. Weighs 1.85
lb. Discontinued OEM Kohler part # 47 199 09-S.
-
Used and in excellent condition. $60.00 each, plus shipping &
handling. (When available.)
-
Install Heli-Coil Thread Inserts to Repair Stripped Mounting Bolt Holes in
YOUR Aluminum Oil Pan. FYI - Heli-Coil thread inserts installed in an
aluminum oil pan makes it just as strong as the cast iron oil pan.
$40.00 for all 4 bolt holes, plus return shipping & handling.
|
 Cast Iron, Narrow Base, Deep Sump Oil Pan. Fits Kohler K-series
and Magnum engine models K241/M10, K301/M12, K321/M14, K341/M16 and K361
with a narrow base block, or if the flanges have been cut off, and the block
is converted for use with a narrow base oil pan. Comes with bottom drain
only. Clean and in excellent condition, with good bolt thread holes and no
cracks. Suitable for general yard and garden engines for durability and for
stroker competition pulling engines. NOTE: For better lubrication, these
oil pans require a full length oil dipper on the connecting rod. Holds
1-1/2 quarts of oil. Weighs 5.4 lb. Discontinued OEM Kohler part # 236328.
-
Used and in excellent condition. $100.00 each or price depends on
availability, plus shipping & handling. (When available; hard to find
nowadays because not many were made.)
|
 Cast Iron,Wide Base, Oil Pan. Fits Kohler K-series and Magnum
engine models K241/M10, K301/M12, K321/M14, K341/M16 and K361 with a wide
base/flanged block. Comes with side drain, but can be drilled and tapped
in bottom for bottom drain if desired to meet equipment's specification.
Clean and in excellent condition, with good bolt thread holes and no cracks.
These come on various makes of tractors such as: Ariens, Wheel Horse, some
Ford, some Jacobsen, Gravely, New Holland, Sears Suburban, Engineering Products
Co. (Economy models) and Allis Chalmers. NOTE: For better lubrication,
these oil pans require a full length oil dipper on the connecting rod.
Holds 2 quarts of oil.
-
Used and in excellent condition. With side drain; most common. OEM Kohler
part # 235115-S. $40.00 each, plus shipping & handling. (When
available.)
-
Used and in excellent condition. With bottom drain. OEM Kohler part # 235147-S.
$40.00 each, plus shipping & handling. (When available.)
-
New. With side drain; most common. OEM Kohler part # 235115-S. $243.00
each, plus shipping & handling.
-
New. With bottom drain. OEM Kohler part # 235147-S. $263.00 each,
plus shipping & handling.
|
Engine Block -
-
Clean and degrease block. $7.00 labor, plus return shipping with Fastenal
or FedEx Ground.
-
Deglaze cylinder wall (create cross-hatch) and clean block. $20.00
labor per cylinder, plus return shipping with Fastenal or FedEx Ground.
-
Hone cylinder bore to next oversize to fit OEM-type piston (OEM engine block).
$75.00 labor per cylinder, plus return shipping with Fastenal or FedEx
Ground.
-
Bore and hone cylinder in new Kohler-replicated aftermarket block to fit
aftermarket piston. $120.00 labor, plus return shipping with Fastenal
or FedEx Ground.
-
Clearance bottom cylinder wall for stroker crankshaft. $75.00 labor,
plus return shipping with Fastenal or FedEx Ground.
-
Bore cam pin holes to 11/16" (.6875") for installation of needle bearings
(OEM or Kohler-replicated aftermarket block). $50.00 labor, plus return
shipping with Fastenal or FedEx Ground.
-
Remove welch plug and cut threads for auxiliary crankcase breather (OEM and
Kohler-replicated aftermarket block. $20.00 labor, plus return shipping
with Fastenal or FedEx Ground.
-
Drill 7/8" center hole and two outer 1/4" bolt holes in 10-16hp Kohler blocks
for installation of mechanical fuel pump. $50.00 labor, plus return
shipping with Fastenal or FedEx Ground.
Convert 10-16hp Kohler wide base block to narrow base, for use in a garden
tractor requiring a narrow base engine block. (Cub Cadet, Ford, John Deere,
Wheel Horse, etc.) See pictures below
Ê An innovative concept
by Brian Miller, because nobody else advertise this type of service for a
Kohler engine block.
-
Cut off flanges even with sides of block. $40.00 labor, plus return
shipping with Fastenal or FedEx Ground.
-
Cut off flanges even with sides of block and cut new threads in oil pan mounting
holes. $60.00 labor, plus return shipping with Fastenal or FedEx Ground.
-
Cut off flanges even with sides of block, weld-in steel stock to fill-in
oil fill/level check openings (notches), and cut new threads in oil pan mounting
holes. $100.00 labor, plus return shipping with Fastenal or FedEx
Ground.
 |
| Valve Train Related - (Prices below are with your engine
on my work table.)
  Perform Professional Valve Job Only on opposed (flathead)
twin cylinder Kohler KT-series and Magnum engine models KT17, KT17 Series
II, KT19, KT19 Series II, MV16, M18, MV18, M20 and MV20. This service
is for an engine that does not blow blue smoke out the exhaust and burn oil.
Performing a professional valve job restores full compression, which allows
the engine to start quicker, idle smooth without stalling, and it will have
maximum power at top governed speed. Labor includes: regrind four valve faces
and seats, lap in valves with valve lapping compound, reset valve clearances
to factory specifications (on short block only), resurface both cylinder
heads on a wide sanding belt to remove warpage and restore flatness, reinstall
intake manifold and governor linkage. And being some valve guides wear
beyond specifications, there will be an extra charge for installing and reaming
new guides, if needed. The sheet metal, muffler, intake manifold and
governor linkage will need to be removed before bringing or shipping engine/short
block to A-1 Miller's shop. To save on shipping cost, only the cylinders
(removed from crankcase) and valves can be shipped in a USPS Large Flat Rate
Box. Use two boxes - place one box inside the another to double the strength,
and use rigid packing material to prevent the cooling fins from breaking
off by making contact with each cylinder.
But the
short block must be shipped in a sturdy wooden crate. Or
if you're the kind of person who
don't trust delivery/shipping companies (mis)handling your high-dollar and
fragile merchandise, you can make the long drive to
A-1 Miller's shop to personally
drop off and/or pick up your carburetor, clutch assembly, cylinders, engine,
transaxle, tractor, etc. "The road to a friend's house (or shop) is never
long."
-
Perform Valve Job on 2 Cylinders Only. (Customer resets valve clearances.)
$70.00 labor, plus return shipping & handling.
-
Perform Valve Job on Short Block (sheet metal, intake manifold and governor
linkage removed). $200.00 labor, plus return shipping with Fastenal
or FedEx Ground.
-
And being some valve guides wear beyond specifications, there will be an
extra parts and labor charge for installing and reaming new guides, if needed.
Grind used valve to OEM angle: $5.00 each, plus return shipping &
handling.
Grind your [45º] intake valve at 30º angle and undercut head for
more airflow. $17.00 labor each, plus return shipping & handling.
Grind seat in your single cylinder block or OHV head to OEM angle or 30º
angle: $5.00 labor each, plus return shipping with Fastenal or FedEx
Ground.
Perform valve job to OEM specs (grind two valve faces and seats), install
valves in single cylinder OEM [Kohler] block and set clearances:
$25.00 labor, plus return shipping with Fastenal or FedEx Ground.
Perform performance valve job on two stock valves and seats in single cylinder
OEM [Kohler] block for improved airflow: $40.00 labor, plus return
shipping with Fastenal or FedEx Ground. Price includes grinding the exhaust
valve and seat at 45º/46º angles, intake valve and seat at
30º/31º angles respectively and undercutting both valve heads.
 Install oversize valves in
single cylinder OEM [Kohler] block: $150.00 - $200.00 (depending
size of valves) labor, plus return shipping with Fastenal or FedEx Ground.
Price does not include any parts.
Install stock size valves in single cylinder Kohler-replicated aftermarket
block with small uncut valve pockets: $150.00 labor, plus return shipping
with Fastenal or FedEx Ground. Price does not include any parts.
Install oversize valves in single cylinder Kohler-replicated aftermarket
block with small uncut valve pockets: $200.00 labor, plus return shipping
with Fastenal or FedEx Ground. Price does not include any parts.
Enlarge and Polish Intake and Exhaust Port Runners -
-
Single cylinder OEM Kohler or Kohler-replicated aftermarket block with large
ports: $75.00 labor, plus return shipping with Fastenal or FedEx Ground.
-
Single cylinder Kohler-replicated aftermarket block with small ports:
$200.00 labor, plus return shipping with Fastenal or FedEx Ground.
Install 1-3/8" exhaust valve in 10, 12 and older 14hp OEM Kohler block:
$50.00 labor, plus return shipping with Fastenal or FedEx Ground.
Install oversize valves, and enlarge/polish intake and exhaust runners in
single cylinder (OEM [Kohler] block): $175.00 labor, plus return shipping
with Fastenal or FedEx Ground.
Install oversize valves, and enlarge/polish intake and exhaust runners in
single cylinder (Kohler-replicated aftermarket block): $300.00 labor,
plus return shipping with Fastenal or FedEx Ground.
Install thin-wall bronze sleeves/liners in worn OEM valve guides in single
cylinder Kohler and other makes of engines. $12.00 each, plus return
shipping with Fastenal or FedEx Ground. Bronze valve guide
sleeves/liners are an alternative to replacing the entire guide in Kohler
engines. Bronze also last longer than Kohler's cast iron guides because bronze
retains more oil for better lubrication of the valve stem.
Install OEM-type [centered] cast iron valve guide or offset valve guide in
single cylinder OEM Kohler block and ream for clearance of valve stem:
$15.00 each labor only, plus return shipping with Fastenal or FedEx
Ground. Price does not include guide.
Install bronze offset valve guide in single cylinder OEM Kohler block and
ream for clearance of valve stem: $15.00 each labor only, plus return
shipping with Fastenal or FedEx Ground. Price does not include guide.
Oversize valve MUST be used with an offset guide. |
Kohler Engine Model K361 Cylinder Head Repairs -
Click or tap here for cylinder head bolt torque
specs.
-
 Repair loose valve seat with
a new bronze valve seat. FYI - A replacement steel valve seat will
loosen after a short time in an aluminum cylinder head, even if it is
professionally installed. But when professionally installed, a replacement
bronze seat will not loosen because it grips or adheres to aluminum much
better than steel. Plus, bronze is harder than cast iron. $75.00
each for parts and labor, plus return shipping & handing.
-
Repair worn inside of valve guide with a bronze sleeve insert. $12.00
each for parts and labor, plus return shipping & handing.
-
Replace loose guide valve with an oversize O.D. guide. $40.00 each
for parts and labor, plus return shipping & handing.
-
Resurface head gasket mating surface to remove warpage and restore flatness.
$20.00 labor, plus return shipping & handing.
-
Perform valve job to OEM specs (regrind both valve faces and seats), install
valves, springs, retainers and keepers/locks/collets.
$35.00 labor, plus return shipping & handling.
 Individual Gaskets and Complete
Gasket Kit to Reinstall K361 Cylinder Head on Engine -
-
 Head Gasket. High quality
aftermarket. Discontinued from Kohler. Replaces Kohler part # 45 052 02-S.
$24.00 each, plus shipping & handling.
-
Rocker Arm Housing Gasket. Discontinued from Kohler. NOS OEM Kohler part
# 45 041 14-S. $14.40 each, plus shipping & handling.
-
Rocker Arm Cover Gasket. OEM Kohler part # 45 041 09-S. $6.45 each,
plus shipping & handling.
-
Two Pushrod Tube Rubber O-Rings s. High quality aftermarket. Replaces Kohler
part # 45 153 01-S. $1.00/two, plus shipping & handling.
-
Intake Tube Mounting Gasket. High quality aftermarket. Replaces Kohler part
# 271030-S. $1.00 each, plus shipping & handling.
-
All parts above total: $46.85, plus shipping & handling.
 Complete engine rebuild gasket
set w/oil seals for Kohler K-series model K361 cast iron block single cylinder
OHV engine. High quality aftermarket. Discontinued from Kohler. Replaces
Kohler part # 45 755 06-S.
-
$50.00 each, plus shipping & handling.
High Quality Aftermarket K361
Valve. Can be used as intake or exhaust valve. Heat-treated, hardened steel.
Dimensions: head diameter: 1.437"; overall length: 4.165"±; face angle:
45º. Has 8mm chrome-plated stem. Requires 8mm
reamer to enlarge guide. OEM Kohler valve
keepers/locks/collets and retainers or rotators can
be used with this valve. OEM valve discontinued from Kohler. Replaces Kohler
part #'s 45 016 02-S (intake) and 45 017 01-S (exhaust).
-
Machined by A-1 Miller's. $50.00 each, plus shipping & handling.
NOTE: Before lapping in valves, it's best to have the
valve seats recut
or reground so the angle will be in correct alignment with the centerline
of the valve guides and so the valve face will make a full 360º contact
with the seat, or the valves will leak and the engine will lose compression,
be hard to start, be low on power and possibly make a popping sound through
the carburetor or out the exhaust. And be sure to set the clearances correctly,
too.
Valve Guides for Kohler engine
model K361 cylinder head.
-
Intake Valve Guide. OEM Kohler part # 45 316 02-S. $14.20 each, plus
shipping & handling.
-
Exhaust Valve Guide and Seal Kit. OEM Kohler part # 45 755 11-S.
$62.23 per kit, plus shipping & handling.
|
| Crankshaft Repairs - This includes Briggs & Stratton, Kohler,
Tecumseh, etc.
Regrind journal (crank pin) to next undersize. NOTE: Kohler crankshafts
can be reground to .030" undersize and still be safe to use with matching
undersized replaceable bearing
inserts installed in the connecting rod. And all crankshafts, rather
if they're automotive or small engine, are checked for straightness before
grinding. If they're bent or twisted, sometimes they can be straightened.
I also do offset crankshaft grinding to increase the length of the stroke
at no extra charge. NOTE:
Once installed and in operation, there is no warranty or guarantee of any
kind on crankshaft regrinds.
-
Single cylinder engine crankshafts: $75.00 per journal, plus return
shipping & handling.
-
Two cylinder engine crankshafts: $100.00 per journal, plus return
shipping & handling.
"Round Up" Rod Journal(s) and Resize Connecting Rods. The service is for
most makes and models of engines when an undersize connecting rod or
bearing inserts isn't available,
if the crankshaft is worn beyond .010" and needs to be reground again, the
journal can be reground to wherever it "cleans up" or is true again, then
the connecting rod can be resized so it'll fit the smaller undersize journal
with the factory recommended .0025" oil clearance. To resize the rod so it'll
fit to a few thousands of an inch smaller diameter crank journal, first,
metal is removed from the mating end of the rod cap, then the cap is fasten
to the rod. The big hole in the rod is now oblong or "egg shaped." Then the
big hole in the rod is honed until it's .002" larger than the diameter of
the crank journal. Honing reshapes the hole into a perfect circle again,
only smaller in diameter. This works very well and it lasts as long as an
ordinary STD size rod and crank journal. This can only be performed on a
rod with a good bearing surface. It cannot be done on a burnt or heavily
scored connecting rod because too much metal would need to be removed. If
you're interested, I will need your crankshaft and connecting rod(s).
NOTE - The maximum a connecting rod can be resized
to is .005" undersize. If it's resized more than .005", being the big hole
in the rod will be made excessively oblong or egg-shaped, which will allow
it to make less bearing surface contact around the crank journal after being
resized, due to the centrifugal force at 3,600 RPM, the big end of the rod
could become elongated (metal stretch) and might eventually knock and possibly
break. NOTE: Once installed
and in operation, there is no warranty or guarantee of any kind on crankshaft
regrinds. An innovative concept by Brian Miller,
because nobody else advertise this service .
-
Single cylinder engine crankshafts: $100.00 per journal, plus return
shipping & handling.
-
Two cylinder engine crankshafts: $200.00 per journal, plus return
shipping & handling.
Repair broken off 5/8" stud on flywheel end of crankshaft. Center drill
and cut threads for a 3/8" diameter grade 8 bolt in the end of crankshaft.
-
$25.00 labor, plus return shipping & handling.
Drill hole and cut 7/16-20 UNF (fine thread) threads in the PTO end of the
crankshaft for bolt and flat washer.
-
$25.00 labor, plus return shipping & handling.
|
  Briggs and Stratton 16, 18 and 20hp opposed (flathead) twin
cylinder aluminum block engine (horizontal or vertical shaft) professional
rebuild to OEM factory specifications @ 3,600 governed RPM for general lawn
and garden use or mild competition pulling. All sheet metal will need
to be removed before bringing or shipping engine to A-1 Miller's.
Engine must be shipped in a sturdy
wooden crate. IMPORTANT: Click or tap here
for proper break-in (wear-in) oils and procedure for rebuilt
engines. NOTE: If your engine doesn't smoke out the exhaust and
burn oil, then chances are, all it needs is a professional valve job performed.
We can do this instead of rebuilding your engine. The price is $300.00 for
parts and labor to perform the valve job, plus return shipping.
-
Rebuild YOUR engine: $700±, includes high quality parts
and labor, plus return shipping with Fastenal or FedEx Ground. Or you can
visit A-1 Miller's shop to drop off and pick up your engine to save on crating
and shipping charges. Price depends on model of engine and extent of wear.
A 50% deposit may be required on certain engine
rebuilds. Deposit is non-refundable if labor and machine work is invested
in the engine, and parts are purchased for the engine. Remaining balance
of total amount is due upon completion of engine rebuild.
-
Parts and labor includes: Completely disassemble engine, thoroughly clean
the block & all associated parts; install new STD size piston/rings assembly
or bore cylinder and install new oversize piston/rings assembly (price will
be higher for the boring and with a new oversize piston and rings); regrind
valves and seats, regrind crank journal and resize connecting rod with the
factory recommended .0025" oil clearance, install new matching undersize
rod, resurface cylinder head (on large disc sander or wide, flat belt sander)
to remove warpage and restore flatness, rebuild carburetor, install tune-up
kit, install new gaskets and oil seals. If engine has a broken connecting
rod or rods, and internal damage has resulted, the price will be slightly
higher for additional parts and labor (if rebuildable).
 Briggs and Stratton Vanguard
V-twin aluminum block engine (horizontal or vertical shaft) professional
rebuild to OEM factory specifications @ 3,600 governed RPM for general lawn
and garden use or mild competition pulling. All sheet metal will need
to be removed before bringing or shipping engine to A-1 Miller's.
Engine must be shipped in a sturdy
wooden crate. IMPORTANT: Click or tap here
for proper break-in (wear-in) oils and procedure for rebuilt
engines.
-
Rebuild YOUR engine: $700±, includes high quality parts
and labor, plus return shipping with Fastenal or FedEx Ground. Or you can
visit A-1 Miller's shop to drop off and pick up your engine to save on crating
and shipping charges. Price depends on model of engine and extent of wear.
A 50% deposit may be required on certain engine
rebuilds. Deposit is non-refundable if labor and machine work is invested
in the engine, and parts are purchased for the engine. Remaining balance
of total amount is due upon completion of engine rebuild.
-
Parts and labor includes: Completely disassemble engine, thoroughly clean
the block & all associated parts; install new STD size piston/rings assembly
or bore cylinder and install new oversize piston/rings assembly (price will
be higher for the boring and with a new oversize piston and rings), regrind
valves and seats, regrind crank journal and resize connecting rod with the
factory recommended .0025" oil clearance, install new matching undersize
rod or fit connecting rod w/bearing
inserts (if available for a particular engine), resurface cylinder heads
(on large disc sander or wide, flat belt sander) to remove warpage and restore
flatness, rebuild carburetor, install tune-up kit, install new gaskets and
oil seals. If engine has a broken connecting rod or rods, and internal damage
has resulted, the price will be slightly higher for additional parts and
labor (if rebuildable).
|
  Tecumseh cast iron block engine models VH80, VH100, HH80,
HH100, HH120, OH140, OH150, OH160 and OH180 rebuild to OEM factory specifications
@ 3,600 governed RPM (for general lawn and garden use only). (Price depends
on size of engine and extent of wear.) All sheet metal will need to be
removed before bringing or shipping engine to A-1 Miller's.
Engine must be shipped in a sturdy
wooden crate. IMPORTANT: Click or tap here
for proper break-in (wear-in) oils and procedure for rebuilt
engines.
-
Rebuild YOUR engine: $700 - $1,000±, includes high quality
parts and labor, plus return shipping with Fastenal or FedEx Ground. Or you
can visit A-1 Miller's shop to drop off and pick up your engine to save on
crating and shipping charges. Price depends on model of engine and extent
of wear. A 50% deposit may be required on certain
engine rebuilds. Deposit is non-refundable if labor and machine work is invested
in the engine, and parts are purchased for the engine. Remaining balance
of total amount is due upon completion of engine rebuild.
-
Parts and labor includes: Completely disassemble engine, thoroughly clean
the block & all associated parts; install new STD size piston/rings assembly
or bore cylinder and install new oversize piston/rings assembly (price will
be higher for the boring and with a new oversize piston and rings); regrind
valves and seats; regrind crank journal and resize connecting rod with the
factory recommended .0025" oil clearance, install new matching undersize
rod, resurface cylinder head (on large disc sander or wide, flat belt sander)
to remove warpage and restore flatness, rebuild carburetor, install tune-up
kit, install new gaskets and oil seals. If engine has a broken connecting
rod or rods, and internal damage has resulted, the price will be slightly
higher for additional parts and labor (if rebuildable).
Extra charge for A-1 Miller's custom flywheel-trigger
electronic ignition system.
|
 Kohler engine models K90/K91
cast iron block flathead engine professional rebuild to OEM factory
specifications @ 4,000± governed RPM (for general lawn and garden
use). All sheet metal will need to be removed before bringing or shipping
engine to A-1 Miller's. Engine
must be shipped in a sturdy wooden crate. IMPORTANT:
Click or tap here for proper break-in (wear-in)
oils and procedure for rebuilt engines.
-
Rebuild YOUR engine: $450±, includes high quality parts
and labor, plus return shipping with Fastenal or FedEx Ground. Or you can
visit A-1 Miller's shop to drop off and pick up your engine to save on crating
and shipping charges. Price depends on extent of wear and availability of
rebuild parts. A 50% deposit may be required
on certain engine rebuilds. Deposit is non-refundable if labor and machine
work is invested in the engine, and parts are purchased for the engine. Remaining
balance of total amount is due upon completion of engine
rebuild.
-
Parts and labor includes: Completely disassemble engine, thoroughly clean
the block & all associated parts; install new STD size piston/rings assembly
or bore cylinder and install new oversize piston/rings assembly (price will
be higher for the boring and with a new oversize piston and rings); regrind
valves and seats; regrind crank journal and resize connecting rod with the
factory recommended .0025" oil clearance; resurface cylinder head (on large
disc sander or wide, flat belt sander) to remove warpage and restore flatness;
rebuild carburetor; install tune-up kit; install new gaskets and oil seals.
If engine has a broken connecting rod, and internal damage has resulted,
the price will be slightly higher for additional parts and labor (if
rebuildable). Extra charge for A-1 Miller's
custom flywheel-trigger electronic ignition system. Price depends on type
of electronic ignition system installed.
  Kohler engine models K141, K160/K161, K181 and M8 cast iron
block flathead engine professional rebuild to OEM factory specifications
@ 3,600 governed RPM for general lawn and garden use or mild competition
pulling. All sheet metal will need to be removed before bringing or
shipping engine to A-1 Miller's.
Engine must be shipped in a sturdy
wooden crate. IMPORTANT: Click or tap here
for proper break-in (wear-in) oils and procedure for rebuilt
engines.
-
Rebuild YOUR engine: K141, K160/K161, K181 or M8 w/2-7/8" or w/2-15/16"
cylinder bore: $600±, includes high quality parts and labor,
plus return shipping with Fastenal or FedEx Ground. Or you can visit A-1
Miller's shop to drop off and pick up your engine to save on crating and
shipping charges. Price depends on model of engine and extent of wear.
A 50% deposit may be required on certain engine
rebuilds. Deposit is non-refundable if labor and machine work is invested
in the engine, and parts are purchased for the engine. Remaining balance
of total amount is due upon completion of engine rebuild.
-
Parts and labor includes: Completely disassemble engine, thoroughly clean
the block & all associated parts; bore cylinder to 2-15/16", install
new STD size (2-15/16") piston/rings assembly (price will be higher for the
boring and with a new oversize piston and rings); regrind valves and seats;
if needed, install valve rotators so any carbon deposits will be wiped away
from valve faces and seats to prevent valve burning; regrind crank journal
and resize connecting rod with the factory recommended .0025" oil clearance;
resurface cylinder head (on large disc sander or wide, flat belt sander)
to remove warpage and restore flatness; rebuild carburetor; install tune-up
kit; install a snug-fitting neoprene rubber oil seal in governor shaft bushing
to prevent seepage of oil; new gaskets and oil seals. If engine has a broken
connecting rod or rods, and internal damage has resulted, the price will
be slightly higher for additional parts and labor (if rebuildable).
Extra charge for A-1 Miller's custom flywheel-trigger
electronic ignition system.
  Kohler K-series and Magnum engine models K241, K301, K321,
K341, M10, M12, M14 and M16 professional rebuild to OEM factory specifications
up to 3,600 governed RPM for general lawn and garden use or mild competition
pulling. All sheet metal will need to be removed before bringing or
shipping engine to A-1 Miller's.
Engine must be shipped in a sturdy
wooden crate. IMPORTANT: Click or tap here
for proper break-in (wear-in) oils and procedure for rebuilt
engines.
-
Rebuild YOUR engine: $700 - $1,000±, includes high quality
parts and labor, plus return shipping with Fastenal or FedEx Ground. Or you
can visit A-1 Miller's shop to drop off and pick up your engine to save on
crating and shipping charges. Price depends on model of engine and extent
of wear. A 50% deposit may be required on certain
engine rebuilds. Deposit is non-refundable if labor and machine work is invested
in the engine, and parts are purchased for the engine. Remaining balance
of total amount is due upon completion of engine rebuild.
-
Parts and labor includes: Completely disassemble engine, thoroughly clean
the block & all associated parts; install new STD size piston/rings assembly
or bore cylinder and install new oversize piston/rings assembly (price will
be higher for the boring and with a new oversize piston and rings); regrind
valves and seats; if needed, install valve rotators so any carbon deposits
will be wiped away from valve faces and seats to prevent valve burning; regrind
crank journal and resize connecting rod with the factory recommended .0025"
oil clearance or install new matching undersize rod or fit connecting rod
w/bearing inserts; install
main ball bearings if the old ones are worn; resurface cylinder head to remove
warpage and restore flatness; rebuild carburetor; install tune-up kit; install
a snug-fitting neoprene rubber oil seal in governor shaft bushing to prevent
seepage of oil; new gaskets and oil seals. If engine has a broken connecting
rod or rods, and internal damage has resulted, the price will be slightly
higher for additional parts and labor (if rebuildable).
Extra charge for A-1 Miller's custom flywheel-trigger
electronic ignition system. Price depends on type of electronic ignition
system installed.
Kohler K-series or Magnum engine models K241/M10, K301/M12,
K321/M14 and K341/M16 Stock-Appearing professional build to the max up to
4,000± RPM for heavy lawn and garden use or mild competition pulling.
All sheet metal will need to be removed before bringing or shipping engine
to A-1 Miller's. Engine must be
shipped in a sturdy wooden crate. IMPORTANT:
Click or tap here for proper break-in (wear-in)
oils and procedure for rebuilt engines.
-
Rebuild YOUR engine: $700 - $1,000±, includes high quality
parts and labor, plus return shipping with Fastenal or FedEx Ground. Or you
can visit A-1 Miller's shop to drop off and pick up your engine to save on
crating and shipping charges. Price depends on model of engine and extent
of wear. A 50% deposit may be required on certain
engine rebuilds. Deposit is non-refundable if labor and machine work is invested
in the engine, and parts are purchased for the engine. Remaining balance
of total amount is due upon completion of engine rebuild.
-
Parts and labor includes: Completely disassemble engine, thoroughly clean
the block & all associated parts; install new STD size piston/rings assembly
or bore cylinder and install new oversize piston/rings assembly (price will
be higher for the boring and with a new oversize piston and rings); regrind
valves and seats; install medium performance valve springs; regrind crank
journal and install bearing
inserts in connecting rod; mill cylinder head; rebuild or bore-out and
rework carburetor; install tune-up kit, install a snug-fitting neoprene rubber
oil seal in governor shaft bushing to prevent seepage of oil; new gaskets
and oil seals. If engine has a broken connecting rod or rods, and internal
damage has resulted, the price will be slightly higher for additional parts
and labor (if rebuildable). Extra charge for
A-1 Miller's custom flywheel-trigger electronic ignition system. Price depends
on type of electronic ignition system installed. (K-series engines
only.)
 Kohler K-series engine model
K361 OHV professional rebuild to OEM factory specifications up to 3,600 governed
RPM for general lawn and garden use or mild competition pulling. All
sheet metal will need to be removed before bringing or shipping engine to
A-1 Miller's. Engine must be shipped
in a sturdy wooden crate. IMPORTANT: Click
or tap here for proper break-in (wear-in) oils and procedure for rebuilt
engines.
-
Rebuild YOUR engine: $800 - $1,000±, includes high quality
parts and labor, plus return shipping with Fastenal or FedEx Ground. Or you
can visit A-1 Miller's shop to drop off and pick up your engine to save on
crating and shipping charges. Price depends on extent of wear.
A 50% deposit may be required on certain engine
rebuilds. Deposit is non-refundable if labor and machine work is invested
in the engine, and parts are purchased for the engine. Remaining balance
of total amount is due upon completion of engine rebuild.
-
Parts and labor includes: Completely disassemble engine, thoroughly clean
the block & all associated parts; install new STD size piston/rings assembly
or bore cylinder and install new oversize piston/rings assembly (price will
be higher for the boring and with a new oversize piston and rings); regrind
valves and seats; regrind crank journal and resize connecting rod with the
factory recommended .0025" oil clearance or install new matching undersize
rod or fit connecting rod w/bearing
inserts; resurface cylinder head (on large disc sander or wide, flat
belt sander) to remove warpage and restore flatness; rebuild carburetor;
install tune-up kit; install a snug-fitting neoprene rubber oil seal in governor
shaft bushing to prevent seepage of oil; new gaskets and oil seals. If engine
has a broken connecting rod or rods, and internal damage has resulted, the
price will be slightly higher for additional parts and labor (if
rebuildable). Extra charge for A-1 Miller's
custom flywheel-trigger electronic ignition system. Price depends on type
of electronic ignition system installed.
Perform Professional Valve Job Only on Kohler Engine Model K361 Cylinder
Head. This service is for an engine that does not blow blue smoke out
the exhaust and burn oil. Performing a professional valve job restores full
compression, which allows the engine to start quicker, idle smooth without
stalling, and it will have maximum power at top governed speed.
Click or tap here for cylinder head bolt torque
specs.
-
Repair loose valve seat with
a new bronze valve seat. FYI - Bronze grips or adheres to aluminum much
better than steel. Plus, it's harder than cast iron. $75.00 each
for parts and labor, plus return shipping & handing.
-
Repair worn inside of valve guide with a bronze sleeve insert. $12.00
each for parts and labor, plus return shipping & handing.
-
Replace loose guide valve with an oversize O.D. guide. $40.00 each
for parts and labor, plus return shipping & handing.
-
Resurface head gasket mating surface to remove warpage and restore flatness.
$20.00 labor, plus return shipping & handing.
-
Perform valve job to OEM specs (regrind both valve faces and seats), install
valves, springs, retainers and keepers/locks/collets.
$35.00 labor, plus return shipping & handling.
Individual Gaskets and Complete
Gasket Kit to Reinstall K361 Cylinder Head on Engine -
-
Head Gasket. High quality
aftermarket. Discontinued from Kohler. Replaces Kohler part # 45 052 02-S.
$24.00 each, plus shipping & handling.
-
Rocker Arm Housing Gasket. Discontinued from Kohler. NOS OEM Kohler part
# 45 041 14-S. $14.40 each, plus shipping & handling.
-
Rocker Arm Cover Gasket. OEM Kohler part # 45 041 09-S. $6.45 each,
plus shipping & handling.
-
Two Pushrod Tube Rubber O-Rings s. High quality aftermarket. Replaces Kohler
part # 45 153 01-S. $1.00/two, plus shipping & handling.
-
Intake Tube Mounting Gasket. High quality aftermarket. Replaces Kohler part
# 271030-S. $1.00 each, plus shipping & handling.
-
All parts above total: $46.85, plus shipping & handling.
Complete engine rebuild gasket
set w/oil seals for Kohler K-series model K361 cast iron block single cylinder
OHV engine. High quality aftermarket. Discontinued from Kohler. Replaces
Kohler part # 45 755 06-S.
-
$50.00 each, plus shipping & handling.
High Quality Aftermarket K361
Valve. Can be used as intake or exhaust valve. Heat-treated, hardened steel.
Dimensions: head diameter: 1.437"; overall length: 4.165"±; face angle:
45º. Has 8mm chrome-plated stem. Requires 8mm
reamer to enlarge guide. OEM Kohler valve
keepers/locks/collets and retainers or rotators can
be used with this valve. OEM valve discontinued from Kohler. Replaces Kohler
part #'s 45 016 02-S (intake) and 45 017 01-S (exhaust).
-
Machined by A-1 Miller's. $50.00 each, plus shipping & handling.
NOTE: Before lapping in valves, it's best to have the
valve seats recut
or reground so the angle will be in correct alignment with the centerline
of the valve guides and so the valve face will make a full 360º contact
with the seat, or the valves will leak and the engine will lose compression,
be hard to start, be low on power and possibly make a popping sound through
the carburetor or out the exhaust. And be sure to set the clearances correctly,
too.
Valve Guides for Kohler engine
model K361 cylinder head.
-
Intake Valve Guide. OEM Kohler part # 45 316 02-S. $14.20 each, plus
shipping & handling.
-
Exhaust Valve Guide and Seal Kit. OEM Kohler part # 45 755 11-S.
$62.23 per kit, plus shipping & handling.
|
 Kohler KT-series and Magnum
opposed (flathead) twin cylinder engine models KT17, KT17 Series II, KT19,
KT19 Series II, MV16, M18, MV18, M20 and MV20. Professional rebuild to OEM
factory specifications @ up to 3,600 governed RPM for general lawn and garden
use or mild competition pulling. All sheet metal will need to be removed
before bringing or shipping engine to A-1 Miller's.
Engine must be shipped in a sturdy
wooden crate. IMPORTANT: Click or tap here
for proper break-in (wear-in) oils and procedure for rebuilt
engines.
-
Complete Engine Rebuild. Rebuild YOUR engine: $700 -
$1,000±, includes high quality parts and labor, plus return shipping
with Fastenal or FedEx Ground. Or you can visit A-1 Miller's shop to drop
off and pick up your engine to save on crating and shipping charges. Price
depends on model of engine and extent of wear.
A 50% deposit may be required on certain engine
rebuilds. Deposit is non-refundable if labor and machine work is invested
in the engine, and parts are purchased for the engine. Remaining balance
of total amount is due upon completion of engine rebuild.
-
Parts and labor includes: Completely disassemble engine, thoroughly clean
the block & all associated parts; install new STD size piston rings,
or bore cylinders and install new oversize piston/rings assemblies (price
will be higher for the boring and with a new oversize piston and rings);
regrind valves and seats, install new valve guides (if needed), resurface
cylinder heads (on large disc sander or wide, flat belt sander) to remove
warpage and restore flatness; rebuild carburetor, install new gaskets and
oil seals and install new tune-up kit. If engine was run out of oil and have
a broken connecting rod or rods, and internal damage has resulted, the price
will be higher for additional parts and labor (if rebuildable). If one or
both cylinders are scored and needs to be replaced with new piston and rings,
the price will be slightly higher. But cylinder scoring is rare. If either
cylinder wall and/or piston(s) is/are scored and needs replacing, the price
will be slightly higher. For these type of engines, we don't have the cylinders
bored oversize and install new oversize piston and rings because this would
be too cost prohibitive being we have good used cylinders and pistons in
stock. Add $150.00 for installation of A-1 Miller's
custom flywheel-trigger electronic ignition system. (KT-series engines
only.)
-
Perform Professional Valve
Job Only on opposed (flathead) twin cylinder Kohler KT-series and Magnum
engine models KT17, KT17 Series II, KT19, KT19 Series II, MV16, M18, MV18,
M20 and MV20. This service is for an engine that does not blow blue
smoke out the exhaust and burn oil. Performing a professional valve job restores
full compression, which allows the engine to start quicker, idle smooth without
stalling, and it will have maximum power at top governed speed. Labor includes:
regrind four valve faces and seats, lap in valves with valve lapping compound,
reset valve clearances to factory specifications (on short block only), resurface
both cylinder heads on a wide sanding belt to remove warpage and restore
flatness, reinstall intake manifold and governor linkage. And being some
valve guides wear beyond specifications, there will be an extra charge for
installing and reaming new guides, if needed. The sheet metal, muffler,
intake manifold and governor linkage will need to be removed before bringing
or shipping engine/short block to A-1 Miller's shop. To save on shipping
cost, only the cylinders (removed from crankcase) and valves can be shipped
in a USPS Large Flat Rate Box. Use two boxes - place one box inside the another
to double the strength, and use rigid packing material to prevent the cooling
fins from breaking off by making contact with each cylinder.
But the
short block must be shipped in a sturdy wooden crate. Or
if you're the kind of person who
don't trust delivery/shipping companies (mis)handling your high-dollar and
fragile merchandise, you can make the long drive to
A-1 Miller's shop to personally
drop off and/or pick up your carburetor, clutch assembly, cylinders, engine,
transaxle, tractor, etc. "The road to a friend's house (or shop) is never
long." A 50% deposit may be required on
certain engine rebuilds. Deposit is non-refundable if labor and machine work
is invested in the engine, and parts are purchased for the engine. Remaining
balance of total amount is due upon completion of engine
rebuild.
-
Perform Valve Job on 2 Cylinders Only. (Customer resets valve clearances.)
$70.00 labor, plus return shipping & handling.
-
Perform Valve Job on Short Block (sheet metal, intake manifold and governor
linkage removed). $200.00 labor, plus return shipping with Fastenal
or FedEx Ground.
-
And being some valve guides wear beyond specifications, there will be an
extra parts and labor charge for installing and reaming new guides, if needed.
 Kohler engine models K482, K532
and K582 opposed (flathead) twin cylinder (flathead) engines. Professional
rebuild to OEM factory specifications @ up to 3,600 governed RPM for general
lawn and garden use or mild competition pulling. All sheet metal will
need to be removed before bringing or shipping engine to A-1 Miller's.
Engine must be shipped in a sturdy
wooden crate. IMPORTANT: Click or tap here
for proper break-in (wear-in) oils and procedure for rebuilt
engines. NOTE: If your engine doesn't smoke out the exhaust and
burn oil, but looses power, then chances are all it needs is a professional
tune-up and valve job performed. We can do this instead of rebuilding your
engine. The price is $300.00 for parts and labor to perform the valve job,
plus return shipping.
-
Rebuild YOUR engine: $1,200±, includes high quality parts
and labor, plus return shipping with Fastenal or FedEx Ground. Or you can
visit A-1 Miller's shop to drop off and pick up your engine to save on crating
and shipping charges. Price depends on model of engine and extent of wear.
A 50% deposit may be required on certain engine
rebuilds. Deposit is non-refundable if labor and machine work is invested
in the engine, and parts are purchased for the engine. Remaining balance
of total amount is due upon completion of engine rebuild.
-
Parts and labor includes: Completely disassemble engine, thoroughly clean
the block & all associated parts; install new STD size piston rings,
or bore cylinders and install new oversize piston/rings assemblies (price
will be higher for the boring and with a new oversize piston and rings);
regrind valves and seats, install new valve guides (if needed), resurface
cylinder heads (on large disc sander or wide, flat belt sander) to remove
warpage and restore flatness; rebuild carburetor, install new gaskets and
oil seals and install new tune-up kit. If engine was run out of oil and have
a broken connecting rod or rods, and internal damage has resulted, the price
will be higher for additional parts and labor (if rebuildable). If one or
both cylinders are scored and needs to be bored oversize with new oversize
piston and rings, the price will be slightly higher.
 Kohler Command and Command
Pro V-Twin Engine Models CH18, CH20, CH22, CH23, CH25, CH620, CH621, CH640,
CH641, CH670, CH680, CH730, CH740, CH750, CH940, CH960, CH980, CH1000, CV16,
CV17, CV18, CV20, CV22, CV25, CV620, CV640, CV670, CV680, CV730 and CV740.
All sheet metal will need to be removed before bringing or shipping engine
to A-1 Miller's. Engine must be
shipped in a sturdy wooden crate. IMPORTANT:
Click or tap here for proper break-in (wear-in)
oils and procedure for rebuilt engines.
-
Rebuild YOUR engine: $700 - $1,000±, includes high quality
parts and labor, plus return shipping with Fastenal or FedEx Ground. Or you
can visit A-1 Miller's shop to drop off and pick up your engine to save on
crating and shipping charges. Price depends on model of engine and extent
of wear. A 50% deposit may be required on certain
engine rebuilds. Deposit is non-refundable if labor and machine work is invested
in the engine, and parts are purchased for the engine. Remaining balance
of total amount is due upon completion of engine rebuild.
 Generac V-Twin Engine Models
005682-0, 0E3480, 0E4328, 389cc, 5625-0, GH-220, GH-410, GN-190, GN-220,
GN-320, GN-360, GN-410, GT-760, GT-990, GTH-990, GTV-760 and GTV-990. NOTE:
As long as new replacement parts are available, these engines can be
rebuilt. All sheet metal will need to be removed before bringing or shipping
engine to A-1 Miller's. Engine
must be shipped in a sturdy wooden crate. IMPORTANT:
Click or tap here for proper break-in (wear-in)
oils and procedure for rebuilt engines.
-
Rebuild YOUR engine: $700 - $1,000±, includes high quality
parts and labor, plus return shipping with Fastenal or FedEx Ground. Or you
can visit A-1 Miller's shop to drop off and pick up your engine to save on
crating and shipping charges. Price depends on model of engine and extent
of wear. A 50% deposit may be required on certain
engine rebuilds. Deposit is non-refundable if labor and machine work is invested
in the engine, and parts are purchased for the engine. Remaining balance
of total amount is due upon completion of engine rebuild.
|
A-1 Miller's Kohler
Competition Pulling Engine Building | [Top
of Page]
 Garden tractor competition pulling
engine technology has changed a lot through the years. We can rebuild your
pulling engine with new technological parts so it'll produce more power,
be more competitive on the track and last longer than anticipated.
The below Ê are high output engines,
built and designed for competition pulling only, not general lawn and garden
use. No charging system included. 10hp (K241), 12hp (K301), 14hp (K321) or
16hp (K341) Kohler engines built by Brian Miller.
The "Built to the Max" Stock class engines runs at 4,000± governed RPM;
has a 9-1/2" cast flywheel with majority of fins removed then dynamically
and precision spin-balanced; high torque upper mount gear starter (mounting
bolts are below the starter motor); performance valve job with stock size
valves; A-1 Miller's reground/torque cam; medium performance valve springs;
#26 or #30 Kohler carburetor (depending on engine size) bored-out, reworked
and set up for gas; enlarged ports and polished (intake port made larger
only if it is smaller in diameter than the carburetor throttle bore); 2nd
or 3rd generation cylinder head milled .050"; connecting rod bored .020"
offset for piston pop out with bearing inserts. Also
included are: flywheel shroud (not chrome plated), cast iron or aluminum
oil pan, bolt-on header pipe and conventional Kohler point ignition system
installed with ignition timing preset. And being there is no oil filter on
Kohler cast iron block engines, an oil drain plug with a very strong
rare earth/neodymium magnet, or a very strong
rare earth/neodymium magnet will be glued to the inside bottom of the oil
pan or engine base to attract and remove
ferrous
metallic wear fragments from the motor oil to clean the oil so the engine
will last much longer. Because some of the ferrous metal wear fragments settle
to the bottom of the oil pan or engine block and do not drain out with the
oil when performing an oil change, even when the oil is hot. An innovative
and ingenious concept by Brian Miller because nobody else advertise this
trick online for a competition pulling engine.
A-1 Miller's rebuilt engines will be painted with high quality gloss black,
unless the customer specifies a different color or no paint at all. When
you receive the engine, install it in the tractor, add motor oil to the proper
level, install the fuel hose, add fuel, connect the ignition and starter
wires, connect the throttle controls, and the engine will be ready to start.
Carburetor adjustments will be initially preset, but due to the altitude
level, barometric pressure and air temperature, final idle speed, idle air/fuel
mixture and high speed air/fuel mixture adjustments may need to be made after
the engine is started and warmed up. It'll have no charging system. Use a
remote battery charger to recharge the battery before each pulling event.
4,000 RPM "Built to the Max" Stock-Appearing Competition Pulling Engines
below - built for competition pulling only and to your pulling association/club's
sanctioning rules. In addition to all the essentials, prices below include
a heavy (ring gear) steel flywheel and new high torque gear starter motor
(Kohler style). Custom
crank trigger
ignition or $100 to build a sturdy wooden shipping crate and shipping
& handling is extra charge. Or you can visit A-1 Miller's shop to drop
off and pick up your engine to save on crating and shipping charges.
IMPORTANT: Click or tap here for proper break-in
(wear-in) oils and procedure for rebuilt engines.
-
Build to the Max 10hp Kohler Engine. Dyno'd at 15hp± @ 4,000 RPM and
19± ft. lbs. of torque @ 4,000 RPM. Horsepower/torque and price depends
on how the engine is built. (Past engines test ran on A-1 Miller's personal
dynamometer with accurate results.)
-
If customer provides engine block and most parts. $2,000±. NOTE:
All parts must be new or in good, usable condition.
-
If A-1 Miller provides engine block and all parts. $3,000±.
-
Build to the Max 10hp 27 CID Hybrid Stroker Engine. Dyno'd at 19hp±
@ 4,000 RPM and 25± ft. lbs. of torque @ 4,000 RPM. (Past engines
test ran on A-1 Miller's personal dynamometer with accurate results.)
-
If customer provides engine block and most parts. $2,300±. NOTE:
All parts must be new or in good, usable condition.
-
If A-1 Miller provides engine block and all parts. $3,100±.
-
Build to the Max 12hp Kohler Engine. Dyno'd at 22hp± @ 4,000 RPM and
29± ft. lbs. of torque @ 4,000 RPM. Horsepower/torque and price depends
on how the engine is built. (Past engines test ran on A-1 Miller's personal
dynamometer with accurate results.)
-
If customer provides engine block and most parts. $2,000±. NOTE:
All parts must be new or in good, usable condition.
-
If A-1 Miller provides engine block and all parts. $3,000±.
-
Build to the Max 14hp Kohler Engine. Dyno'd at 25hp± @ 4,000 RPM and
33± ft. lbs. of torque @ 4,000 RPM. Horsepower/torque and price depends
on how the engine is built. (Past engines test ran on A-1 Miller's personal
dynamometer with accurate results.)
-
If customer provides engine block and most parts. $2,000±. NOTE:
All parts must be new or in good, usable condition.
-
If A-1 Miller provides engine block and all parts. $3,000±.
-
Build to the Max 16hp Kohler Engine. Dyno'd at 28hp± @ 4,000 RPM and
37± ft. lbs. of torque @ 4,000 RPM. Horsepower/torque and price depends
on how the engine is built. (Past engines test ran on A-1 Miller's personal
dynamometer with accurate results.)
-
If customer provides engine block and most parts. $2,300±. NOTE:
All parts must be new or in good, usable condition.
-
If A-1 Miller provides engine block and all parts. $3,300±.
Hot Stock or Sport Stock Competition Pulling Engines - built to your pulling
association/club's sanctioning rules. The Hot Stock class engines has
an OEM Kohler block; runs at wide open throttle (no governor); 9-1/2" 25
lb. steel flywheel; high torque upper mount gear starter (mounting bolts
are below the starter motor); A-1 Miller's Hot Stock/Stock-Altered welded-up
and reground cast camshaft; single high performance valve springs; performance
valve job with stock size valves; #26 or #30 Kohler carburetor (depending
on engine size) bored-out, reworked, set up for gas with
bottom main fuel
adjuster; enlarged ports and polished (if the intake port is smaller
in diameter than the carburetor throttle bore); 2nd or 3rd generation cylinder
head milled .050"; connecting rod bored .020" offset for piston pop out with
bearing inserts; rotating assembly (crankshaft and connecting rod/piston
assembly) precision spin-balanced to reduce engine vibration. Also included
are: flywheel shroud (not chrome plated), cast iron oil pan, bolt-on header
pipe and conventional Kohler point ignition system installed with ignition
timing preset. Upon receiving engine, install in tractor, add fluids and
engine will be ready to start after all connections are made. Carburetor
adjustments will be initially preset, but due to the altitude level, barometric
pressure and air temperature, final adjustments may need to be made after
engine is started. Prices below Ê do
not include $100 for crating and shipping & handling. You can visit A-1
Miller's shop to drop off and pick up your engine to save on crating and
shipping charges. IMPORTANT: Click or tap
here for proper break-in (wear-in) oils and procedure for rebuilt
engines. Add $110.00 - $152.00 for
installation of A-1 Miller's custom
crank trigger or flywheel
triggered electronic ignition system.
-
Hot Stock or Sport Stock - 12hp Kohler engine block. Dyno'd at 48hp±
and 39± ft. lbs. of torque @ 6,500 RPM. (Past engines test ran on
A-1 Miller's personal dynamometer.)
-
If customer provides engine block and most parts. $2,200±. NOTE:
All parts must be new or in good, usable condition.
-
If A-1 Miller provides engine block and all parts. $3,500±.
-
Hot Stock or Sport Stock - 14hp Kohler engine block. Dyno'd at 50hp±
and 41± ft. lbs. of torque @ 6,500 RPM. (Past engines test ran on
A-1 Miller's personal dynamometer.)
-
If customer provides engine block and most parts. $2,400±. NOTE:
All parts must be new or in good, usable condition.
-
If A-1 Miller provides engine block and all parts. $3,500±.
-
Hot Stock or Sport Stock - 16hp Kohler engine block. Dyno'd at 53hp±
and 44± ft. lbs. of torque @ 6,500 RPM. (Past engines test ran on
A-1 Miller's personal dynamometer.)
-
If customer provides engine block and most parts. $2,600±. NOTE:
All parts must be new or in good, usable condition.
-
If A-1 Miller provides engine block and all parts. $4,000±.
NOTE: Price will be higher if an aftermarket block is used.
Competition Pulling Engine Freshening
Service
Ê This service
is for pulling engines only that have been previously built, and needs the
basic parts and labor to revive the power. It is not a complete engine rebuild.
A typical pulling engine will last an average of 25 pulls or 3 years of use.
After that, the piston rings become worn, and the engine may lose power when
under load and puff gray/blue smoke out the exhaust and/or crankcase breather
vent. When this happens, it's time for a freshening job. If interested, we
will need an updated copy of your association/club's engine rules so when
the engine is freshened, it will be legal in its class, but still competitive.
Click or tap here for proper break-in (wear-in)
oils and procedure for rebuilt engines. Add
$110.00 - $152.00 for installation of A-1 Miller's custom
crank trigger or flywheel
triggered electronic ignition
system. (For competition pulling
only.) A 50% deposit may be required
on certain engine refresh jobs. Deposit is non-refundable if labor and machine
work is invested in the engine, and parts are purchased for the engine. Remaining
balance of total amount is due upon completion of engine
refresh. [Top of Page]
Freshen Stock "Built to the Max" 10-16hp 4,000± RPM governed
Kohler competition pulling engine. Includes install new high quality
ring set or piston and rings; clean and reseat valves or perform 3-angle
high flow performance valve job; install new bearing
inserts; clean, rebuild or bore-out/rework carburetor; mill the cylinder
head; install our reground 4,000 RPM torque performance camshaft; new gaskets
and oil seals. Total price depends on which parts & how much labor the
engine needs, plus return shipping with Fastenal or FedEx Ground.
Freshen Hot-Stock 12-16hp Kohler engine. Includes install new high
quality ring set or piston and rings; clean and reseat valves or perform
3-angle high flow performance valve job; new bearing
inserts; clean, rebuild or bore-out/rework carburetor; if needed, install
our welded up and reground Hot-Stock/Stock-Altered performance camshaft;
new gaskets and oil seals. Total price depends on which parts & how much
labor the engine needs, plus return shipping with Fastenal or FedEx Ground.
Please contact A-1 Miller's if you're interested in
purchasing any of the parts or items in this website. If you need a part
or parts that's not listed in this website, please contact A-1 Miller's and
we'll see if we can get it at a reasonable price. | [Top
of Page] |
|
Break-In (Wear-In) Oils and Procedure for Ordinary
Rebuilt (Lawn and Garden) Engines -
First of all, full synthetic/organic motor oil will allow an engine to run
cooler and last longer. But the rule of thumb for different types of motor
oils are: Full synthetic motor oil is mainly for high performance/racing
engines that operate at high RPMs for a long time. Synthetic blend motor
oil, which is a blend of about 50% organic and 50% petroleum, is for engines
that occasionally operate at high RPMs, but also operate at normal speeds.
And conventional/petroleum motor oil is safe to use just for engines that
operate at normal speeds at all times.
 Break-In (Wear-In) Oils and Procedure for Fresh-Built
Competition Pulling Engines -
For proper break-in (wear-in) of a rebuilt or fresh built
pulling engine, use a high quality conventional (petroleum-based) SAE 30
weight motor oil containing a high zinc content anti-wear additive, such
as
ZDDP
(Zinc
dithiophosphate), which places a protective coating between all internal
moving parts, will get hot, create a wear pattern and produce a hardened
surface, especially flat tappet lifters and camshaft lobes. Don't be afraid
to run a fresh-built or freshly rebuilt pulling engine at speeds it is designed
for. Just run the engine normally for 4-5 pulls.
Do not allow the engine to idle at a slow speed
(below 1,200 RPM) for a long period of time to break it in! It needs to run
at full governed speed (3,200 or 3,600 RPMs) so the oil dipper on the connecting
rod can splash the crankcase oil up and thoroughly lubricate/coat critical
moving parts. And it's good to set the idle on the high side regardless of
the type of oiling system (splash or oil pump) so the flywheel fins will
blow more cool air over the engine. Then drain the oil while
it's hot, and either continue to use ordinary SAE 30 oil, or switch to a
quality 20W50 synthetic blend or full synthetic oil. Use no oil additives.
Change the oil every 25 pulls or once a year. Synthetic-blend oils get about
half as hot as conventional oils. But full synthetic oils don't get near
as hot as conventional oils do. It's more slippery and remains cooler even
after the engine have been in operation for several hours to better protect
internal parts for longer engine life.
If the tractor is geared correctly, the pulling engines I build should not
run out of power at the end of the pull. It should spin the tires. But there's
some things that needs to be checked after a few pulls as the engine breaks-in
and parts wear into each other. For gas fuels, the ignition timing needs
to be set at 22º BTDC. And make sure the high speed air/fuel mixture
screw is set so the engine runs smooth at high RPM. Also, if a
high-output/performance ignition coil is used, it requires two standard capacity
(Kohler) condensers/capacitors or one heavy duty, high capacity/performance
condenser/capacitor. This is so the coil will produce more voltage. And with
a high-output/performance coil, the spark plug gap can be set at .060". With
an ordinary coil, it should be set at .035". The valve to lifter clearances
may need to be reset at .010" for the intake and .014" for the exhaust.
Furthermore, when a new or rebuilt engine needs to "break-in", what the term
"break-in" actually means is the moving internal parts that make contact
with each other needs to "wear-in" with each other so they'll produce a wear
pattern and last longer. Any new or rebuilt engine, rather if it's for general
lawn and garden use or for competition pulling, needs to fully break-in (wear-in)
for it to produce full power. Rings don't "seat," they break-in (wear-in),
or wear-in with the cylinder wall, and they wear-in quickly. But the valves
are the parts that needs to "seat." Being the valve faces and seats have
different angles (30º/31º or 45º/46º, respectively),
the valve faces needs to wear into the seats to seal in the compression 100%.
Wear-in will produce a 30½º or 45½º angle on both the
matching valve face and seat. The harder material the valves are made of,
the longer it takes for them to "seat" or wear-into the seats. Some pullers
tell A-1 Miller's that the engines I built for them run better every time
they pull them. I remember a few years ago when I performed a valve job on
my truck engine. It ran good and produced plenty of power, but I noticed
after about 1,000 or so miles, it produced a little more power. I realized
that this is because the valve faces wore into the seats, forming a perfect
seal. So again, a fresh-built pulling engine will not produce full power
the first few times it's ran. Go here for more information:
Valvoline.com
FAQs Motor Oil Car Racing Oil. [Return
to Previous Section, Paragraph or Website] |
If shipping an engine, and if the crated engine weighs no more than 150 lbs.,
use only
Fastenal or
FedEx Ground for dependability. The average crated cast
iron block Kohler engine weighs just under 150 lbs. Use this website to calculate
the shipping cost for your engine:
FedEx Rates and Transit Times. Contact your local
Fastenal or
FedEx Ground shipping center for more details and to schedule
a pickup or drop off the crated engine at your local
Fastenal or
FedEx Ground shipping center.
Fastenal and
FedEx Ground are the only reasonably-priced shipping service
that I know of for items up to 150 lbs. US Mail only ship up to 70 lbs. And
FedEx Freight would cost almost as much as an engine is worth. If your engine
is too heavy to go with FedEx Ground, partially disassemble it and send the
lightweight parts in a USPS Large or Medium Flat Rate Box, and then send
the main short block with FedEx Ground, the crated engine can be shipped
through Fastenal. This also works better to save money on shipping costs.
You can visit A-1 Miller's shop to drop off and pick up your engine to save
on crating and shipping charges.
When the work is completed, I'll contact you with the total including return
shipping & handling. For payment options for parts ordered or services
performed, or to make a donation to my websites, I accept cash (in person),
USPS Postal Money Orders, cashier's checks, business checks, MasterCard,
VISA, Discover, American Express (please add 2.5% to the total for the
credit/debit card processor's surcharge),
Western
Union Money Transfer or
MoneyGram Money Transfers.
(If the engine is for a specific purpose and parts must be special ordered,
full payment will be required right after your order is placed or your
debit/credit card will be charged for the full amount or as a deposit.) Or
you can pay A-1 Miller's through PayPal. My PayPal account name is my email
address, and be sure to mention in PayPal a description of what the payment
is for. If sending a money order or cashier's check, please include a note
in the envelope with your name, complete mailing address, phone number and
a description of what the payment is for. My mailing address and phone number
are below Ê. And I will ship your rebuilt
engine/parts to you as soon as I receive your payment.
To ship a transaxle, this is easier. They don't require an enclosed crate.
Just place the transaxle on the center of a
shipping pallet (of the appropriate size) and stretch wrap
(use low-cost ratchet nylon tie-downs) to securely fasten it to the pallet.
Use at least 6 layers of stretch wrap or several tie-downs. This should work
really well. The shipping weight of a Cub Cadet cast iron case transaxle
when strapped to a wooden pallet is approximately 215 lbs.
[Return To Previous Paragraph, Section
or Website]
To make a payment to A-1 Miller's through PayPal, go to PayPal's secure website
( https://www.paypal.com/ ) and click
on Send and Request -> Pay for goods or services. Type in my email address,
or copy and paste this: pullingtractor@aol.com, the amount and follow the
directions. Be sure to mention in PayPal a description of what the payment
is for. After you've finished, PayPal will send A-1 Miller's an email notifying
me that you have made a payment to A-1 Miller's for the product(s) or services
and amount entered. Then I go to their website and direct PayPal to deposit
the money in my bank account. And I will send the parts to you as soon as
I receive your payment. But I may have to order some of the parts if they're
not in stock, which should take a few days. In that case, I will send you
the parts as soon as they come in. PayPal protects your financial privacy
and security. With PayPal, privacy is built in. It's a way for you to pay
without exposing their financial information.
Phone:
1-573-256-0313 (shop) | 1-573-881-7229 (cell; text or when leaving a voice
message, please speak slowly and clearly). Please call Monday-Friday, except
holidays, 9am to 5pm, Central time zone. If no answer, please try again later.
(When speaking with Brian, please be patient because I
stutter.)
E-mail: pullingtractor@aol.com.
When you call, text, email or visit our shop, you will be dealing directly
with the owner for the best customer service. A-1 Miller's shop is open to
the public from 9am to 5pm, including weekends, except holidays. Please call
before coming so I'll be here waiting for your arrival.
Directions to our shop |
1501 West Old Plank Road, Columbia, MO - Google Maps or
Map of 1501 West Old Plank
Road, Columbia, MO by MapQuest. If you're the kind of person who don't
trust delivery/shipping companies (mis)handling your high-dollar and fragile
merchandise, you can make the long drive to
A-1 Miller's shop to personally
drop off and/or pick up your carburetor, clutch assembly, engine, transaxle,
tractor, etc. "The road to a friend's house (or shop) is never long." (We're
planning to relocate to other property with a bigger and better shop so we
can provide many more high quality parts and professional services.)
High Quality Inductive
Handheld Small Engine Wireless Tachometer. A tachometer is required in
setting the correct RPMs (normally 3,200 or 3,600 maximum for small engines)
of an engine to prevent from over-revving and possible damage to the engine
or dangerous flywheel explosion. Very accurate. For gas/spark ignite engines
only. Works with magneto and battery-powered ignition systems. Very accurate.
This handheld analog tachometer works great for checking/setting the RPM
on various small engines in the shop, and/or for checking/setting the RPM
[tech] on stock governed competition pulling engines. Hold sensor (antenna)
close to spark plug wire for reading. Operates off a self-contained replaceable
9 volt battery. Has built-in battery voltage check. Reads up to 5,000 RPM
on the low scale, and 15,000 RPM on the high scale.
High Quality Inductive Small
Engine Tachometer/Hour Meter. A tachometer is required in setting the
correct RPMs (normally 3,200 or 3,600 maximum for small engines) of an engine
to prevent over-revving and possible damage to the engine or dangerous flywheel
explosion. Very accurate. Can be hand-held to temporarily set engine RPM
or can be surface-mounted and secured with two screws. mounted to monitor
engine RPM at all times. Large 3/8 inch LCD display. Works with all spark
ignition engines by selecting engine type using S1 and S2 buttons. Works
with magneto and battery-powered ignition systems. If tachometer does
not turn on automatically as soon as engine starts, press and hold the two
buttons at the same time. Instructions included. Tachometer reads up
to 99,999 RPM. Hour meter reads up to 9999:59 hours/minutes then resets to
Zero. Programmable maintenance hour setting with service icon, a reminder
when to change oil or other service. Can be manually reset to Zero hours.
Programmable maintenance hour setting with service icon, a reminder when
to change oil or other service. Easy installation: Single wire wraps around
spark plug wire and secured with two supplied nylon zip-ties. No wire terminal
connections required. Dimensions: 2" wide x 1-3/4" depth x 3/4" height.
High Quality Digital
Tachometer/Proximity Sensor Kits. A tachometer is required in setting
the correct RPMs (normally 3,200 or 3,600 maximum for small engines) of an
engine to prevent from over-revving and possible damage to the engine or
dangerous flywheel explosion. Choice of a
RED or
BLUE numeric display. Will work with
single- or twin-cylinder small engines or multi-cylinder automotive engines,
gas or diesel. The great thing about this type of tachometer is it needs
no setup. It displays accurate RPMs as soon as the engine cranks over to
start. Displays up to 9,999 RPM. Very accurate. Tachometer returns to zero
[0000] when engine is shut down. Operates totally independent of the ignition
system. Can be used for lawn & garden equipment or competition pulling
engines. Designed to be permanently mounted to monitor engine RPM at all
times. Tachometer can be in-dash or panel-mounted. This precision digital
tachometer operates with external power and on the same principle as my
Aluminum Locking Set Screw Collar
w/Embedded Trigger Magnet. Use with hall effect proximity sensors only.
$15.00 each, plus shipping & handling.
Cylinder head gasket. Fits
Kohler engine models K141, K160/K161, K181 and M8. Approximately .050" compressed
thickness. Doesn't need to be retorqued again once hot.
Cylinder head gasket. Fits
Kohler engine models K241/M10, K301/M12 and K321/M14. Approximately .050"
compressed thickness. Doesn't need to be retorqued again once hot.
Cylinder head gasket. Fits
Kohler engine models K341/M16. Approximately .050" compressed thickness.
Doesn't need to be retorqued again once hot.
Cylinder head gasket. Fits
Kohler engine model K361. Approximately .050" compressed thickness with steel
fire ring. Doesn't need to be retorqued again once hot.
Cylinder Head Gasket. Fits
Tecumseh engine models VH80, HH80, VH100 and HH100. Approximately .050"
compressed thickness. Doesn't need to be retorqued again once hot. Tecumseh
part # 32000B.
Cylinder head gasket. Fits
Kohler engine models MV16, KT17, KT17 Series II, KT19, KT19 Series II, M18,
MV18, M20 and MV20. Approximately .050" compressed thickness. Doesn't need
to be retorqued again once hot.
Cylinder head gasket. Fits
Kohler engine models K482, K532 and K582. Approximately .050" compressed
thickness. Doesn't need to be retorqued again once hot.
Complete engine rebuild
gasket sets w/oil seals. Fits Kohler engine models K141, K160/K161 and K181.
NOTE: These gasket sets can also be used on the Kohler M8 engine by applying
Complete engine rebuild
gasket sets w/oil seals. Fits Kohler engine models K241, K301 and K321.
NOTE: These gasket sets can also be used on the Kohler M10, M12 and M14
engines by applying
Complete engine rebuild
gasket sets w/oil seals. Fits Kohler engine model K341. NOTE: These gasket
sets can also be used on the Kohler M16 engine by applying
Complete engine rebuild
gasket sets w/oil seals and
Complete engine rebuild
gasket set w/oil seals. Fits Kohler engine models K482, K532 and K582.
Discontinued from Kohler. Replaces Kohler part # 48 755 33-S. NOTE: The
gaskets and oil seals for the Kohler K482, K532 and K582 engines will not
fit the K660/K662 engines.
Exhaust Port/Flange Gaskets for various Kohler engine models
K141, K160/K161, K181 and M8. Measure accurately from center of bolt holes
on engine block for correct part.
Exhaust Port/Flange Gaskets.
Fits Kohler engine models K241/M10, K301/M12 and K321/M14. 1-3/4" bolt hole
spacing.
Exhaust Port /Flange Gasket.
Fits Kohler engine model K361. 2-1/16" bolt hole spacing.
Exhaust Manifold-to-Cylinder
Mounting Gaskets. Fits Kohler flathead twin cylinder engine models KT17,
KT17 Series II, KT19, KT19 Series II, MV16, M18, MV18, M20 and MV20. 1-3/4"
offset bolt hole spacing.
Exhaust Manifold to Block
Mounting Gasket. Fits Kohler opposed (flathead) twin cylinder engine models
K482, K532 and K582.
Drill and tap two 5/16-18 UNC
bolt holes in exhaust mounting flange to install custom-made bolt-on exhaust
system or header pipe flange. NOTE: Crankshaft and bearing plate will
need to be removed from engine block so I can fasten block directly to table
or in a V-shaped fixture to the table of my milling machine. An
innovative concept by Brian Miller, because nobody else advertise this type
of service for a Kohler engine block.
Resurface exhaust mounting flange
to ensure 100% sealing of header flange and to prevent flange from loosening
from block (due to rusted rough surface). NOTE: Crankshaft and bearing
plate will need to be removed from engine block. Then with block fastened
directly to table or in a V-shaped fixture fastened to the table of my milling
machine, I make several passes with a grinding stone to resurface end of
exhaust port. An innovative concept by Brian Miller, because
nobody else advertise this type of service for a Kohler engine
block.
High Quality
Durable Mufflers. Fits Kohler engine models K141, K160/K161, K181/M8, K241/M10,
K301/M12 and K321/M14, and Briggs & Stratton, Tecumseh and various other
makes and models of larger small engines. Each coated with weather-proof
and heat-resistant paint. Dimension of mufflers: approximately 3-1/4" x 3-1/4".
Bolt-On Header Pipe Kits. Fits Kohler Engine Models K241/M10,
K301/M12 and K321/M14. For competition pulling engines with stock-size
or oversize valves running at 4,000 RPM or at wide open throttle. High grade
durable and galvanized-coated mild steel pipe resists rust and will not discolor,
even from exhaust heat. Has a 90º, 4" radius bend; each pipe extends
8" from exhaust port to midway of bend for plenty of hood clearance and measures
18" upward from midway of bend. Kit includes 1-5/16" O.D. x 1.260" I.D. x
24" length header pipe, 2-1/2" O.D. x 1-5/16" I.D. x 5/16"± thickness
round mounting flange and two 5/16-18 UNC Allen head bolts. Flange fastens
directly to engine block.
Steel Exhaust
Pipe or Header Pipe Mounting Flange. Fits Kohler engine models K141, K160/K161,
K181 and M8 with 1-9/16" or 1-11/16" exhaust port bolt hole spacings. Please
specify if need for 1-9/16" or 1-11/16" bolt hole spacing. If no bolt holes
exist next to exhaust port, two 5/16-18 UNC (coarse thread) threaded holes
will need to be
Two 5/16-18 UNC (coarse thread)
Hex Socket (Allen) Head bolts for above È
flange.
Exhaust Pipe or Header Pipe
Mounting Flanges. Each made of mild steel. No gasket is required. Fastens
directly to engine block with
Heavy Duty Exhaust Pipe or Header
Pipe Mounting Flange. Fits Kohler engine models K341/M16. If no bolt holes
exist next to exhaust port, two 5/16-18 UNC (coarse thread) threaded holes
will need to be
Two 5/16-18 UNC (coarse thread)
stainless stain hex-head bolts with flat washers for above
È flange.
Solid motor mounts are an
alternative to replacing deteriorated OEM "ISO" rubber engine mounts, which
is usually associated with a damaged "flexible" 3-pin clutch drive plate
and damaged clutch components. These fit IH Cub Cadet "Quiet Line" garden
tractor models 482, 800, 1000, 1100, 1200, 1204, 1210, 1211, 1250, 1282,
1340, 1450 and 1650. If the engine in your tractor is mounted on angled cradles
with rubber mounts between the cradles and tractor frame, then these are
what your tractor need.
Direct replacement for OEM
ISO-rubber mounts with no modifications to the tractor whatsoever. The solid
motor mounts install between the engine mounting cradles and tractor frame.
A thick flat washer fastens on top of the cradles. Torque the bolts at 35
ft. lb. Can be easily removed if rubber mounts are desired instead.
(Added
3/17/20) OEM Cub Cadet Engine Rubber ISO-Mount Kit. Replace deteriorated
rubber ISO-mounts to lessen chances of clutch drive plate breakage and so
less wear will occur to the clutch assembly. Designed for IH-built Cub Cadet
"Quiet Line" models 800, 1000 and 1200, including models 1250, 1450 and 1650
with a hydrostatic disconnect attachment. All of these models have the engine
mounted on rails with ISO rubber mounts. These rubber mounts can also be
adapted for use on many other makes and models of small engine equipment
to reduce engine vibration throughout the frame.
Do not use a cardboard box alone
the ship a heavy engine! Crate it well and any other parts with it securely
so they won't get damaged or lost in shipping. A sturdy and well-constructed
wooden crate can be ordered from:
Coming Soon - Detailed Illustrated
Plans on How to Construct a Professional Pull-Back and Self-Propelled Garden
Tractor Pulling Sled. FYI - The
professionally-built self-propelled pulling sled is the only one I've ever
built (click the picture to the right to see a larger image of this sled),
and I got it right the first time, with very few changes or modifications
that had to be made to it. I guess I'm just one of those kind of guys that
knows what he's doing. Pullers really like pulling our sled, too. They say
it's the best sled they've ever pulled. (Not bragging, just stating a fact.)
By the way - Track Master sled is engineered so well (by Brian Miller), that
other sled builders/owners have copied my well thought-out and proven design.
And I do appreciate them acknowledging my intelligence. Anyway, I have lots
of work to do in my shop and I work on the sled plans in my spare time. As
soon as my plans with an inventory list of parts to use are perfected, I'll
post the update in my websites with the prices of the plans. Remember -
Perfection takes time. If it's worth having, it's worth waiting for. Also,
I plan to acquire a bigger shop and may build high quality garden tractor
pulling sleds in the future to offer for sale. Please call 573-256-0313 (shop)
or 573-881-7229 (cell; text or voice message), or email
-
